Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013)
Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013) is backordered and will ship as soon as it is back in stock.
Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013) is backordered and will ship as soon as it is back in stock.
Description
Description

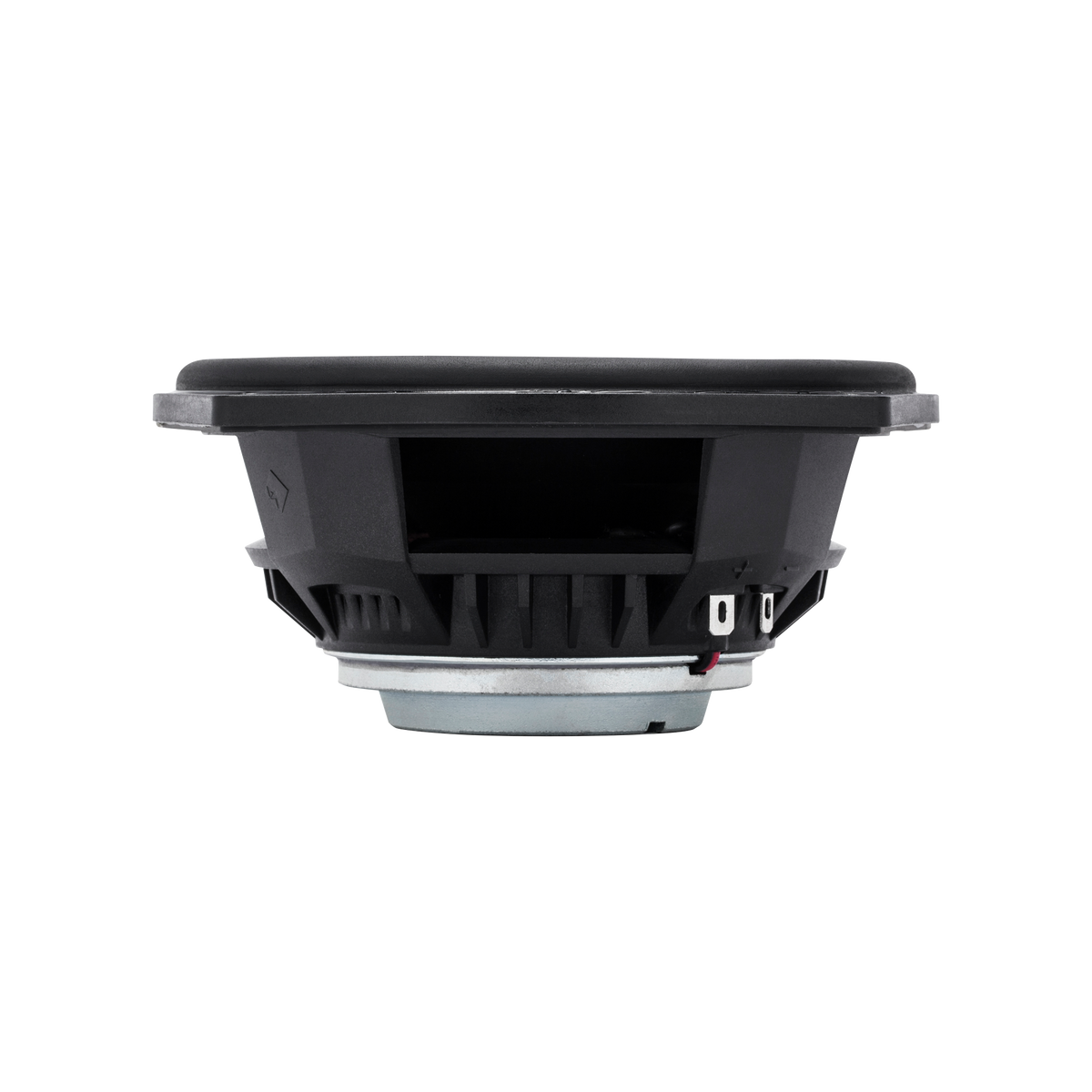

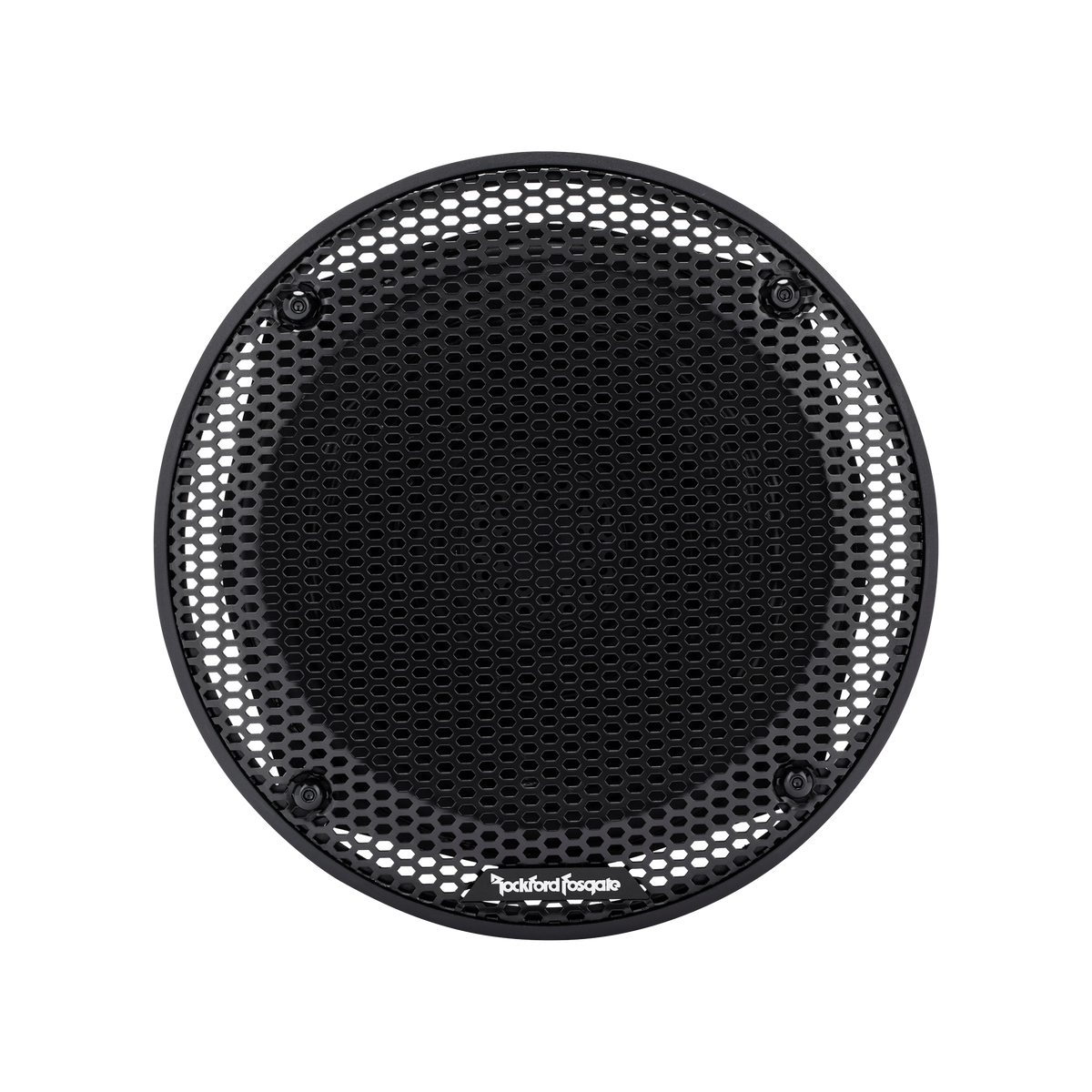

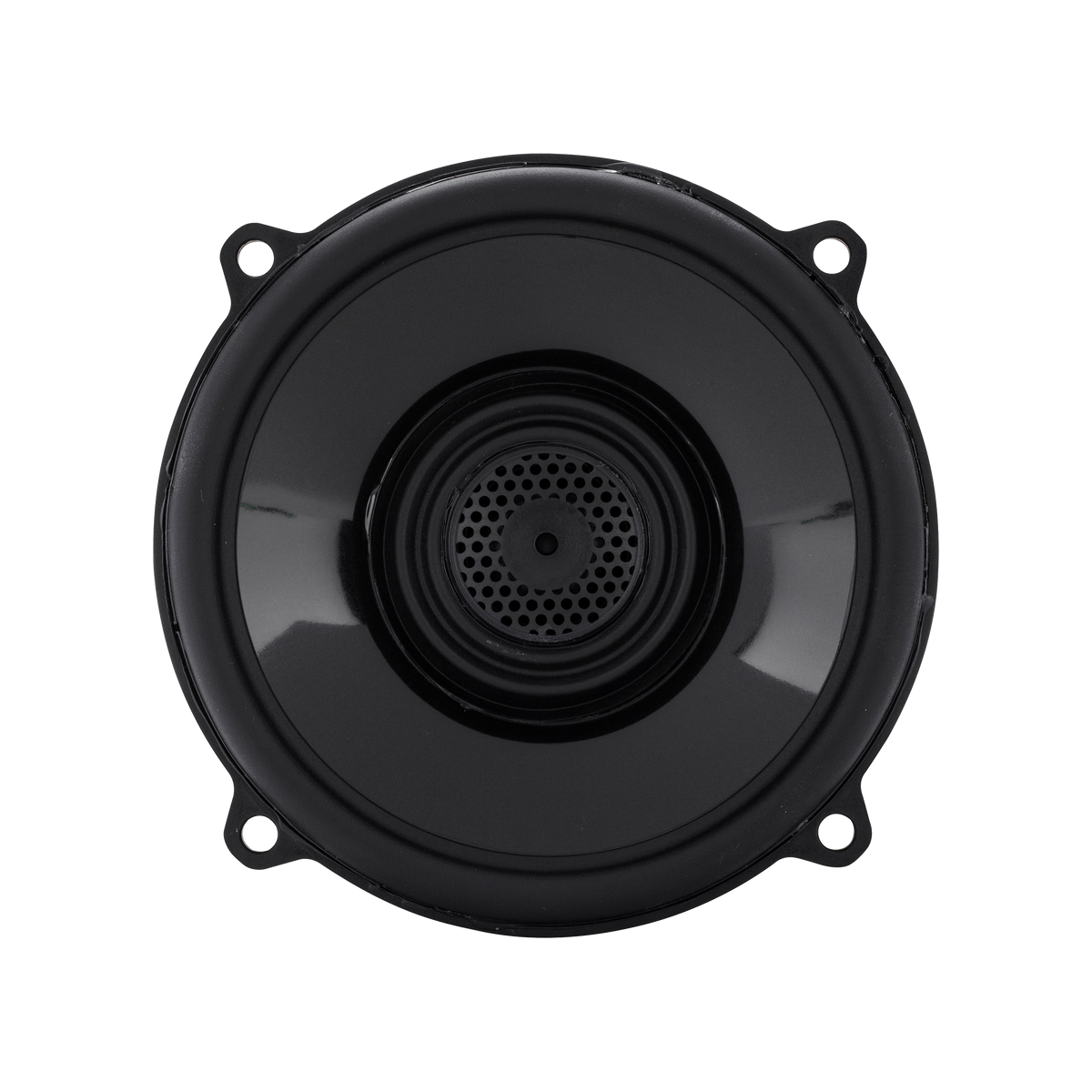

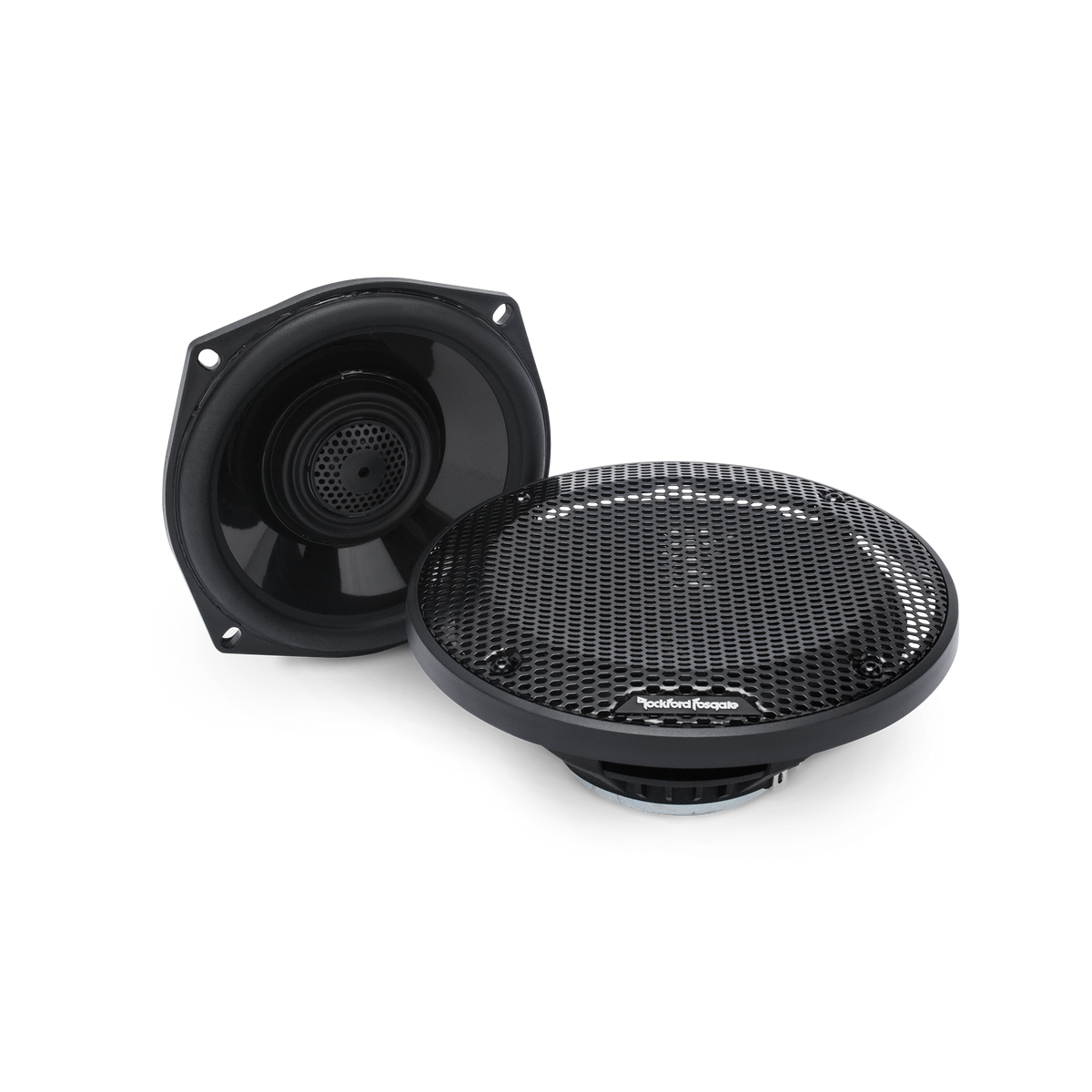

The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 - 2013 model year Harley-Davison® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.

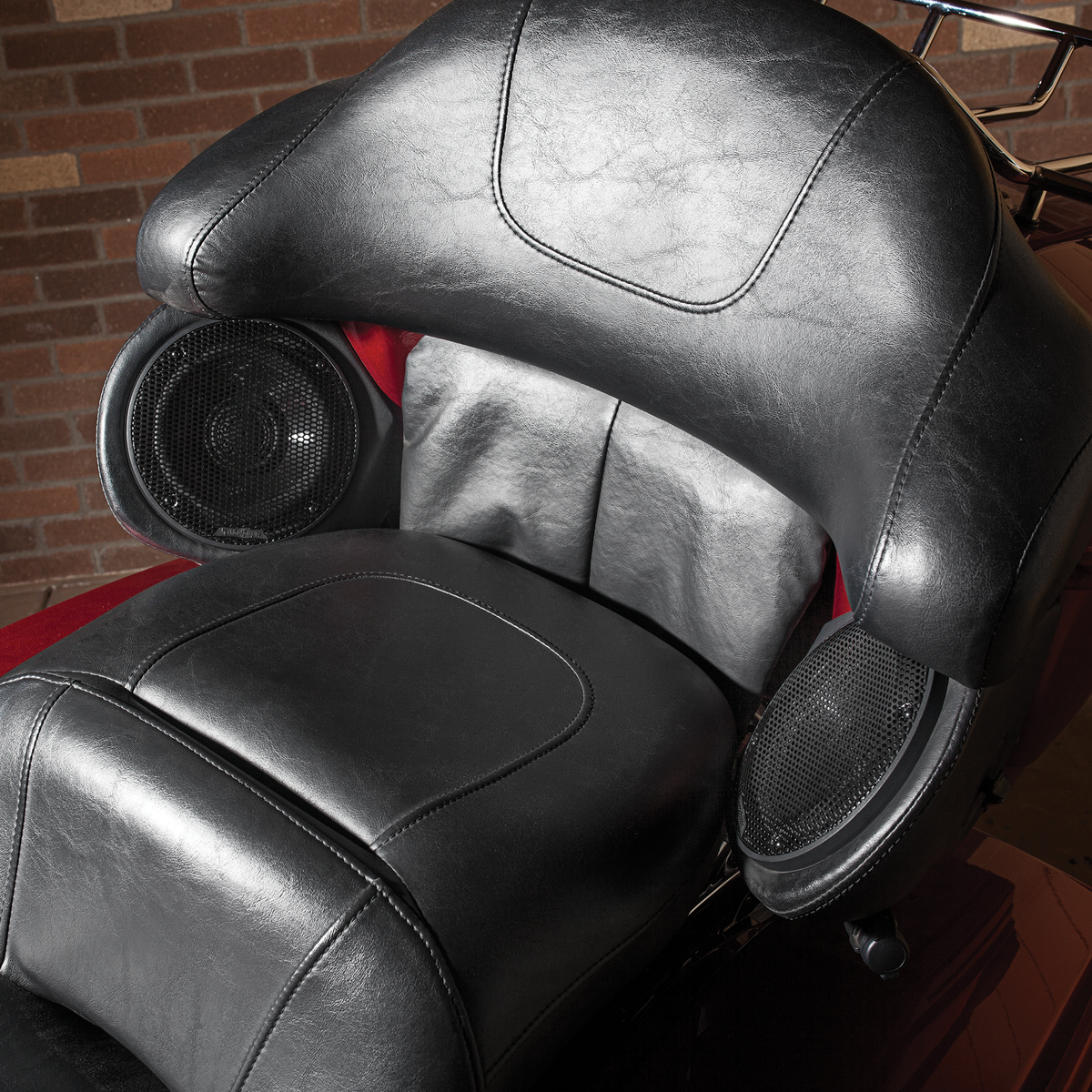

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Manufacturer warranty: 2 years
- NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
- Element Ready design that is weather and water resistant
- Carbon Fiber Reinforced Polypropylene Cone
- Santoprene VAST Surround
- Co‐Molded Cone and Surround
- Poly‐Cotton Spider
- Santoprene front isolation spider
- High Power 35mm Voice Coil
- Ultra‐Efficient Neodymium Ring Magnet Motor
- Ultra‐high temperature glass reinforced polymer frame
- Integrated Spade Terminals
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Ultra-efficient 25mm proprietary film dome tweeter
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Low Profile Coaxial Tweeter Design
- Discreet (Hidden) Tweeter Wire
- Designed for 1998‐2013 Harley-Davidson® Rear Tour-Pak® Locations
Specifications
| Power Handling (MAX) | 130 Watts MAX |
|---|---|
| CEA-2031 Compliant |  |
| Voice Coil Diameter (in/mm) | 1.40" (35.6 mm) |
| Speaker Type | 2-Way Coax |
| Frequency Response (Hz) | 64 Hz - 20 kHz |
| Nominal Impedance (Ohms) | 4-Ohm |
| Midrange Size (Nominal Diameter) | 5.25" |
| Power Handling (RMS) | 65 Watts RMS |
| Tweeter Mounting Depth | N/A |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Sensitivity (dB @ 2.83V/1M) | 94 dB |
| Crossover | Built-in tweeter crossover |
| Sensitivity (dB @ 1W/1M) | 91 dB |
| Midrange Mounting Depth | 2.05" (52.0mm) |
| Included In The Box | (2) Speakers (2) Speaker Grilles (1) Hardware Pack |
