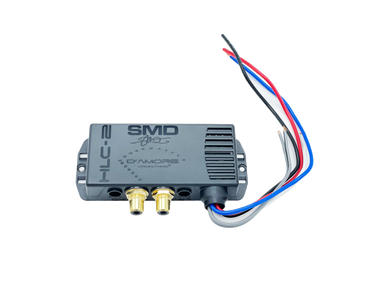

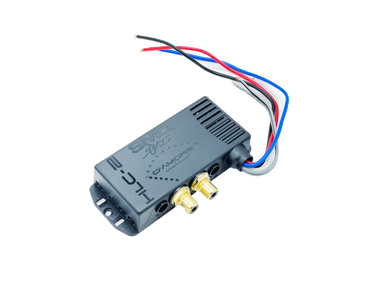

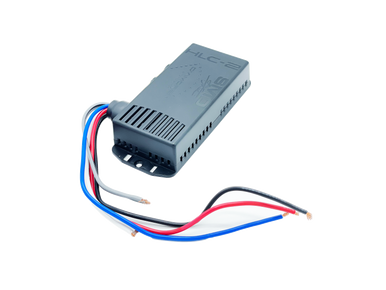

SMD HLC-2 High Level Converter

The SMD HLC-2 is an active speaker-level to RCA-level converter for integrating aftermarket amplifiers with a factory audio system.

Features

• Built-in zip-tie mounting slots
• Texas Instruments / Burr-Brown operational amplifiers
• Class A/B output
• High-frequency filtering for Class D output noise

Specifications

• Operating voltage: 6–18 VDC
• Maximum input: 40 V RMS BTL
• Output capability: 10 V RMS
• Output impedance: 100 ohms
• Frequency response at minimum gain: 10–40,000 Hz ±0.3 dB
• Signal-to-noise ratio: >115 dBA, 20 Hz–20 kHz
• THD+N: <0.005%, 20 Hz–20 kHz; <0.003% at 1 kHz and 4 V RMS
• Current draw: 80 mA at 12.6 V
• Dimensions: 4.10 × 2.19 × 0.80 inches

Included

• HLC-2 converter
• Owner’s manual
