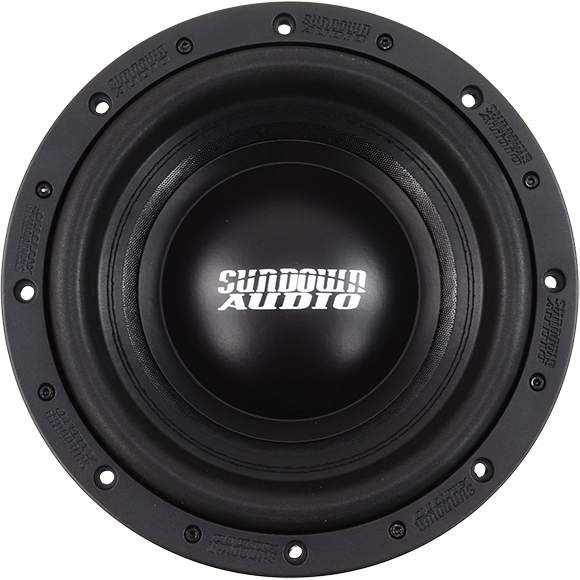

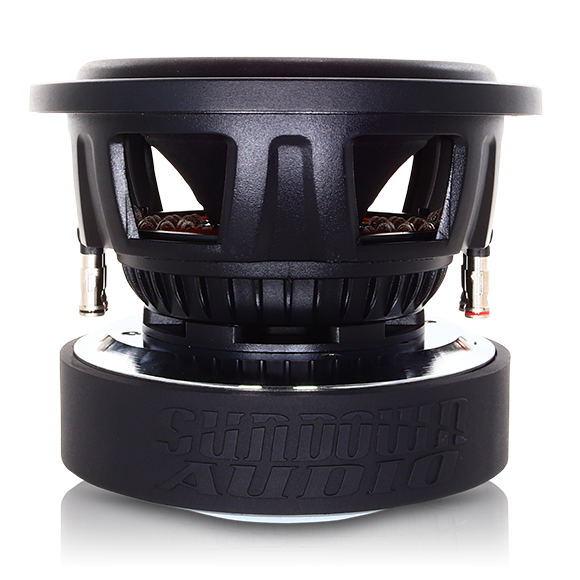

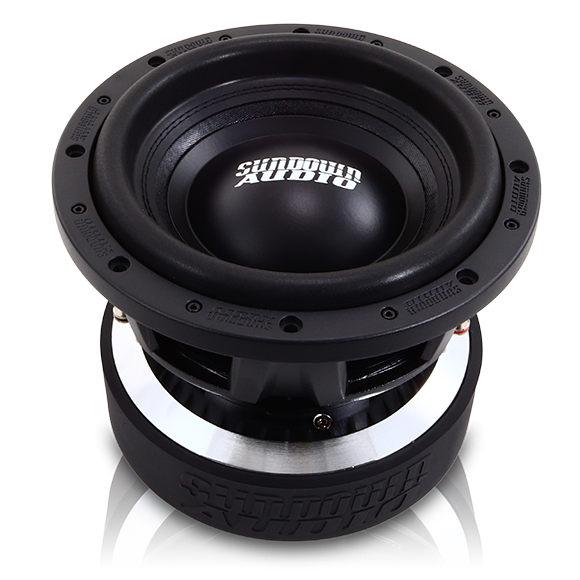

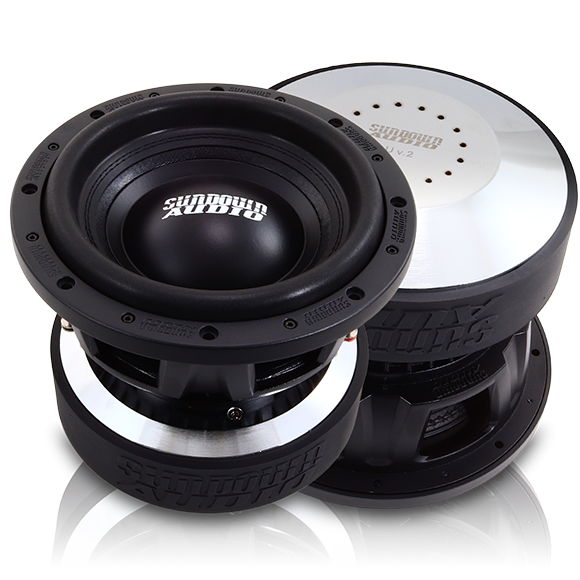

Sundown Audio U-Series v.2 10" Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 2000 W
- Voice-coil options: D2, D4
- Mounting depth: 8.15"
- Cutout diameter: 9.75"
- Driver displacement: .18cu ft
Sundown Audio U-Series v.2 10" Subwoofer - D4 is backordered and will ship as soon as it is back in stock.
Sundown Audio U-Series v.2 10" Subwoofer - D4 is backordered and will ship as soon as it is back in stock.
Description
Description
Sundown Audio U-Series v.2 10" Subwoofer
The U-Series v.2 10" Subwoofer is a 10-inch car subwoofer driver for a separately designed bass enclosure. Sundown specifies 2,000 watts RMS power handling for this model. Choose the listed voice-coil option to suit the amplifier and final wired load.
D2 means dual 2-ohm voice coils; D4 means dual 4-ohm voice coils.
Manufacturer specifications
- Xmax: 30mm
- RMS Power: 2000 W
- Peak Power: 4000 W
- Displacement: .18cu ft
- Mounting Depth: 8.15"
- Outside Diameter: 11"
- Cutout Diameter: 9.75"
- Sealed Enclosure: .5cu ft
- Ported Enclosure: 1.0cu ft
- Recommended Port Tuning: 35hz
- Recommended Port Area: 16sq in
Enclosure and installation planning
This listing is for the subwoofer driver. Use the manufacturer’s dimensions and enclosure recommendations when planning the installation; no vehicle-specific fitment is asserted. Confirm the mounting cutout, available depth, enclosure volume, and amplifier load before assembly.
