12 Volt Outlet is proud to announce our partnership with Q-Power. A great bass project needs an enclosure that belongs in the plan from the beginning. Q-Power adds a wide range of speaker-box choices to that conversation, giving customers a way to compare layouts, enclosure types, and vehicle space before committing to the finished system.
The box determines much more than where the subwoofer sits. Its internal volume, construction, openings, and any port work with the driver to shape the result. Our Q-Power partnership puts those decisions alongside subwoofer and amplifier selection, where they deserve to be.
Several enclosure layouts, several different projects

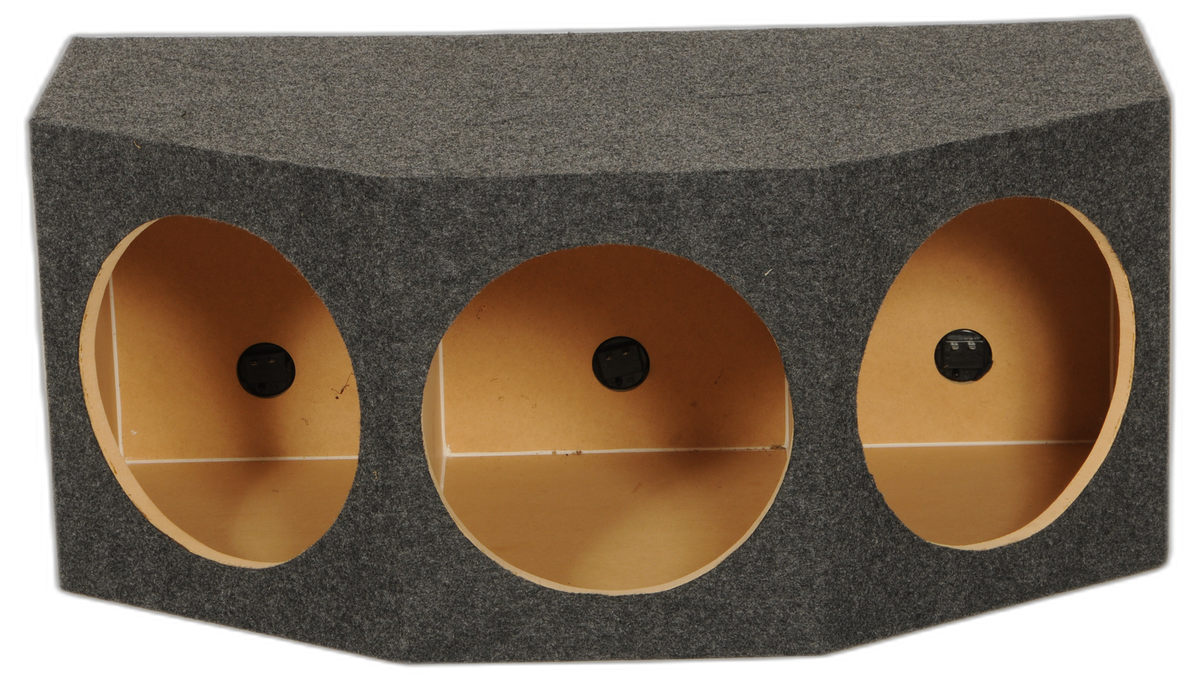

Our selection includes the Q-Power BASS12 3HOLE enclosure, which the manufacturer identifies as a triple twelve-inch sealed speaker box. The BASS12 4HOLE T enclosure offers a four-driver sealed layout. Those formats invite a larger system plan, with the driver choice, available enclosure volume, wiring arrangement, and vehicle capacity considered together.
For a different direction, the HD110 VENT SQ enclosure is listed by Q-Power as a single ten-inch heavy-duty vented box. A single-driver layout can be a useful starting point when the vehicle still needs to carry everyday cargo. Its suitability depends on the selected subwoofer's enclosure requirements and the actual space available.
These examples show why a brand collection is more useful than choosing a box by appearance alone. The number and diameter of openings establish a layout, but the enclosure must still be matched to the particular drivers that will occupy it.
Sealed or vented? Follow the driver and the goal
A sealed enclosure uses its enclosed air volume as part of the subwoofer's operating environment. A vented enclosure adds a tuned port, making port dimensions, clearance, and tuning important parts of the design. Either approach can belong in a satisfying music system when it suits the driver and installation.
Start with the subwoofer manufacturer's recommended applications. Compare the recommended volume with the enclosure's documented usable volume, and establish whether the published figure is per chamber or for the entire box. Driver displacement and any internal structures affect the airspace available after installation.
For a vented system, confirm tuning and the driver's suitability for it before buying. A vented box should not be treated as a sealed box with a decorative opening. Its operating behavior depends on the complete design, and appropriate filtering should be established for the final subwoofer and enclosure combination.
Measure the route into the vehicle
It is surprisingly easy to measure the trunk and overlook the trunk opening. Check the route the enclosure must take into its final position, including hinges, trim, folded seats, and any fixed obstacles. Allow room for connections and preserve access to the spare tire, service panels, or equipment you use regularly.
Then check driver fit. Cutout diameter, mounting depth, basket shape, terminal position, and front clearance all matter. Two twelve-inch subwoofers can require different openings and different space behind the baffle. A protective grille also needs clearance, especially in a cargo area.
Plan secure mounting appropriate to the vehicle. A heavy enclosure should not be left free to move during braking or a collision. Review the proposed fastening points before drilling so that wiring, fuel-system parts, and other hidden components are protected.
Multiple subwoofers require a complete wiring plan
A three- or four-driver enclosure makes it especially important to map the final electrical load. Include every voice coil and connection in that calculation, then choose an amplifier rated for the resulting impedance. Having more openings available does not establish a safe wiring arrangement or a suitable amplifier automatically.
Use matching drivers where the design requires them and follow the enclosure's chamber arrangement. Terminal cups and internal wiring should be appropriate to the project. The amplifier's gain, crossover, and any subsonic filtering belong in the final setup, along with a check for air leaks, loose hardware, or unwanted vibration.
Build the bass system from the box outward
Explore the Q-Power collection at 12 Volt Outlet with your driver model and vehicle measurements close by. We're excited to bring customers more enclosure choices and a clearer path through the decisions behind them. When the box, subwoofer, amplifier, and available space agree, the whole project becomes easier to understand and much more rewarding to finish.
