InstallBay connectors solve a small but important part of a car audio installation: matching the wire to the connection it actually needs. Metra's Install Bay line includes nylon butt connectors, ring terminals, vinyl quick disconnects and other installation hardware. Those names describe different jobs, not interchangeable ways to finish the same wire.
A useful shopping checklist has four separate questions: What wire size fits? What does the terminal connect to? Which insulation style is specified? How many pieces are in the package? Answering them in that order makes a long connector list much easier to navigate.
Start with wire gauge, not connector color

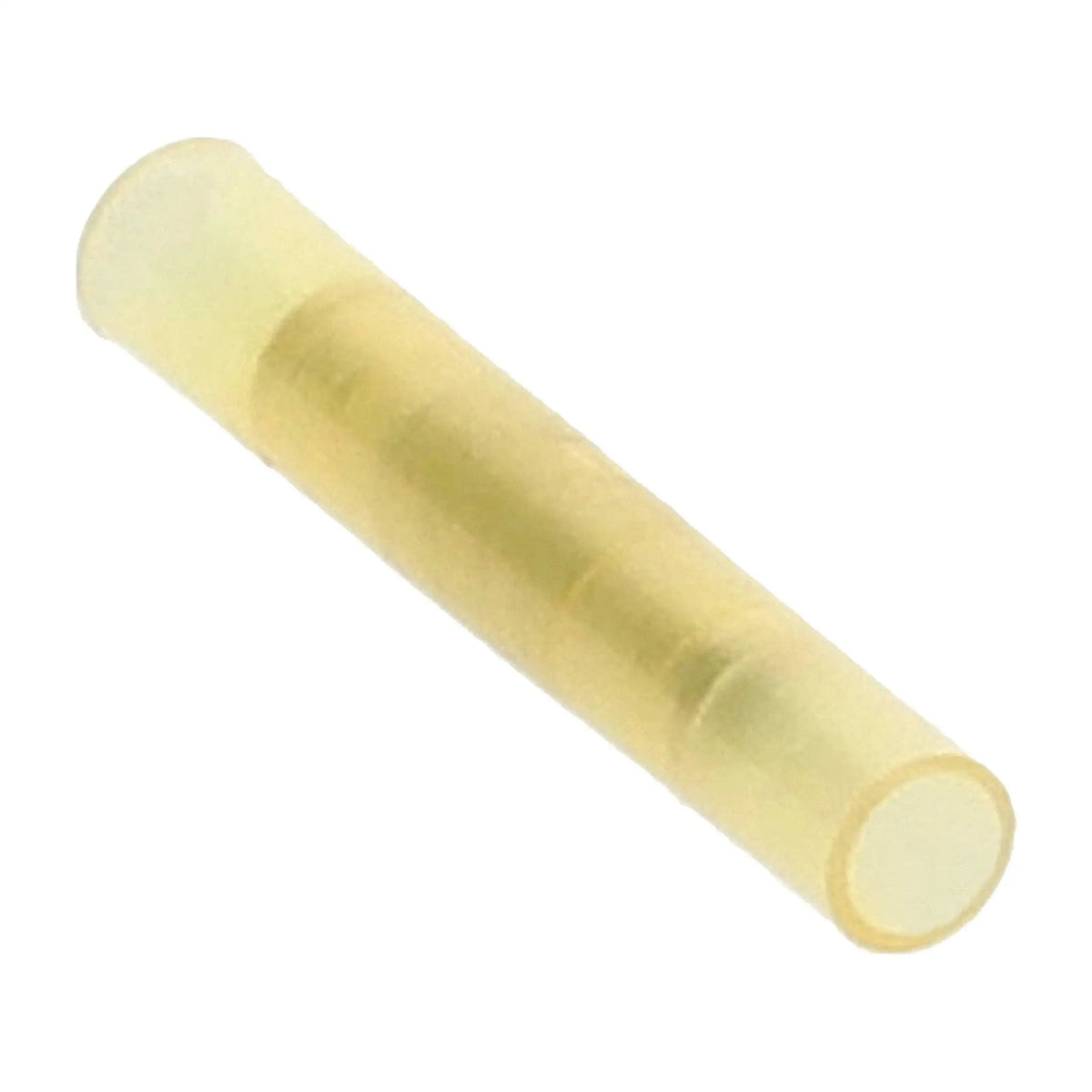

The connector's stated AWG range is the first check. InstallBay RNBC nylon butt connectors accept 22–18 AWG wire and have red insulation. The miniature RNBM is a useful reminder that color alone is not a specification: it is yellow, but its stated wire range is 24–26 AWG.
That distinction matters when ordering hardware for small wires. Do not substitute a connector just because its sleeve resembles one already in the toolbox. Read the exact model's wire range and keep that information with the bag or storage-bin label.
Match ring size or disconnect width separately
Wire fit and terminal fit are two different measurements. The RNRT14 nylon ring terminal is specified for 22–18 AWG wire with a 1/4-inch ring size. The wire range describes the conductor side; the ring size describes the mounting interface. Neither number replaces the other.
Quick disconnects introduce another measurement. The RVFD250 is a red vinyl female quick disconnect for 22–18 AWG wire and a 0.250-inch male terminal. When planning a removable connection, check both the male/female form and the stated mating size. A matching wire gauge does not establish that two terminals will mate.
Nylon, vinyl and uninsulated are different buying choices
Keep the insulation description in the comparison rather than treating it as an optional detail. RNBC is a nylon butt connector; RVFD250 is a vinyl quick disconnect. They differ in connection style as well as insulation, so comparing them solely by sleeve material misses the larger decision.
For an uninsulated listing, do not assume that an insulating sleeve is included. Likewise, a nylon or vinyl sleeve should not be read as a promise of adhesive-lined heat-shrink construction or a waterproof rating. Use the specifications of the exact part and the installation requirements, not assumptions based on its photograph.
Check the pack suffix before comparing prices
Similar part numbers can represent different package quantities. Metra lists RNBC as a 100-piece package, RNBC-5 as 500 pieces and RNBC-1 as 1,000 pieces. All three are red nylon butt connectors for 22–18 AWG wire. The suffix changes the buying quantity, not that basic wire-range specification.
For a single installation, count the connections you need. For repeated work, keep a parts list by exact model and package size. That prevents a replenishment order from turning into a box of the right-looking connector in the wrong quantity.
A practical InstallBay ordering checklist
- Record the connector model and its stated wire-gauge range.
- Confirm the connection style and any ring, stud or tab measurement.
- Check the insulation description and any explicitly listed environmental rating.
- Confirm whether the package is counted in individual pieces or pairs.
- Keep the model information available for installation and future reorders.
Our InstallBay connectors and installation hardware page brings the brand's store selection together. Choose the exact part for the connection rather than shopping by color alone, and have an installer confirm the application when the wiring requirements are unclear.
