Understanding DC Power in a Vehicle: Batteries, Grounds, Fuses & the 12-Volt System
A “12-volt” vehicle rarely measures exactly 12 volts. The name describes the system class; actual voltage changes with battery state, charging strategy, temperature and electrical load.
The Big Picture
A “12-volt” vehicle rarely measures exactly 12 volts. The name describes the system class; actual voltage changes with battery state, charging strategy, temperature and electrical load.
Why It Is Called a 12-Volt System
A fully charged lead-acid battery at rest is commonly above 12 volts, while charging voltage may be in the 13- to 15-volt region depending on vehicle strategy and conditions. Modern smart charging can intentionally move voltage over a wider range.
Equipment must tolerate the vehicle’s real operating window, not just a printed 12.0-volt label. Confirm manufacturer voltage limits before adding sensitive electronics.
Positive Supply and Chassis Return

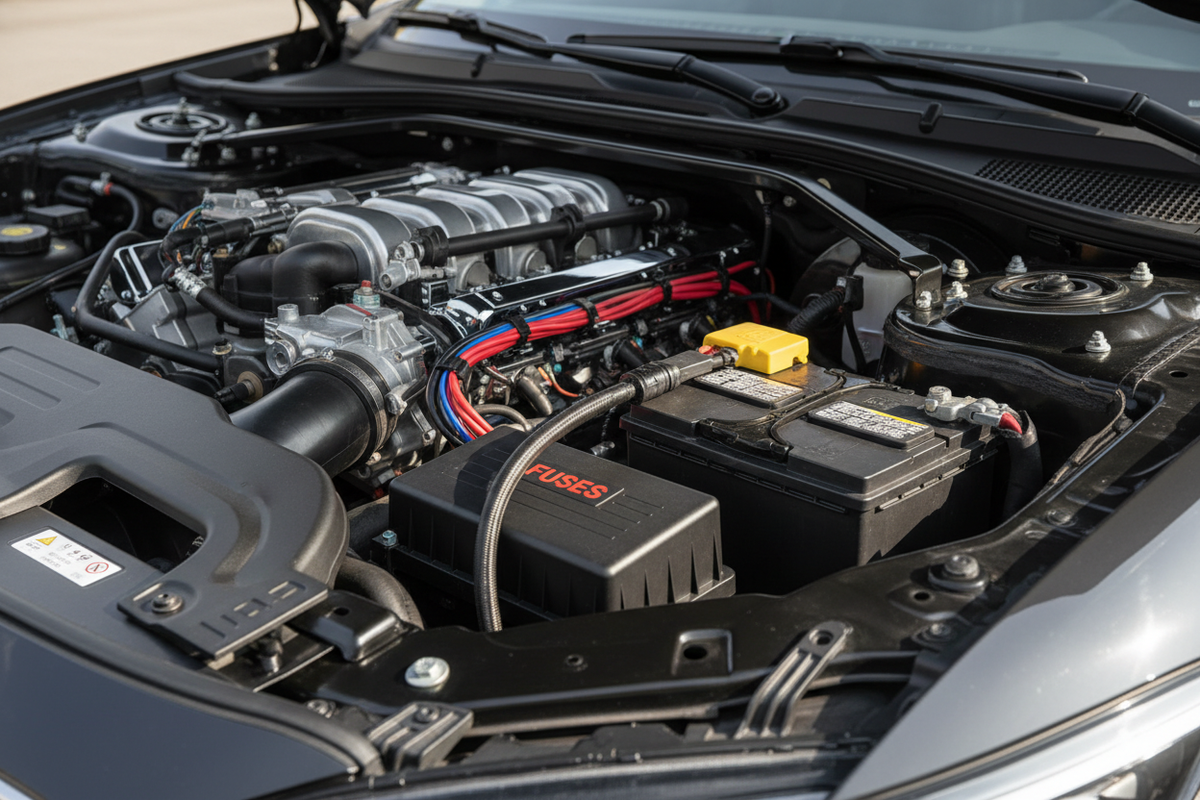

The battery positive cable distributes energy through protected branches. The negative terminal connects to chassis and engine paths, allowing the metal structure to serve as part of the return network.
Ground does not make current disappear. Every amp delivered to the amplifier must return to the source. Weak metal paths, paint, corrosion and loose joints create resistance and voltage loss.
Constant, Switched and Remote Turn-On Power
Constant 12 volts remains available with the ignition off and preserves memory. Switched accessory power follows a vehicle state. An amplifier remote terminal is a low-current control input—not its operating power source.
Data-controlled vehicles may not provide a traditional accessory wire behind the radio. Use an appropriate integration interface instead of probing or loading unknown circuits.
Fuses, Distribution and Relays
The main fuse belongs close to the battery so the long cable is protected if it contacts chassis. Downstream branches need protection matched to their smaller conductors.
A relay allows a low-current control circuit to switch a higher-current accessory circuit. The coil and contacts are separate functions, and suppression may be needed to control inductive kick when the coil is released.
Worked Car-Audio Examples
Amplifier voltage under load
Battery voltage is 14.1 V while amplifier terminals measure 12.8 V during a bass passage. Total delivery-and-return drop is 1.3 V and should be isolated by segment testing.
Relay-controlled accessories
A head-unit remote output energizes a relay coil. The relay contacts then supply several processors or fans from a separately fused DC feed without overloading the radio output.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Battery | Stores DC energy and establishes polarity. |
| Chassis | Conductive return network—not a magic sink. |
| Fuse | Sacrificial protection for the wire. |
| Relay | Electrically controlled high-current switch. |
Common Mistakes That Cost Performance—or Equipment
- Assuming chassis metal has zero resistance
- Using remote turn-on to power accessories directly
- Fusing for amplifier advertising instead of cable
- Grounding over paint or seam sealer
- Probing modern data wiring as though it were accessory power
Frequently Asked Questions
Why does my 12-volt car read 14 volts?
The charging system raises voltage above battery resting level to supply loads and replenish energy.
Is chassis ground the same as battery negative?
They are connected, but resistance in the path can create a measurable difference under load.
What is constant 12 volts?
A fused supply that remains energized independent of normal ignition/accessory state.
What is a remote turn-on wire?
A low-current control signal telling an amplifier or relay to switch on.
Does a fuse protect the amplifier?
The main cable fuse primarily protects the wire and vehicle. Equipment may have additional internal protection.
Where should the main fuse be installed?
As close to the battery positive source as practical, before the cable traverses the vehicle.
Can I ground several amplifiers at one point?
Yes when the point and conductors are properly designed for total current and all connections remain low resistance.
