How Amplifiers Are Built: Heat Sinks, Cooling and Plastic vs. Metal Potentiometers

How Amplifiers Are Built: Heat Sinks, Cooling and Plastic vs. Metal Potentiometers

Paul Galanos |



12 Volt Encyclopedia · Volume VII · Article 9

How Amplifiers Are Built: Heat Sinks, Cooling and Plastic vs. Metal Potentiometers

Build quality is not determined by weight or one shiny part. Mechanical support, thermal paths, current paths and component selection must work together through vibration, heat and repeated adjustment.

The short version: Amplifier performance comes from honest power conversion, sufficient electrical supply, safe loading, effective cooling and correct setup. Small size and modern topology never eliminate those fundamentals.
COAXIALTWISTED PAIRPANEL-LOCKED
12 Volt Outlet technical illustration. Diagram is conceptual and not to scale.

Where heat originates

Output devices, power-supply switches, transformers, rectifiers and resistive conductors dissipate heat. Efficiency reduces the amount but never makes it zero.

Why fins work

Fins increase surface area exposed to air. Their spacing and orientation matter; tightly packed fins without airflow may underperform. Traditional A/B amplifiers often need extensive external area.

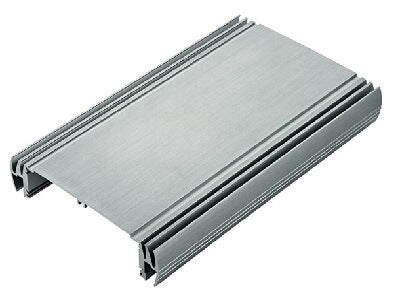

How flat chassis cool

Efficient designs may use the entire aluminum case as a spreader, internal clamps, thermal pads, bottom plates or fans. A smooth case can dissipate heat when its surface area, mass and airflow match the loss.

Potentiometer function

Gain and crossover knobs turn variable resistors. Reliability depends on the resistive track, wiper contact, sealing, shaft support and board mounting—not merely whether the shaft is plastic or steel.

Plastic versus metal

Plastic can insulate, resist corrosion and reduce cost or stress. Metal can offer stronger shafts and panel mounting. A metal shaft on a weak PCB control may be less durable than a well-supported quality plastic unit.

Current paths

Copper thickness, bus bars, solder joints and terminal clamping determine whether high current travels without excessive drop or heat. Decorative case weight says little about these hidden paths.

What to inspect

Look for secure panel-supported connectors, even device clamping, real ventilation, appropriately sized terminals, smooth controls and a layout that keeps heat-sensitive parts away from hot zones.

Installation and testing checklist

Checkpoint What to verify
Compatibility Source output type, receiving input type and allowable voltage range match.
Routing Signal wiring is protected, secured and separated from likely interference sources.
Termination Connectors fit firmly without excessive force; no cable weight hangs from a jack.
Signal Every channel is identified, clean and unclipped at the intended source level.
Final test Polarity, channel assignment, noise floor and operation are verified with the vehicle running.

Frequently asked questions

Do fins guarantee better cooling?

No. Heat transfer and airflow must be engineered together.

Can a flat amp run cool?

Yes, with high efficiency and a well-designed chassis thermal path.

Are metal potentiometers always better?

No. Internal quality and support matter more.

Why do knobs become scratchy?

Wiper wear, contamination or corrosion can create intermittent contact.

Does amplifier weight prove quality?

No. It may reflect heat sink and transformer mass, but not complete performance.

Safety note: Disconnect power before altering wiring. Verify circuit type and voltage before connecting test equipment. Never ground an unknown speaker conductor or connect a low-level input directly to a high-level output unless the receiving equipment is designed for it.
