12 Volt Encyclopedia · Volume VIII · Article 10
Phase, Polarity, Time Alignment and Acoustic Summation in Car Audio
Two speakers can each measure perfectly alone and fail when played together. Their waveforms must reach the listening position with compatible level and timing. That relationship—especially through crossover regions—determines whether output adds or cancels.
Polarity is a connection relationship
Reversing a driver’s leads inverts its waveform. That is a 180-degree polarity change, not a variable time delay. It can be a useful tuning option but cannot correct every phase problem.
Phase changes with frequency
Filters, drivers, enclosures and distance all rotate or delay phase. Two sources can align at one frequency and diverge at another. A phase relationship must therefore be evaluated across the crossover band.

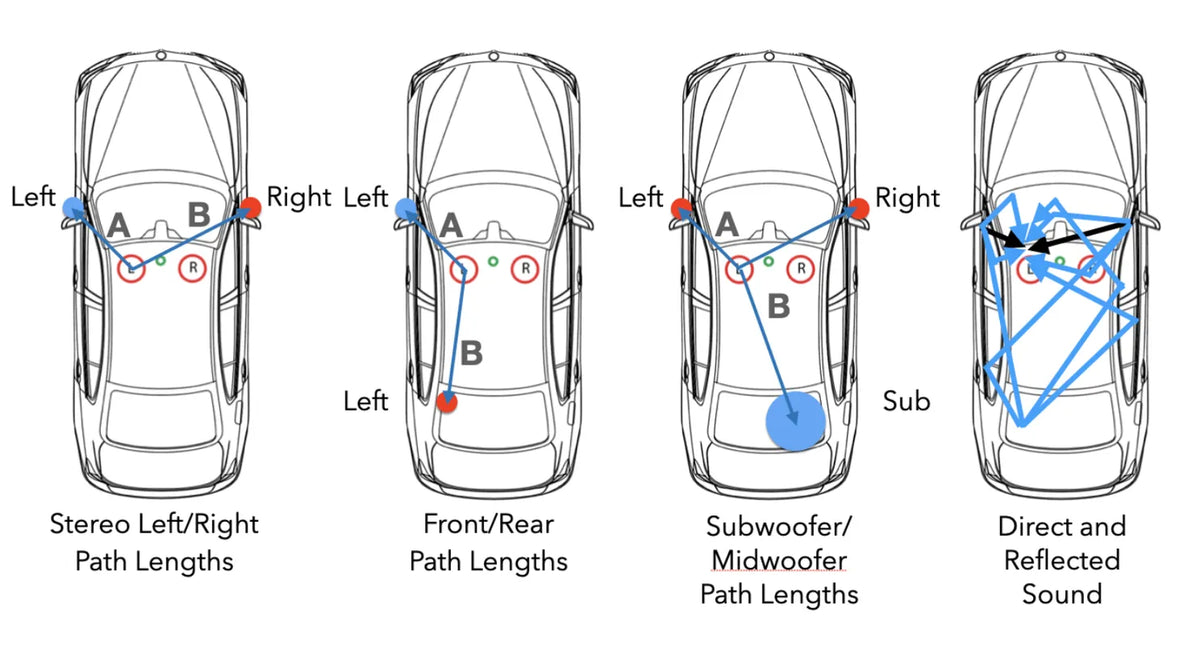

Path length creates arrival-time difference
Sound travels roughly 343 meters per second at room temperature, with temperature-dependent variation. A 34.3-centimeter path difference is about 1 millisecond. In the driver’s seat, left and right speaker paths are rarely equal.
What time alignment does
DSP delay holds nearer drivers so their sound arrives closer in time to farther drivers. This can stabilize center image and improve crossover summation. It does not remove reflections or make every seat equally aligned.
Subwoofer-to-midbass integration
The subwoofer and front midbass overlap near crossover while arriving from different locations and passing through different filters. Adjust level, delay, polarity and sometimes all-pass phase while watching the crossover region, not merely maximum bass loudness.
Reading summation
If two drivers together measure significantly louder through crossover than either alone, they are summing constructively. If combined output falls, their phase relationship is destructive. Level differences also affect the result, so match levels before judging.
Delay calculation as a starting point
Measure each acoustic path to the listening reference, identify the farthest driver and delay nearer drivers by distance difference divided by sound speed. Treat calculated delay as a starting point; acoustic centers and processing add delay not visible to a tape measure.
A practical tuning sequence
Verify polarity, set crossovers, match band levels, establish left/right timing, integrate adjacent drivers and finally refine EQ. Save measurements and settings after each stage so a promising alignment can be recovered.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is phase the same as polarity?
No. Polarity is an inversion; phase relationships vary with frequency and time.
Does time alignment improve every seat?
Usually it prioritizes one seat or a defined listening area.
Why did reversing the subwoofer improve bass?
It changed the crossover phase relationship and reduced cancellation at the listening position.
Can delay fix a bad crossover slope?
It may improve timing at a frequency, but crossover shape and driver behavior still matter.
How much output indicates good summation?
It depends on relative levels and correlation; use individual and combined measurements rather than one universal number.
