THE 12 VOLT ENCYCLOPEDIA · VOLUME X
Speaker Back-Wave Control: Foam Pads, Acoustic Absorption and Door-Speaker Enclosures
The rear of a door speaker launches the same program in opposite polarity. That energy can reflect from the outer skin, return through the cone, excite metal or leak around the baffle. Absorption and dedicated chambers can help—but a small sealed bucket can also strangle midbass.
The first rear reflection
The outer door skin may sit only a few inches behind the speaker. A strong reflection returns after a short delay, interacting with cone radiation and exciting the panel. A water-safe absorptive pad placed opposite the driver reduces some mid/high-frequency rear energy and can damp that local skin. It does not absorb deep bass efficiently at thin dimensions.
Foam type matters
Closed-cell foam is excellent for gaskets and water-resistant decoupling but absorbs relatively little sound. Open-cell foam or hydrophobic fiber is more absorptive, but must tolerate moisture and remain secured. Egg-crate shape increases exposed surface but is not proof of low-frequency performance.
What a speaker bucket changes

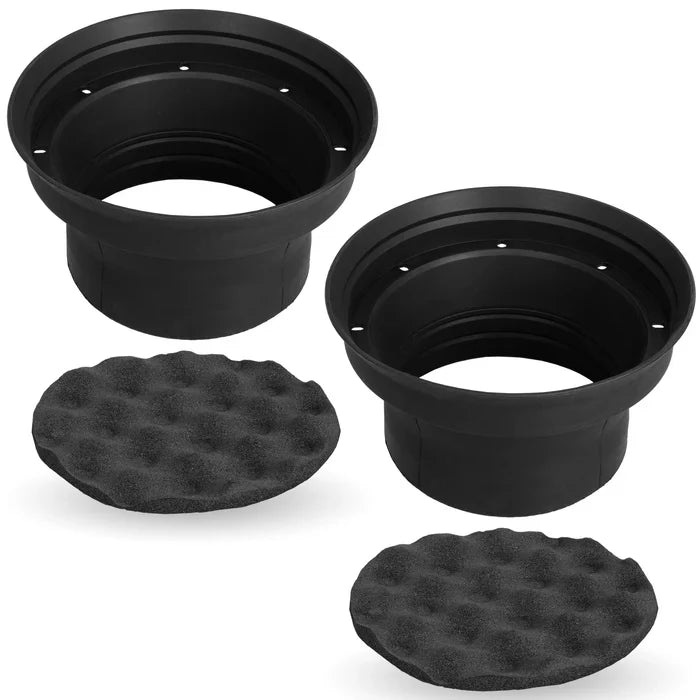

A silicone or foam cup may shield water and isolate the driver from the general door cavity. If substantially sealed, it creates a small enclosure whose air spring raises system resonance and limits low-frequency output. Many door speakers are designed around a large leaky cavity or infinite-baffle-like mounting; shrinking that volume can be a major alignment change.
Vented and trimmed cups
Some flexible cups can be cut open at the rear or vented downward, retaining water protection and front coupling without forming a tiny sealed chamber. The opening must not create a whistle or aim water toward the motor. Follow driver depth and excursion clearance rather than assuming a universal cup fits.
A real dedicated enclosure
Custom kick panels and door pods can provide known air volume, rigid walls and predictable leakage. Model the driver’s resonance, Q and compliance for that volume. A properly sized sealed pod can offer excellent control; a decorative enclosure with insufficient volume can cause a large midbass hump followed by early rolloff.
Pole vents and cooling
Many drivers vent through the rear pole, basket or voice-coil gap. Keep absorbers and bucket walls clear of these paths. Restricting airflow can increase compression and temperature. Check the manufacturer’s rear-clearance needs and observe the speaker through full window travel.
Water management
Water enters most doors normally. Use corrosion-resistant fasteners, sealed adapters and materials that do not hold moisture. Maintain a drip path and drains. A bucket that catches water like a bowl can be worse than no protection. Orient openings so water exits rather than collecting.
Test instead of guessing
Measure impedance and response with the chosen chamber or cup. A raised impedance peak and shifted low-frequency rolloff reveal the new load. Listen for compression and inspect excursion. The correct solution controls reflection and moisture without turning the driver’s required air volume into an afterthought.
Quick Reference
| Approach | Benefit | Primary risk |
|---|---|---|
| Absorber behind driver | Reduces early reflection | Moisture or mechanism interference |
| Closed-cell gasket | Seals/decouples | Minimal absorption |
| Flexible sealed bucket | Water isolation | Insufficient air volume |
| Vented/trimmed bucket | Protection with larger effective cavity | Uncontrolled vent path |
| Modeled rigid pod | Predictable acoustic load | Complexity and packaging |
Frequently Asked Questions
Does a foam pad stop bass reflecting?
A thin pad mainly absorbs higher-frequency rear energy; it cannot absorb deep bass completely.
Are silicone speaker cups good?
They can help water control and coupling, but a sealed small cup may harm midbass.
Can I cut the back from a cup?
Often, if done deliberately while retaining protection and clearance.
Should material touch the magnet?
Avoid blocking cooling and ventilation paths.
Is a custom sealed pod better?
Only when its volume and construction suit the driver and target range.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
