Vehicle Panel Flex Explained: Where Bass Energy Goes When Metal Starts Moving
When a woofer pressurizes the cabin, every broad panel experiences alternating force. If a panel moves easily, it becomes an unintended radiator. Some movement is unavoidable; the goal is to reduce resonant motion and noise so the intended speakers dominate.
Pressure becomes force
Force equals pressure multiplied by area, so even modest pressure acting over a large roof or quarter panel produces meaningful force. A wide, lightly supported sheet can move more than a smaller panel made from identical metal. This is why roof skins, rear decks and door skins often reveal problems before structural rails do.
Resonance makes flex visible
Every panel has bending modes. Near a mode, small excitation can create disproportionately large movement. Added mass usually lowers resonant frequency; added stiffness usually raises it; damping reduces the amplitude and duration of resonance. These are separate changes, which is why “make it heavier” and “make it stronger” are not interchangeable instructions.
What constrained-layer damping does

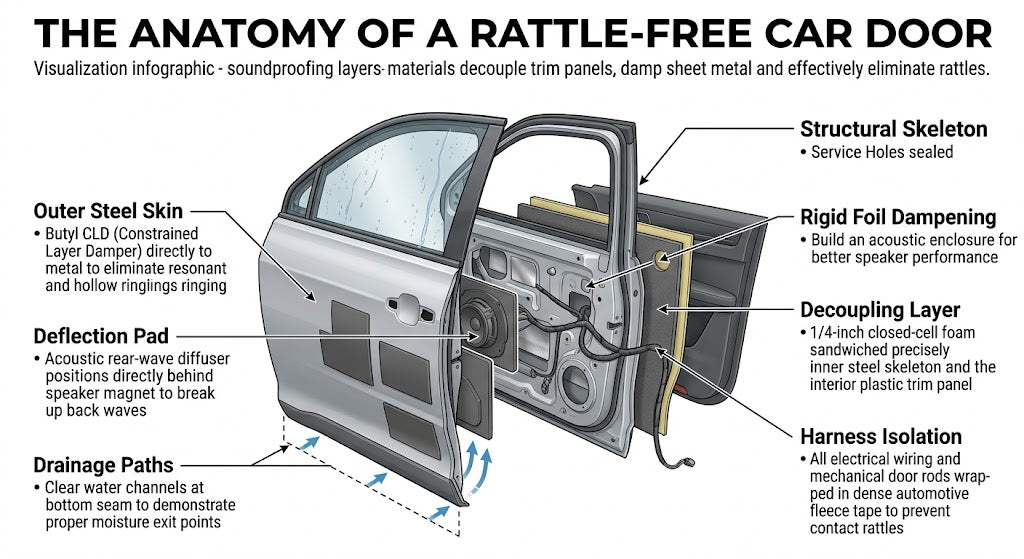

A butyl layer bonded to metal and constrained by a stiff foil is sheared as the panel bends. Part of the vibration energy becomes tiny amounts of heat. The mat does not need to be soft, thick asphalt and it does not block all airborne road noise. Adhesion, viscoelastic behavior, temperature stability and foil stiffness govern performance.
Does flex steal bass?
A moving boundary changes the pressure field and consumes energy, while radiating sound that may be delayed and distorted. Reducing major flex can improve repeatability and apparent tightness. But the cabin is not a perfectly sealed pressure vessel, and a dramatic roof-motion reduction does not promise an equal numerical increase at the microphone. Measure rather than claiming every square inch becomes output.
Stiffness, bracing and safety
Factory bows, crash structures and bonded reinforcements shorten panel spans. Adding engineered braces can outperform layers of mass, but modifying structural components can affect crash behavior, corrosion and warranty. Never drill or weld near airbags, fuel systems, high-voltage cables or unknown reinforcements.
Finding the panels that matter
Play controlled sweeps at moderate level and listen for narrow-band buzzes. Use fingertips carefully, a mechanic’s stethoscope, accelerometers or temporary pressure to identify the source. A panel that feels dramatic may be mechanically quiet, while a small trim clip produces the audible problem.
Coverage strategy
CLD is most useful near high-strain regions of broad panels, not piled at an immovable seam. Coverage requirements depend on panel shape and treatment quality. Additional layers can help extreme builds, but diminishing returns arrive. After damping, treat trim contacts and airborne paths with the correct decoupler, absorber or barrier.
The SPL-build reality
Extreme systems may require cage-like reinforcement, bonded ribs, additional fasteners and sacrificial trim strategies. That work exceeds ordinary deadening and can change vehicle structure. It should be engineered, inspected and kept clear of safety systems. Adhesive blobs melted with open flame are not a controlled structural design.
Quick Reference
| Change | Typical modal effect | What it solves |
|---|---|---|
| Add mass | Resonance tends lower | Changes frequency; may reduce response off-resonance |
| Add stiffness | Resonance tends higher | Reduces deflection |
| Add damping | Peak amplitude/Q decreases | Shortens ringing |
| Shorten span | Major stiffness increase | Controls broad-panel motion |
Frequently Asked Questions
Does flex always make the system quieter?
It consumes and reradiates energy, but the measured effect varies by mode and position.
Will two layers double damping?
No. Benefits are not linear and adhesion between layers matters.
Is heavy mat the same as stiffening?
No. Mass, stiffness and damping affect resonance differently.
Should I cover structural beams?
Usually treat moving sheet spans; preserve labels, drainage and service points.
Can DSP remove panel resonance?
It may reduce excitation at one condition, but cannot mechanically stabilize the panel.
Final Word
A quieter, more accurate vehicle is built by controlling energy one path at a time. Stabilize the mounting structure, separate the speaker’s front and rear waves, treat resonant panels and contact points, then verify the result before final system tuning.
