Why Some Factory Radios Shut Off Their Audio Signal: Load Detection and Load-Generating Devices
Some factory outputs expect to see an electrical signature resembling the original speaker. Remove that load and the radio or amplifier may mute, set a diagnostic fault, pulse the circuit or change behavior. The solution is not automatically “add a resistor”; it is to reproduce the expected condition safely.
Why the vehicle monitors speakers
Open and short detection helps identify damaged speakers or wiring. A module may inject a tiny diagnostic signal, observe current during playback or test impedance at startup. The strategy varies by platform and software. Some outputs continue playing with a fault; others shut down or repeatedly retry.
Symptoms of missing load
The signal may appear briefly and disappear, remain on at low volume but mute under load, click periodically or return after a key cycle. A meter can show misleading voltage from diagnostic pulses even when no usable audio remains. Compare behavior with the factory speaker connected.
Load-generating interfaces

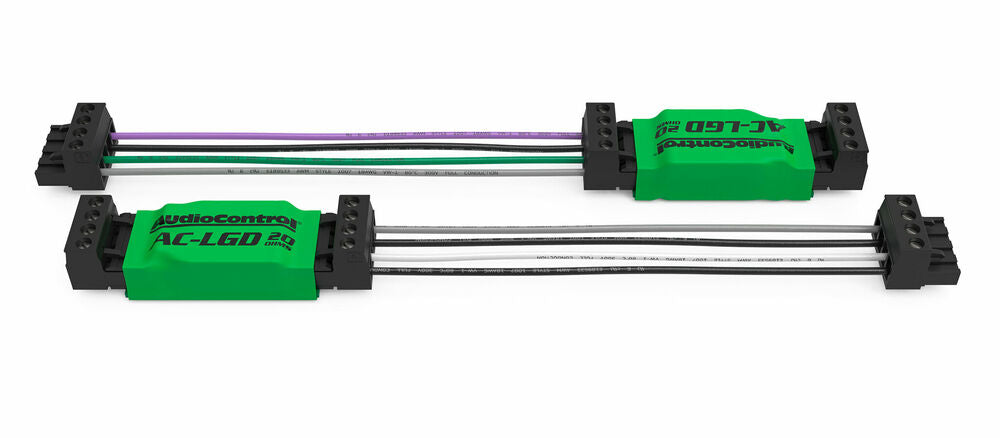

A purpose-built device presents an appropriate electrical load while delivering a usable signal to the processor or amplifier. It may combine resistance with filtering, heat management and signal conversion. Vehicle-specific instructions should define the required configuration rather than leaving the installer to guess.
Why a random resistor is risky
A resistor across a powered speaker output converts audio power into heat. Power is P = V²/R; 10 volts RMS across 4 ohms becomes 25 watts. A small resistor can burn, melt nearby material or change value. The OEM module may also look for a reactive speaker-like signature rather than a simple resistance.
Placement and thermal safety
Load devices need ventilation and secure mounting away from carpet, plastic, wire bundles and moisture. They should never hang by leads. Multiple channels create cumulative heat. Confirm whether the device is intended for continuous full-range power or only low-energy detection.
Vehicle and trim specificity
Certain Chrysler, Dodge, Jeep and other platforms are known to require load handling in particular configurations, but not every vehicle or trim behaves identically. Base radios, premium amplifiers and software revisions differ. Apply the exact integration documentation and test the actual outputs.
Diagnostic workflow
Measure the signal with the original speaker, with a high-impedance input and with the recommended interface. Observe startup, volume changes and time. Check for stored audio faults. If a known load restores stable output, document the channel voltage and calculate thermal margin before final assembly.
Do not hide the underlying problem
A muting channel can also be caused by a shorted wire, incompatible BTL input, excessive input current or protection in the factory amplifier. Load generation should solve verified detection behavior, not be used as a universal bandage for every missing signal.
Diagnostic Reference
| Observation | Possible cause | Next test |
|---|---|---|
| Brief signal then mute | Load detection | Reconnect factory speaker |
| Diagnostic pulse only | Circuit polling | Scope startup behavior |
| Cuts out at volume | Protection/thermal/load | Measure voltage/current |
| One trim works, another fails | Different factory amplifier | Verify exact application |
| Load device overheats | Underrated dissipation | Stop and recalculate |
Frequently Asked Questions
Why did audio work for two seconds?
The module may have tested the circuit, detected an unexpected load and muted it.
Can I use a 4-ohm resistor?
Only if the specified solution calls for it and its power/thermal design is safe.
Do all Dodge vehicles need load devices?
No. Requirements vary by model, trim, factory system and interface.
Can an LOC provide enough load?
Some do; others are intentionally high impedance. Verify the design.
Why is the resistor hot?
It is dissipating audio power; calculate and manage that heat.
Final Word
Modern OEM integration is a systems-engineering job. The correct solution preserves the vehicle’s intended functions while providing a clean, predictable signal and power path for the aftermarket system. Application notes begin the diagnosis; measurements and complete functional testing finish it.
