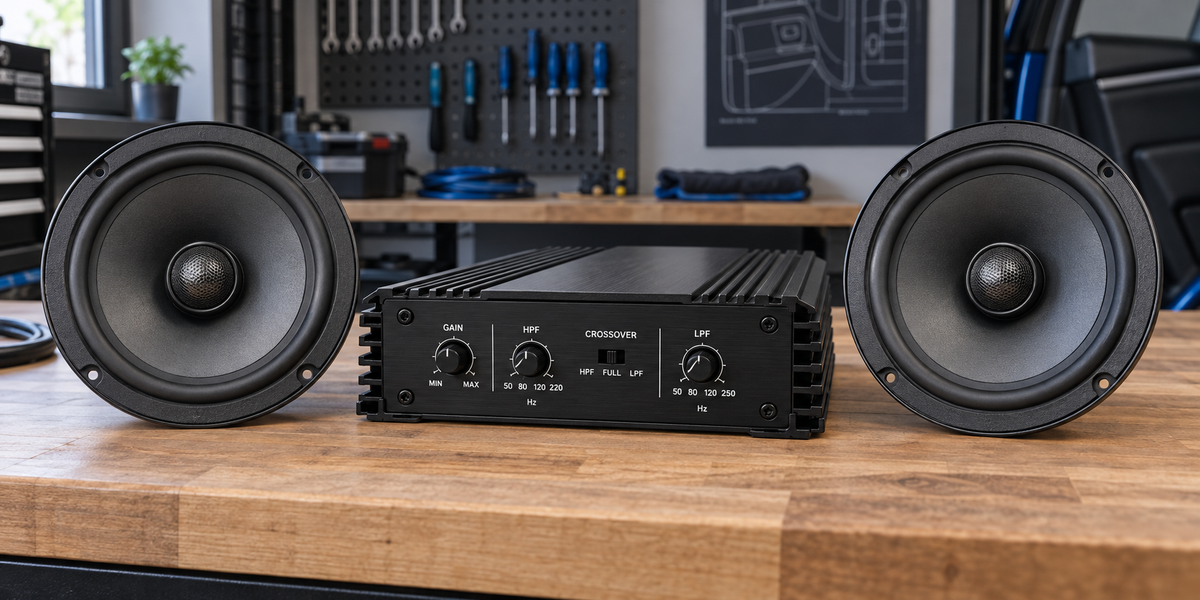

No Bass, Muddy Speakers and Incorrect Crossovers: Put Every Driver in the Right Range
A crossover is a frequency traffic controller. It keeps deep bass away from drivers that cannot move enough air, keeps midrange out of the subwoofer and creates a controlled handoff between them. Incorrect filtering can make perfectly healthy equipment sound broken.
The audible map
Human hearing is commonly described as roughly 20 Hz to 20 kHz, though sensitivity and individual limits vary. Subwoofers cover the lowest region, midbass drivers create impact, midranges carry vocals and tweeters reproduce upper detail. The ranges overlap because music and crossover slopes are continuous.
Low-pass filtering the subwoofer
A subwoofer LPF often begins in the 50–80 Hz region, but vehicle, driver, enclosure and front-stage capability determine the result. Set too high, rear-mounted bass becomes localizable and vocal or drum information sounds thick. Set too low without strong midbass, a hole appears.
High-pass filtering speakers
Door speakers frequently begin with an HPF around 80–150 Hz depending on size, excursion, installation and output goal. A robust 8-inch midbass may operate lower; a small factory-location driver may need higher protection. Distortion and cone travel are better guides than a universal number.
Slope changes overlap
A 12 dB-per-octave filter leaves more out-of-band energy than a 24 dB slope. The driver’s natural rolloff adds to the electrical filter, so menu slope is not the final acoustic slope. Adjacent drivers can peak or cancel near crossover depending on phase and delay.
Why a moving sub can lack bass
Check input signal, polarity between multiple subs, enclosure leaks, port tuning, voice-coil wiring and amplifier load. A subwoofer receiving a high-pass-filtered factory signal may move on upper bass but lack deep content. Movement alone proves neither correct signal nor useful acoustic output.
Bass-heavy speakers sounding poor
Disable bass boost and lower the HPF temporarily to a safe starting point, then raise it while listening and watching excursion. If the speaker still rattles, inspect mounting, door sealing and damage. A crossover protects; it cannot repair a loose baffle.
Set filters once
Avoid unintentionally stacking the radio, DSP and amplifier crossovers. Two 12 dB filters at the same frequency can approximate a steeper combined electrical slope and alter phase. Use one controlled processing location unless the combined behavior is deliberately designed.
Measurement and listening
Measure each band alone and together. A smooth individual response can cancel when combined. Verify with familiar vocals, kick drum and bass lines at safe level, then check higher output for excursion and distortion. Save settings before experimentation.
Diagnostic Reference
| Driver type | Common working region | Installation variables |
|---|---|---|
| Subwoofer | About 20–80 Hz | Enclosure, cabin, localization |
| Midbass | About 60–300 Hz | Door sealing and excursion |
| Midrange | About 250 Hz–5 kHz | Size, breakup and directivity |
| Tweeter | About 2 kHz–20 kHz | Resonance, slope and power |
| Wideband | Varies widely | Excursion and high-frequency beaming |
Frequently Asked Questions
Should every subwoofer LPF be 80 Hz?
No. Roughly 50–80 Hz is a common starting region, not a law.
Why set an HPF on door speakers?
To reduce low-frequency excursion and distortion outside their useful range.
Can two crossovers be used together?
Yes deliberately, but their slopes combine.
Why is bass loud in one seat and weak in another?
Cabin modes, path differences and phase relationships vary by position.
Does bass boost replace crossover tuning?
No. It consumes headroom and can worsen excursion.
Final Word
Successful troubleshooting replaces guesswork with evidence. Power, signal, load, timing, temperature and mechanical integrity can all create similar symptoms; a disciplined test sequence separates them without damaging good equipment.
