Impedance Rise Explained: Why Rated Amplifier Power Is Not Playback Power
A subwoofer system wired to 1 ohm does not stay at exactly 1 ohm while music plays. The printed number is nominal—meaning the category on the label. The actual load rises and falls with frequency, enclosure behavior, cone motion and voice-coil temperature.
Resistance versus impedance
Resistance is opposition to steady DC current and is what a normal multimeter reads on a disconnected coil. Impedance is opposition to changing AC current, such as music. It includes resistance plus effects created by the coil, moving cone and enclosure. That is why a “1-ohm” system can present 3 ohms at one bass note.
Back EMF in plain language
Back EMF is voltage created by the speaker as its voice coil moves through the magnetic field. The speaker briefly behaves like a generator and pushes against amplifier current. Where cone motion and mechanical resonance create more returning voltage, electrical impedance changes.
The enclosure shapes the curve

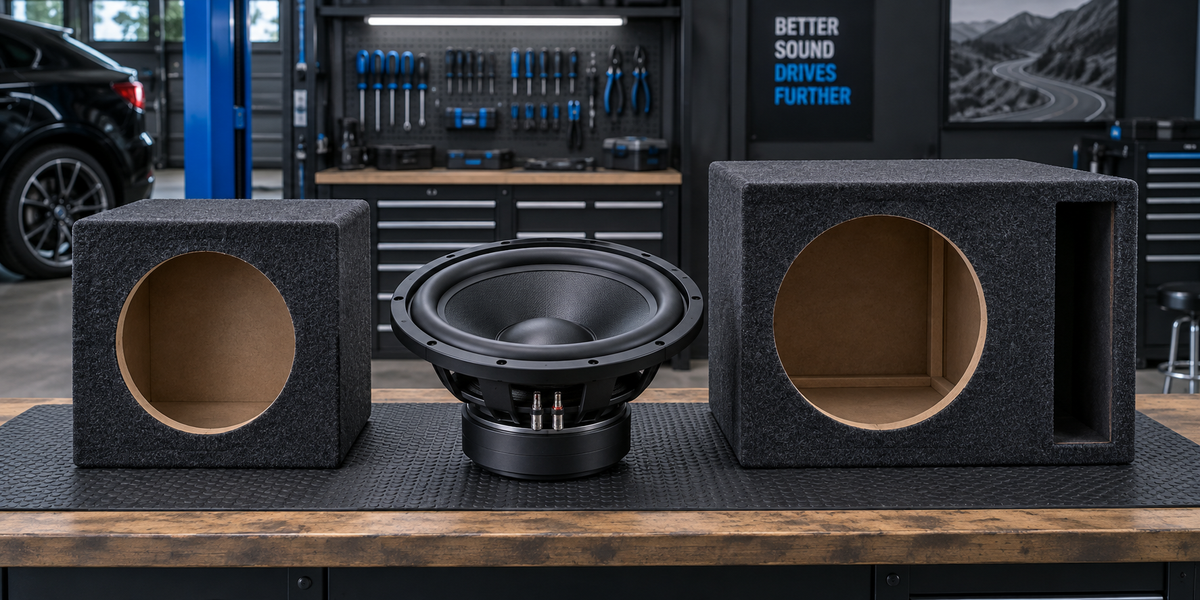

A sealed box commonly produces one large impedance peak near system resonance. A ported box usually produces two peaks with a lower valley near tuning. A bandpass, transmission line or horn can produce a more complex curve. The phrase “box rise” is popular, but system impedance rise is more accurate.
Temperature adds resistance
As the copper or aluminum voice coil heats, its resistance increases. This is power compression—meaning additional amplifier power produces less additional sound because more energy becomes heat. A hot system may show more impedance and accept less power than the same system cold.
Why a 2,000-watt pairing sees less
A 2,000-watt-at-1-ohm amplifier produces about 44.7 volts RMS at its rated test. If the subwoofer system presents 2.5 ohms at a particular frequency and the amplifier holds the same voltage, idealized power is 44.7² ÷ 2.5, or about 800 watts. At another frequency the load might be 1.2 ohms and power potential is much higher.
Estimate before building
Use verified driver parameters and enclosure software to model impedance versus frequency. Enter actual net volume, tuning, voice-coil wiring, driver count and series wiring resistance. Look at the entire usable passband, not one favorite frequency. Published parameters vary, so the graph remains an estimate.
Measure the completed system
Play controlled tones briefly and measure synchronized AC voltage and current at the amplifier output. Apparent impedance is approximately voltage divided by current. A clamp-meter estimate does not fully account for phase angle—the timing difference between voltage and current—so V×I is not always true power into a reactive speaker.
Choosing extra amplifier power safely
Additional voltage capability can recover output where impedance rises, but a blanket “double RMS” rule is dangerous. At frequencies where impedance approaches nominal, the larger amplifier can overpower coils or excursion. Select headroom from modeled and measured behavior, then enforce it with clean gain, filters and limiting.
Quick Reference
| Contributor | Plain-English effect | What changes |
|---|---|---|
| Driver resonance | Cone system naturally moves/returns energy | Impedance peak |
| Port tuning | Port and box exchange energy | Two-peak curve with valley |
| Voice-coil inductance | Coil resists faster current changes | Impedance rises with frequency |
| Coil heat | Hot conductor resists more | Power compression |
| Wiring resistance | Cable/terminals add opposition | Less voltage at coil |
| Acoustic/mechanical loading | Cone is easier or harder to move | Frequency-dependent impedance |
Impedance-Rise Power Estimator
This calculator assumes the amplifier behaves mainly like a voltage-limited source. Real output may be lower because of supply voltage, current limits, reactive phase, protection and distortion. Use it for planning—not as a guaranteed dyno result.
Enter the values and calculate.
Manual method: estimated amplifier voltage = √(rated watts × rated ohms). Estimated output at the new impedance = voltage² ÷ new impedance. This ignores voltage rise at lighter loads and voltage/current phase difference, so the completed system must be measured.
Frequently Asked Questions
Is box rise always exactly double?
No. It changes continuously with frequency, enclosure and temperature.
Should I wire below amplifier stability to offset rise?
No. The load can remain dangerously low at some frequencies.
Does 2,000 watts RMS mean the subs need 2,000 watts constantly?
No. It is a thermal rating, while music has much lower average than its peaks.
Can a clamp meter measure true speaker power?
It gives a useful estimate, but reactive phase can make V×I differ from real power.
Should I buy more amplifier than total sub RMS?
Sometimes controlled headroom is useful, but modeling, electrical capacity, excursion and limiting must support it.
Final Word
Correct equipment pairing is not matching the largest printed numbers. It is building a chain in which every source, processor, amplifier, driver, enclosure, wire and electrical component can perform its assigned job safely and cleanly.
