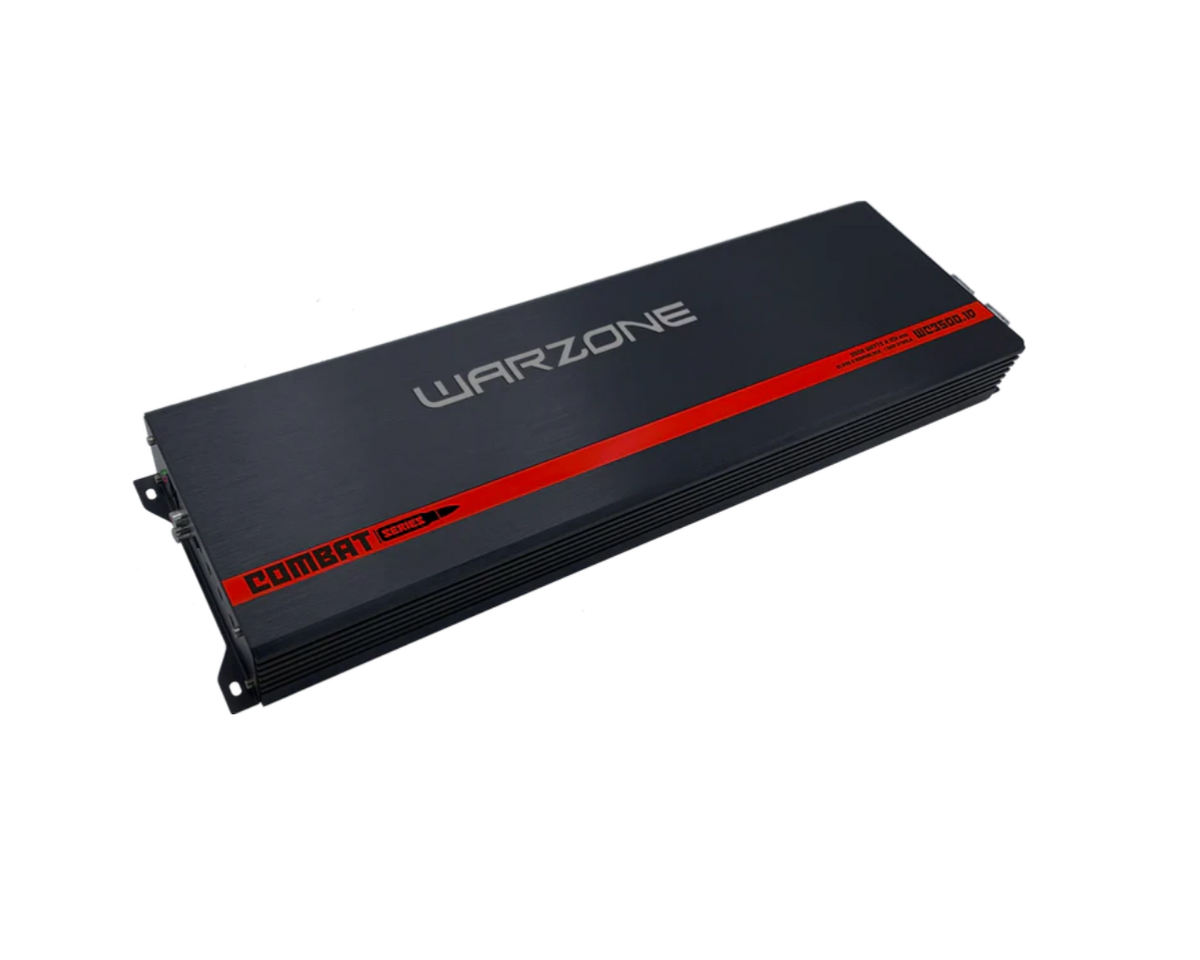

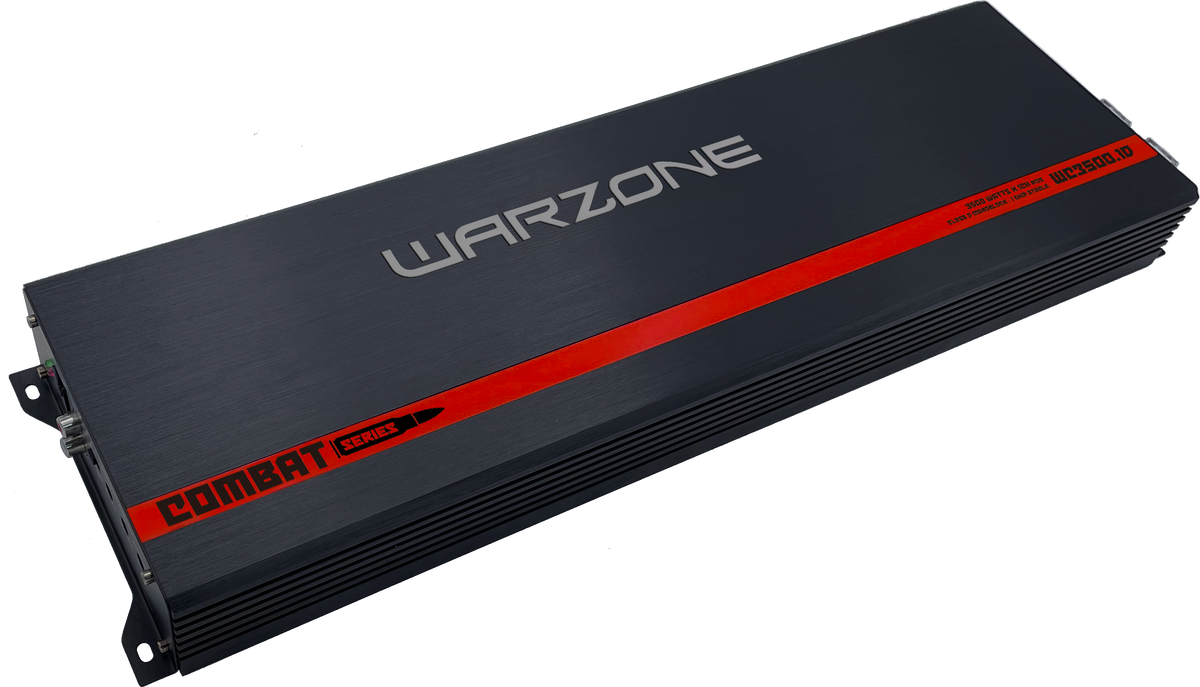

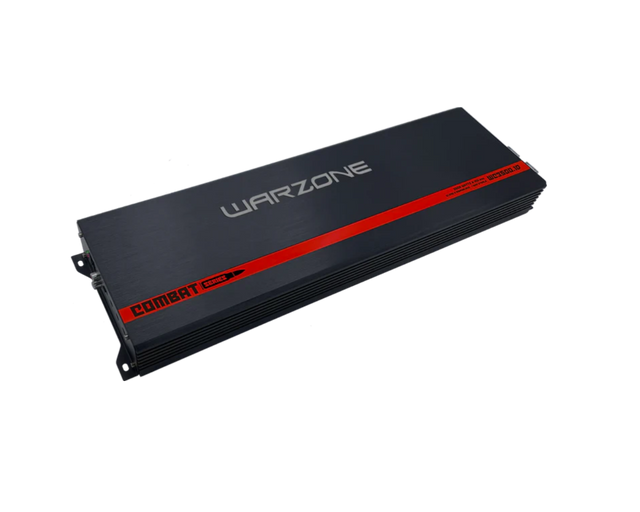

Warzone WC3500.1D Monoblock Class D Car Amplifier

The Warzone Combat WC3500.1D is a Class D monoblock amplifier for car subwoofer systems. Published RMS output is 3500 watts at 1 ohm, 1700 watts at 2 ohms and 900 watts at 4 ohms. A variable low-pass filter, subsonic filter and selectable bass boost provide adjustment for the bass system, while the included remote gain controller puts level adjustment within reach.

Specifications

• Brand: Warzone / Gravity Audio
• Series: Combat
• Model: WC3500.1D
• Amplifier class: Class D
• Channels: 1 (monoblock)
• Supported loads: 1, 2 and 4 ohms
• RMS power at 1 ohm: 3500 W x 1
• RMS power at 2 ohms: 1700 W x 1
• RMS power at 4 ohms: 900 W x 1
• Frequency response: 20–180 Hz
• Low-pass filter: 50–220 Hz, variable
• Subsonic filter: 0–50 Hz
• Bass boost settings: 0 / 6 / 12 dB
• Signal-to-noise ratio: 92 dB
• Remote gain controller: Included
• Product dimensions: 535 x 150 x 50 mm
• Finish: Black with red Combat Series stripe

Sold as one amplifier with a remote gain controller. Match the final subwoofer load to a published rating and allow suitable clearance for wiring and ventilation.
