Warzone WC700.5D 5-Channel Class D Car Amplifier

The Warzone Combat WC700.5D combines four full-range channels and a dedicated subwoofer channel in one Class D amplifier. Its full-range channels are rated at 100 W RMS each into 4 ohms or 150 W each into 2 ohms; its fifth channel is rated at 200 W RMS into 4 ohms or 300 W into 2 ohms. A wired level control is included.

Specifications

• Amplifier class: Class D (full range)
• Channels: 5

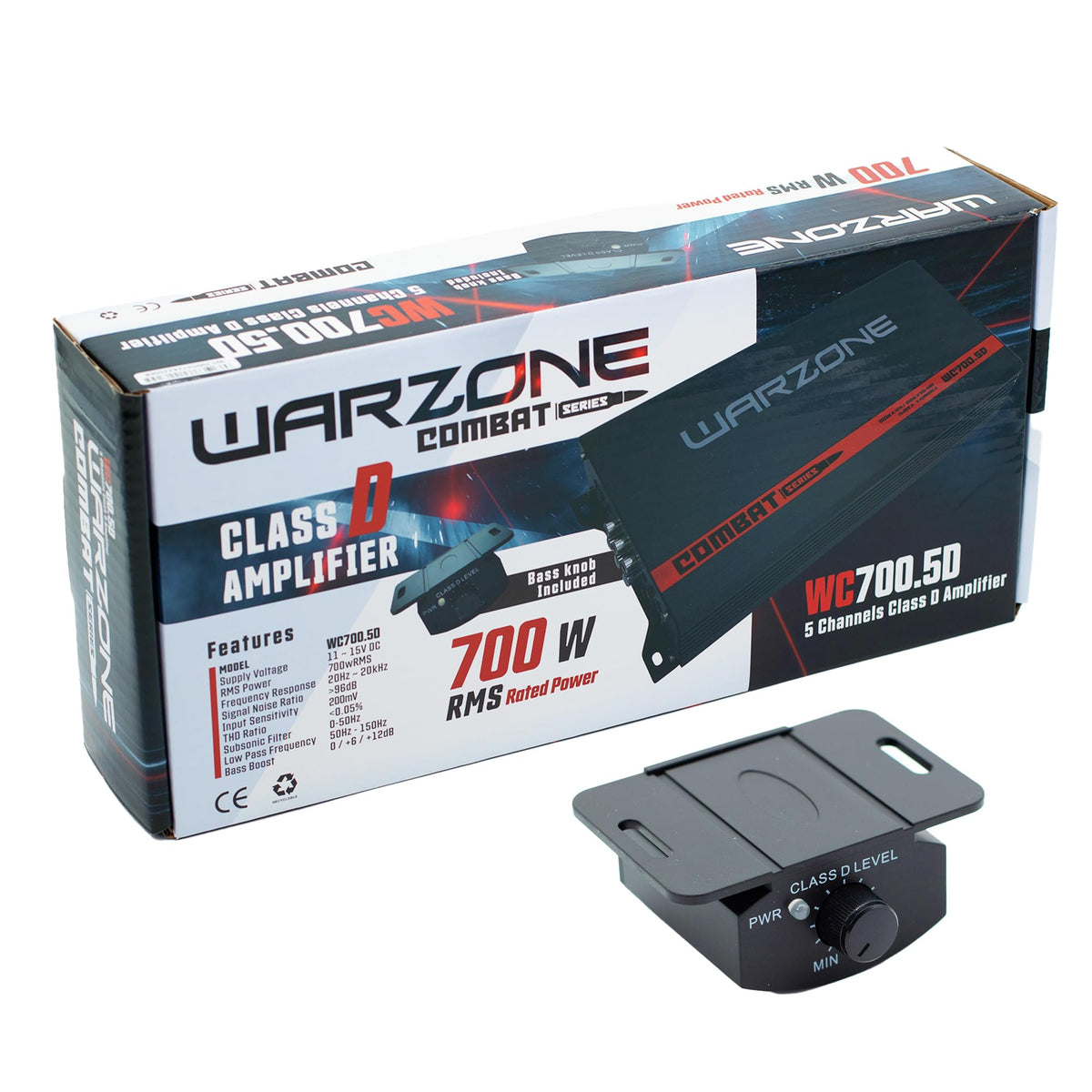

• Advertised power label: 700 W RMS rated power on product box
• Channels 1–4, RMS at 4 ohms: 100 W x 4
• Channels 1–4, RMS at 2 ohms: 150 W x 4
• Channel 5, RMS at 2 ohms: 300 W x 1
• Channel 5, RMS at 4 ohms: 200 W x 1
• High-pass filter: 40–250 Hz
• Low-pass filter: 50–150 Hz
• Bass boost: 0–12 dB
• Phase shift: 0–180 degrees
• Frequency response: 20 Hz–20 kHz
• Signal-to-noise ratio: 96 dB
• Input sensitivity: 200 mV

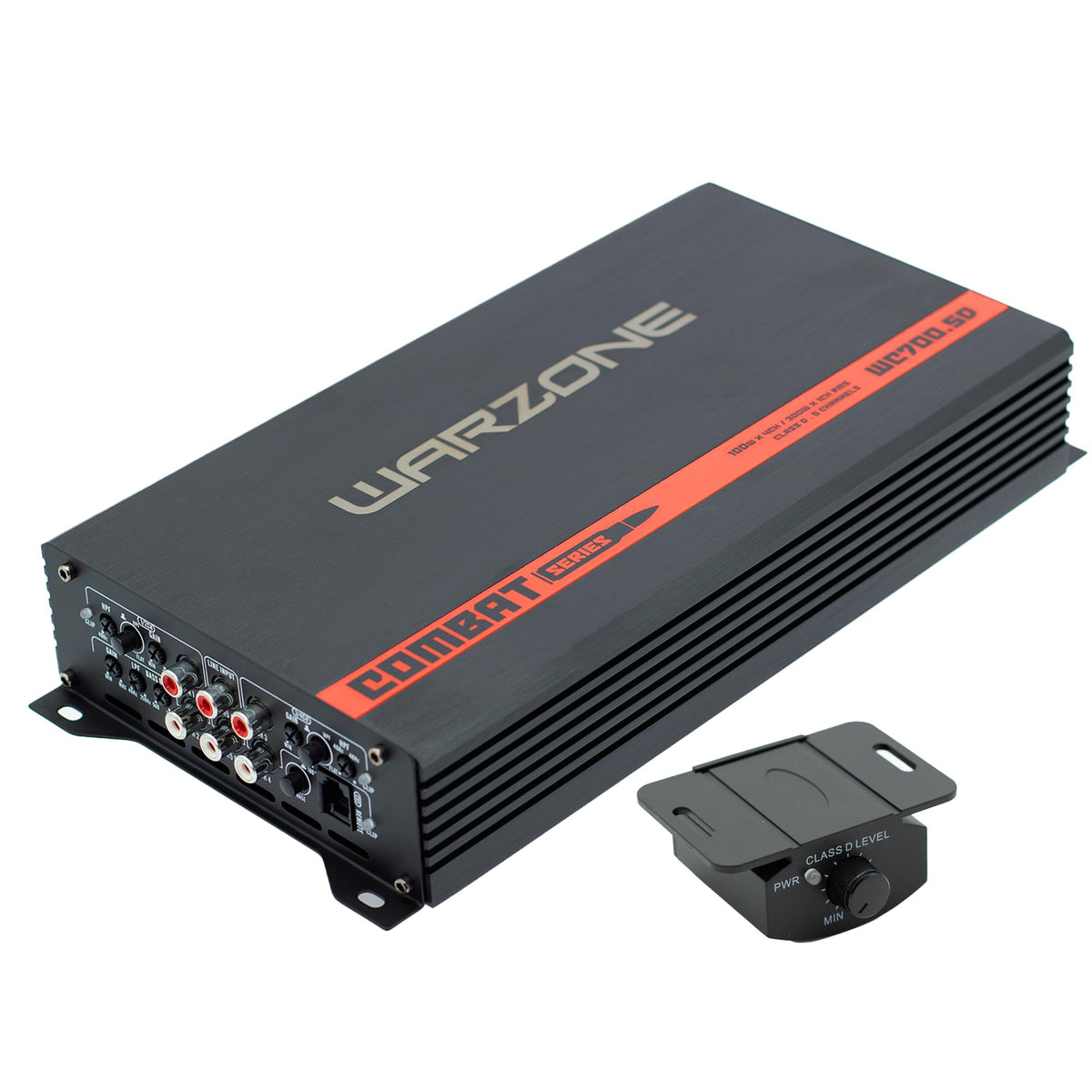

• Remote gain controller: Included
• Dimensions: 296 x 150 x 50 mm
• Finish: Black with red Combat Series accents

Sold as one amplifier. Install with suitable power wiring, fusing and ventilation, and confirm the final speaker load before use.
