Description
Description

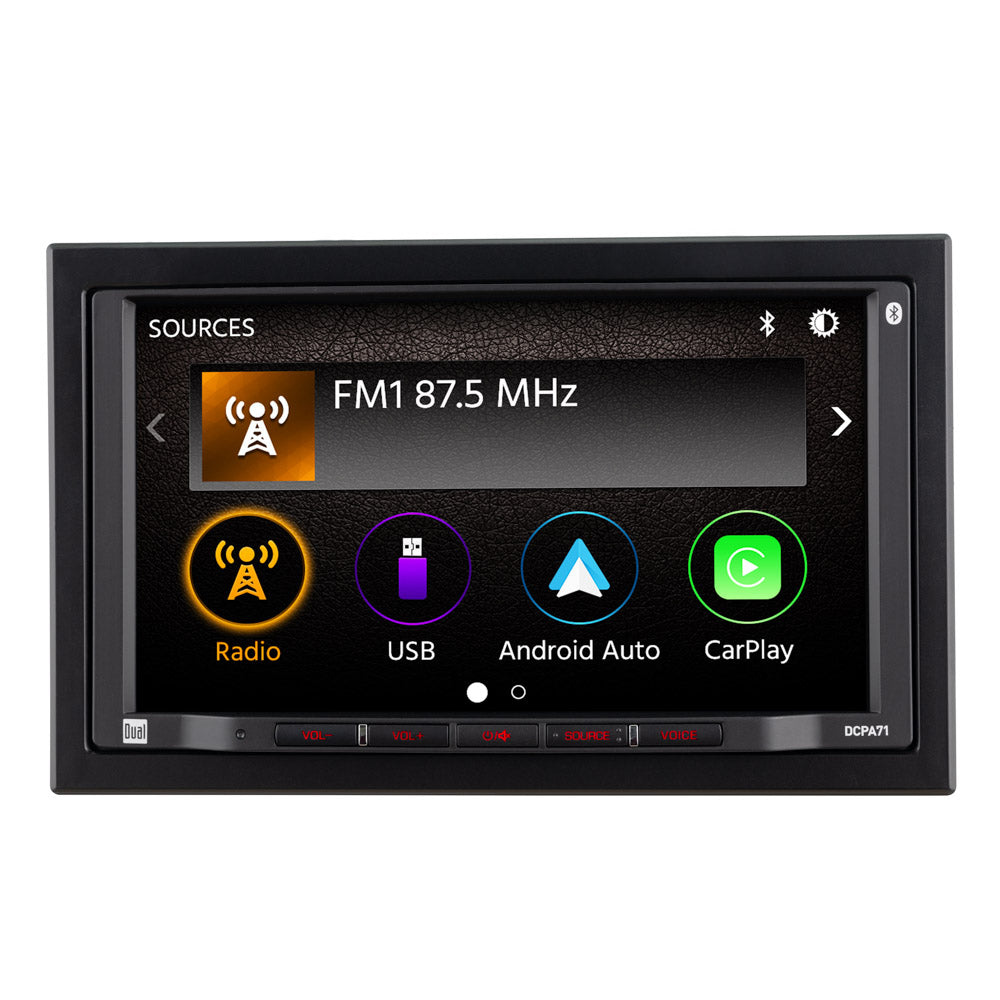

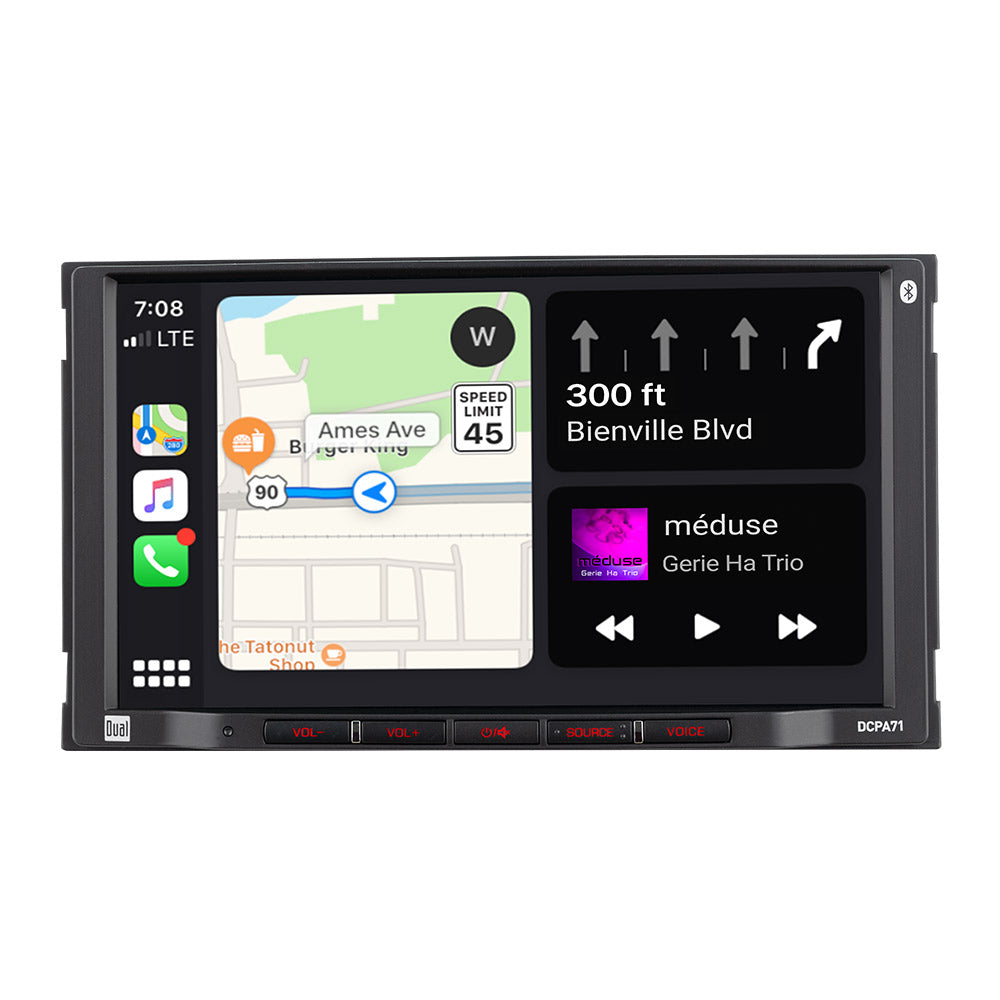

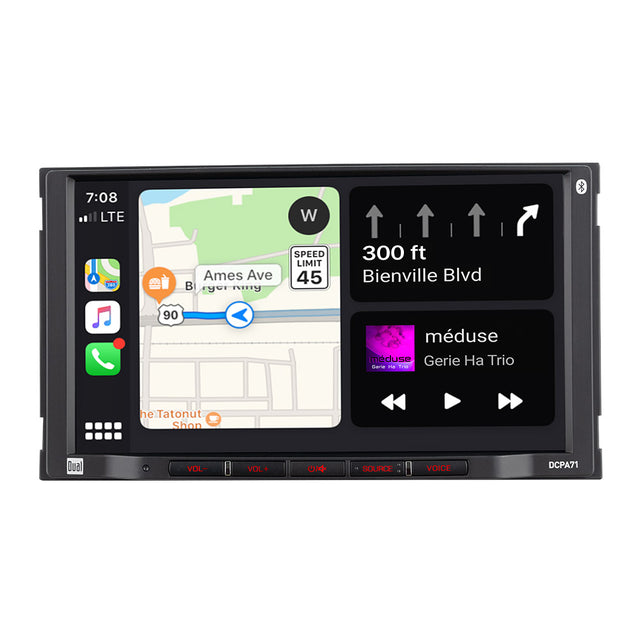

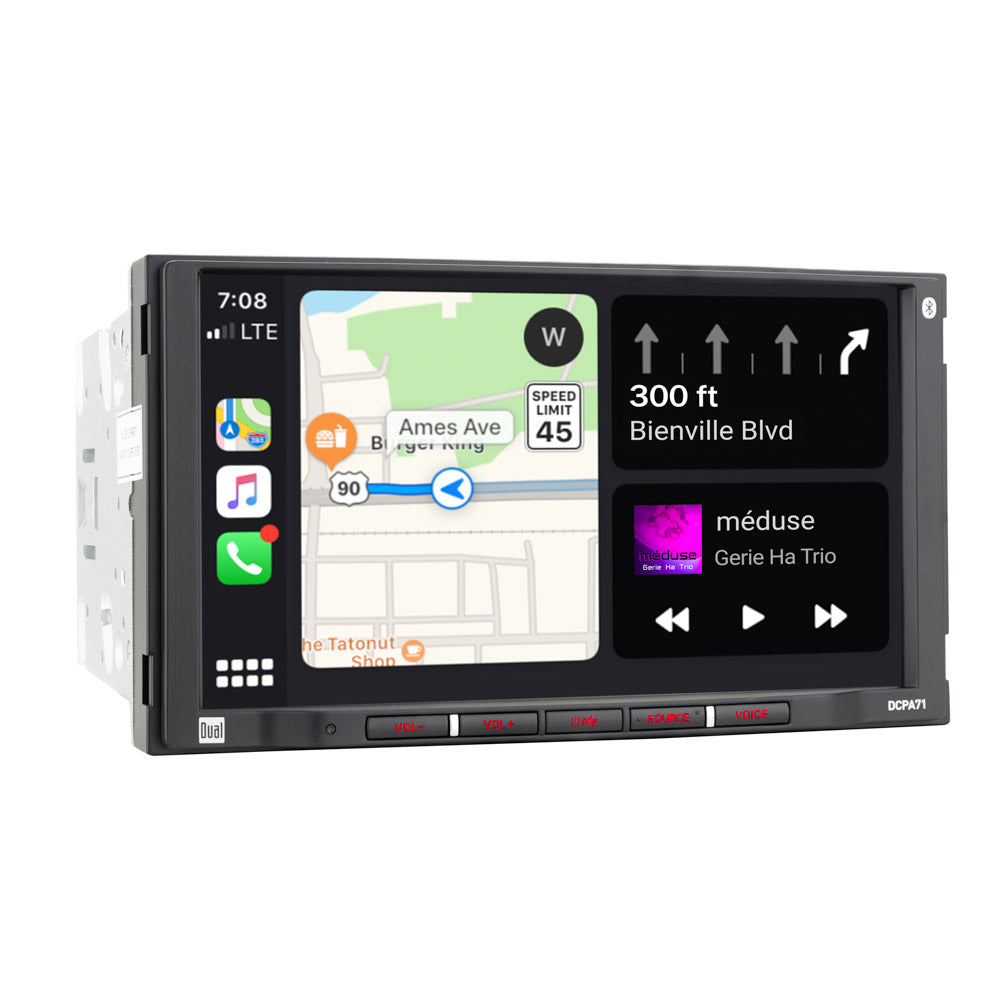

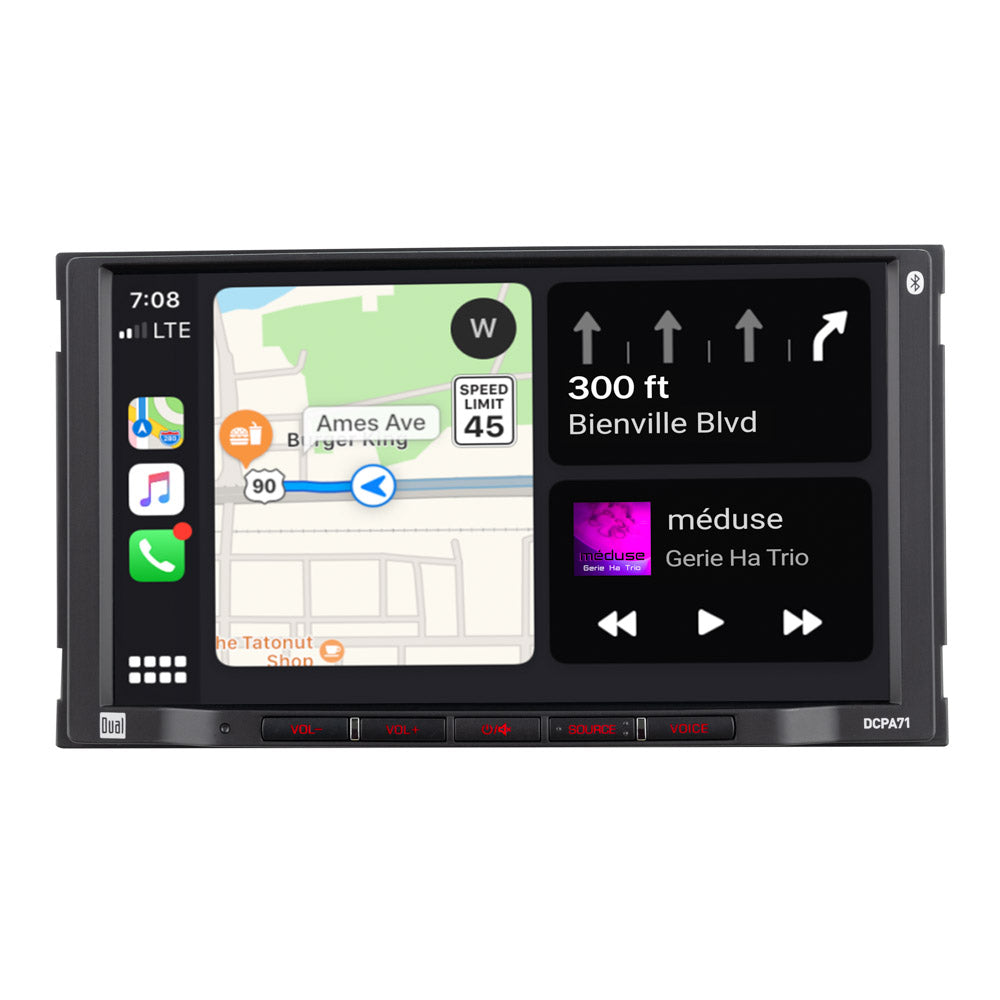

Dual DCPA71 is a digital multimedia receiver.
Features
- 7" touchscreen display.
- Apple CarPlay and Android Auto connect through USB with a compatible smartphone.
- Bluetooth audio streaming and hands-free calling.
- Voice-activation control for the connected smartphone assistant.
- Built-in amplifier: 240W (60W x 4) peak power.

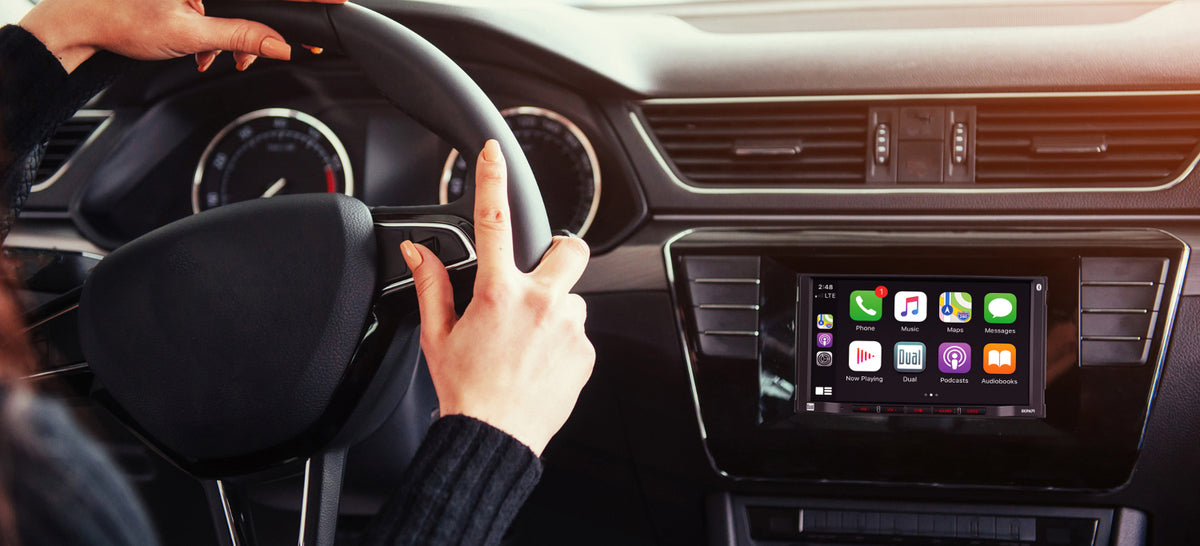

- Double DIN installation; verify the vehicle opening and any required dash kit or wiring adapter.
- Digital media receiver without a CD/DVD mechanism.
- Rear-camera input for an optional backup camera.

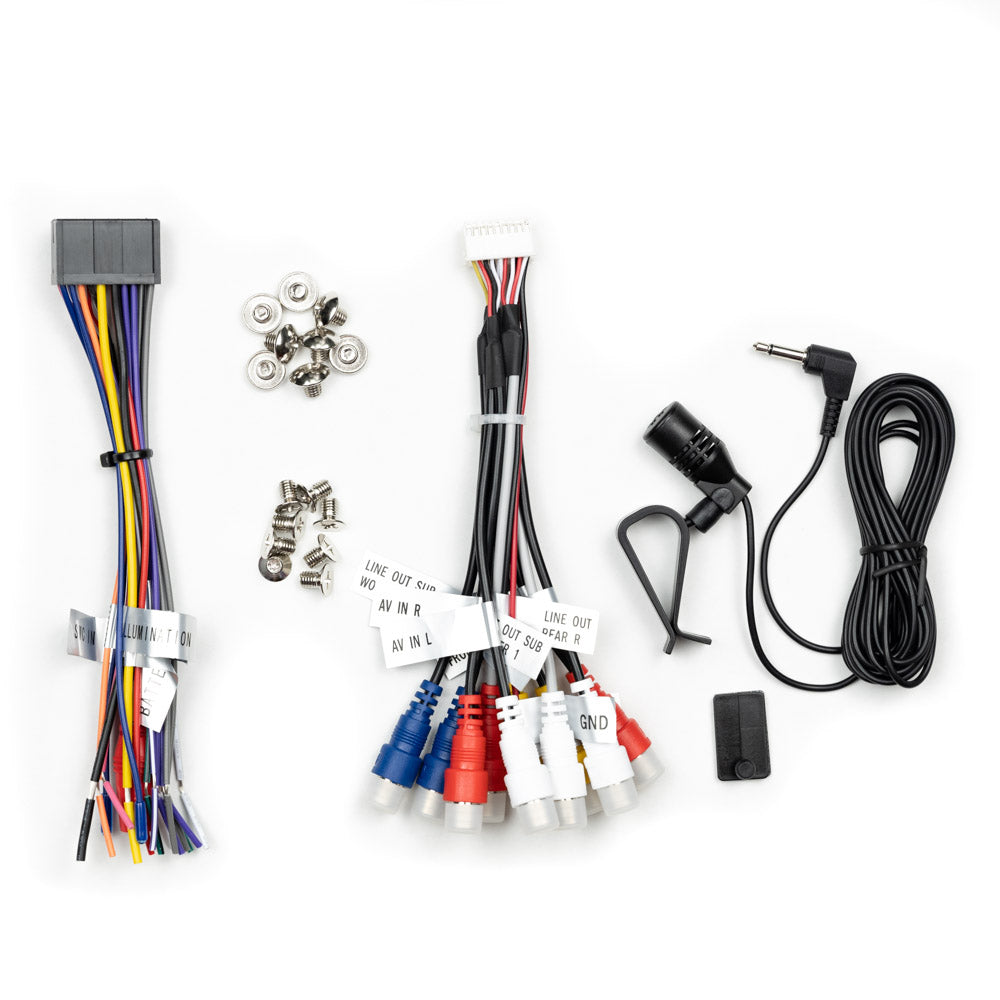

- RCA preamp expansion: 3 Pair (Front + Rear + Sub).
Compatible smartphone integration provides access to supported music, calling, messaging and navigation apps from the receiver or the phone assistant. App and phone compatibility determine available functions.
Specifications
| Stereo Type | AV Receiver |
|---|---|
| Playback | Digital Multimedia |
| Size | Double Din |
| Phone Connectivity | Android Auto, CarPlay, Bluetooth |

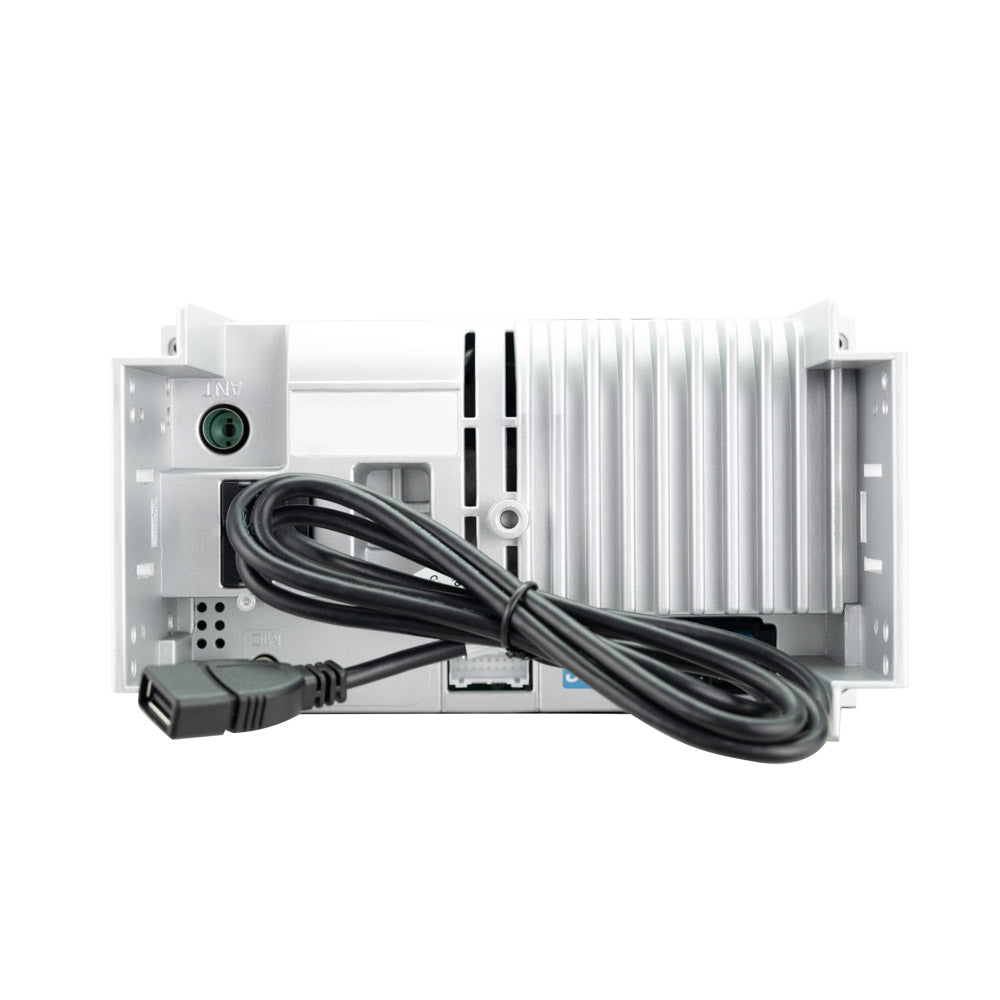

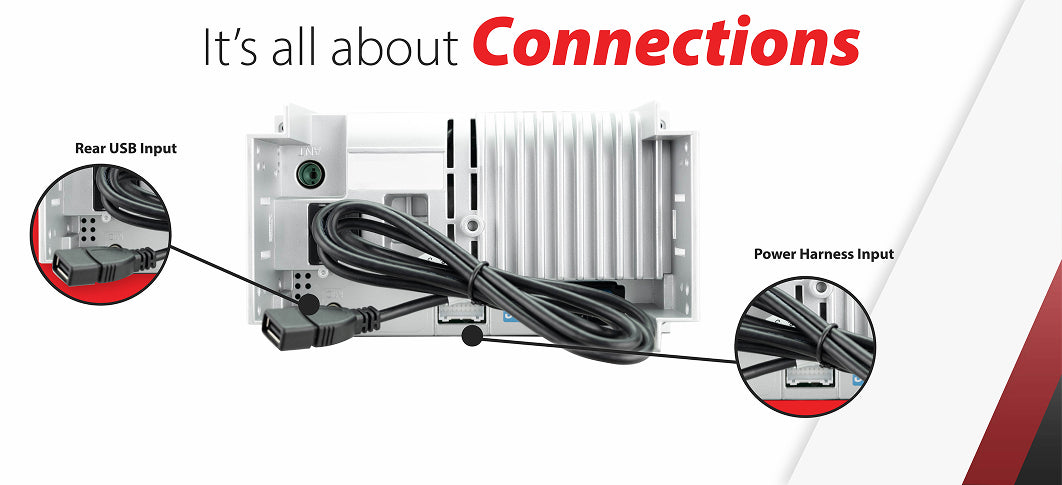

| Inputs | Audio/Video, USB (Rear), Backup Camera |
| File Playback | FLAC, MP3 |
| Amplifier Outputs | 3 Pair (Front + Rear + Sub) |
| Steering Wheel Control Compatible | Yes – Adapter Required |
| Tech Type | Digital Multimedia |
| Screen Size | 7" |
| Peak Power Output | 240W (60W x 4) |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |
| USB Charge | 1.5A |
| Preamp Outputs | 3 Pair (Front + Rear + Sub) |
| Front Panel | Touchscreen |
| Illumination | Red |
| Audio Processing | 8 EQ Presets, 8 Band Graphic EQ, Time Alignment |

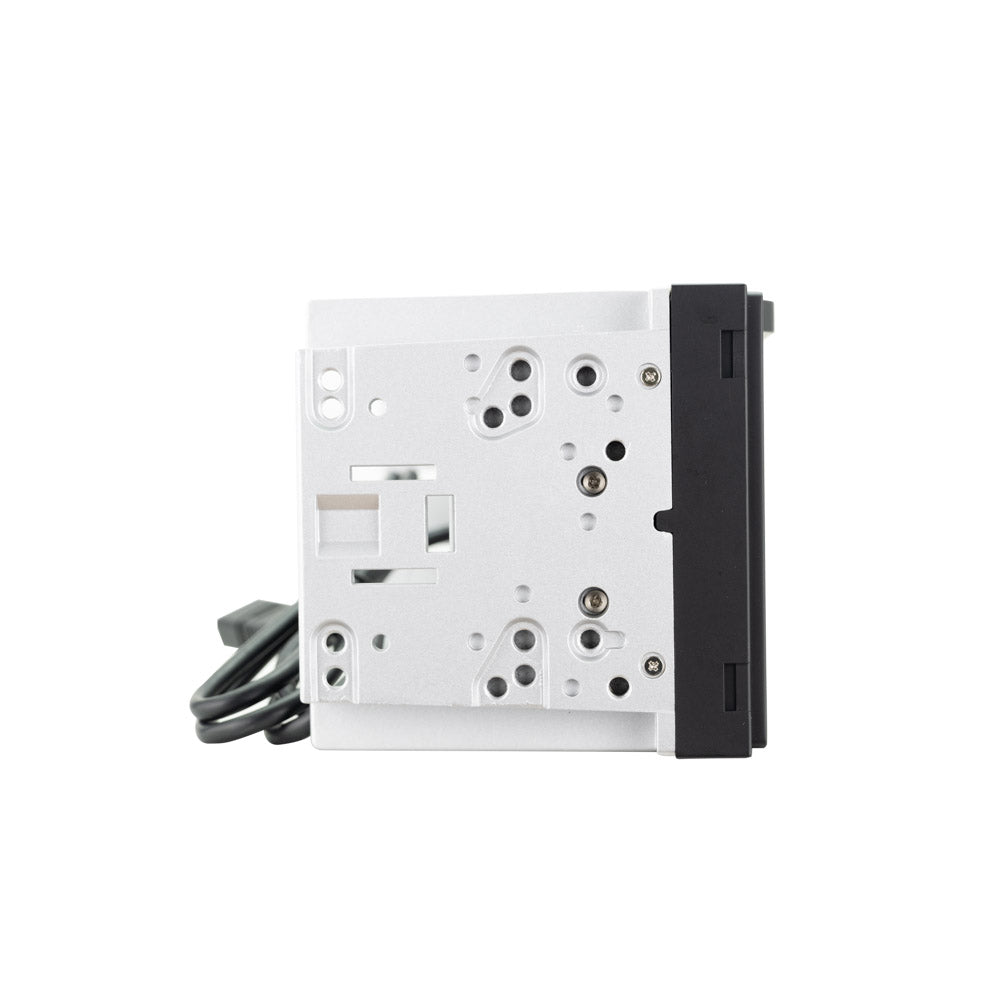

| Chassis Depth | Slim Mount (5.1") |
| AM/FM Receiver | 30 Station presets (18FM/12AM) |
| Installation Size | Double DIN |
Manuals and fitment guides
- Quick Start Guide (English) - PDF
- Owner's Manual (English) - PDF
- Owner's Manual (English) Version B - PDF
- Guía de inicio rápido (Español) - PDF Version A
Manufacturer warranty
Dual advertises an upgrade to a two-year manufacturer warranty when the product is registered within 60 days of purchase; manufacturer eligibility and terms apply.
