Description
Description

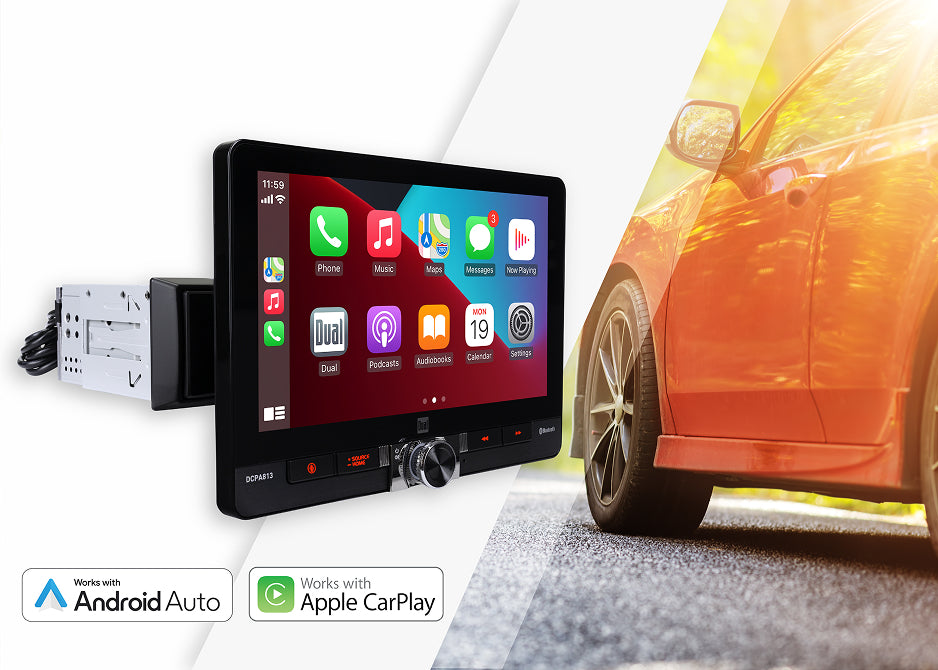

Dual DCPA813 is a floating-screen digital multimedia receiver.
Features
- 8" touchscreen display.
- Wireless Apple CarPlay and Android Auto support for compatible smartphones.
- Bluetooth audio streaming and hands-free calling.
- Voice-activation control for the connected smartphone assistant.
- Built-in amplifier: 240W (60W x 4) peak power.

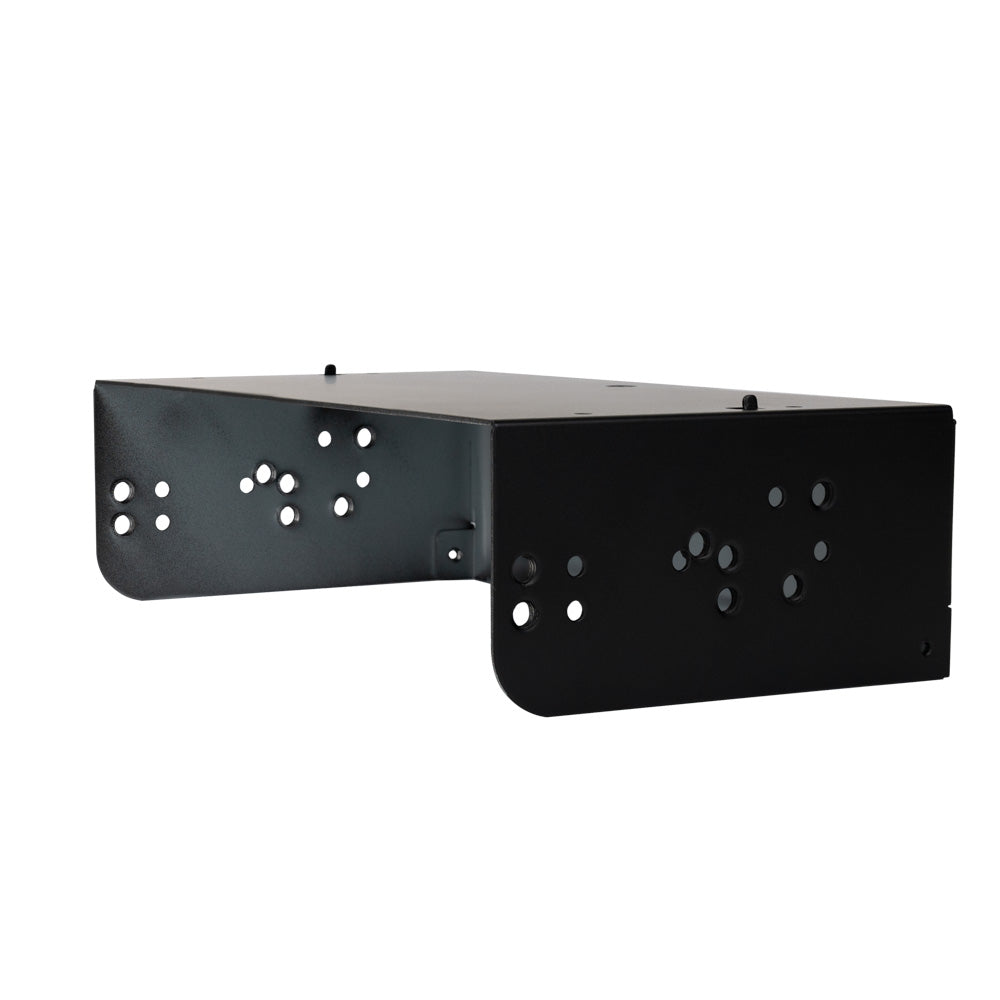

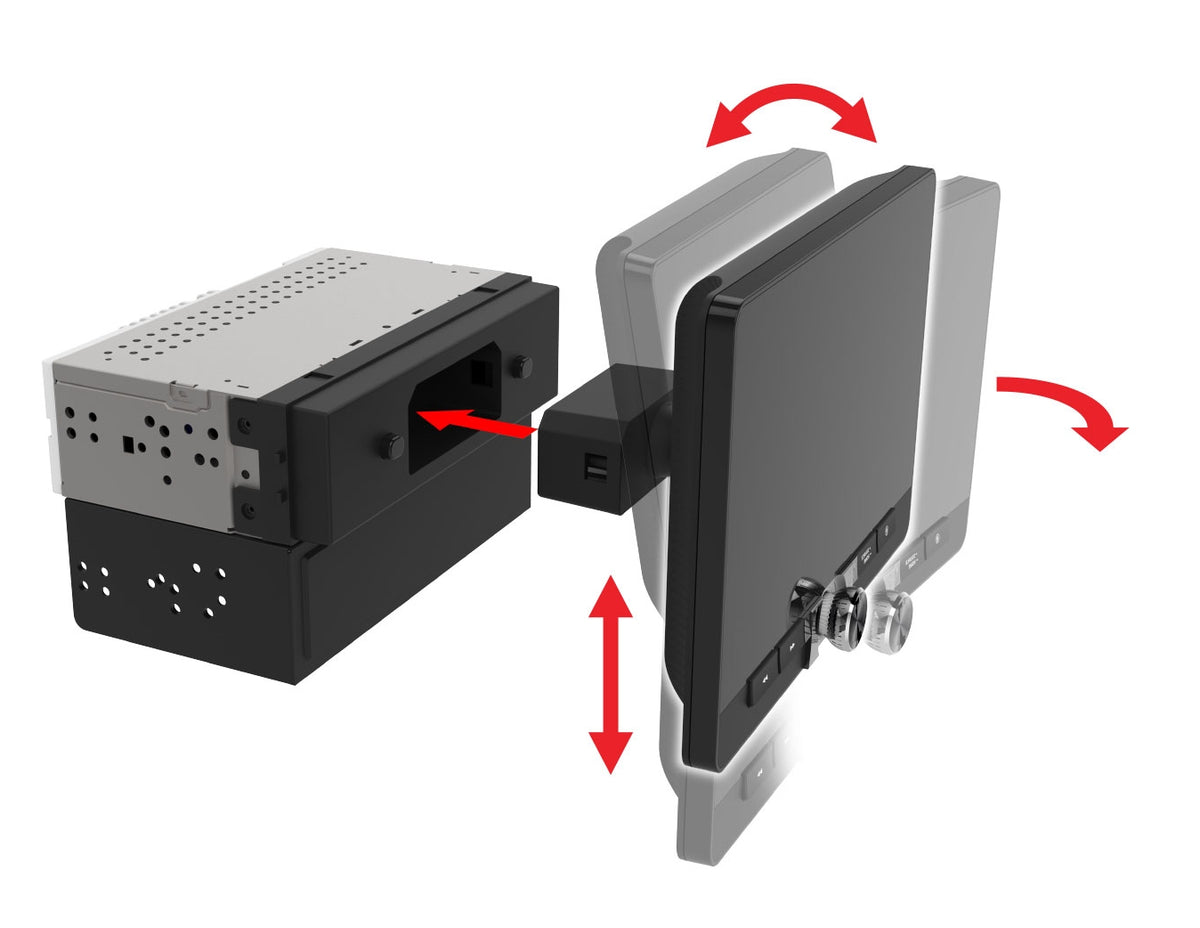

- Single-DIN installation with support for double-DIN openings using the dash-mount adapter. Check the official sizing guide and vehicle installation clearance.
- Digital media receiver without a CD/DVD mechanism.
- Inputs for optional front and rear cameras.
- RCA preamp expansion: 3 Pair (Front + Rear + Sub), Audio/Video.

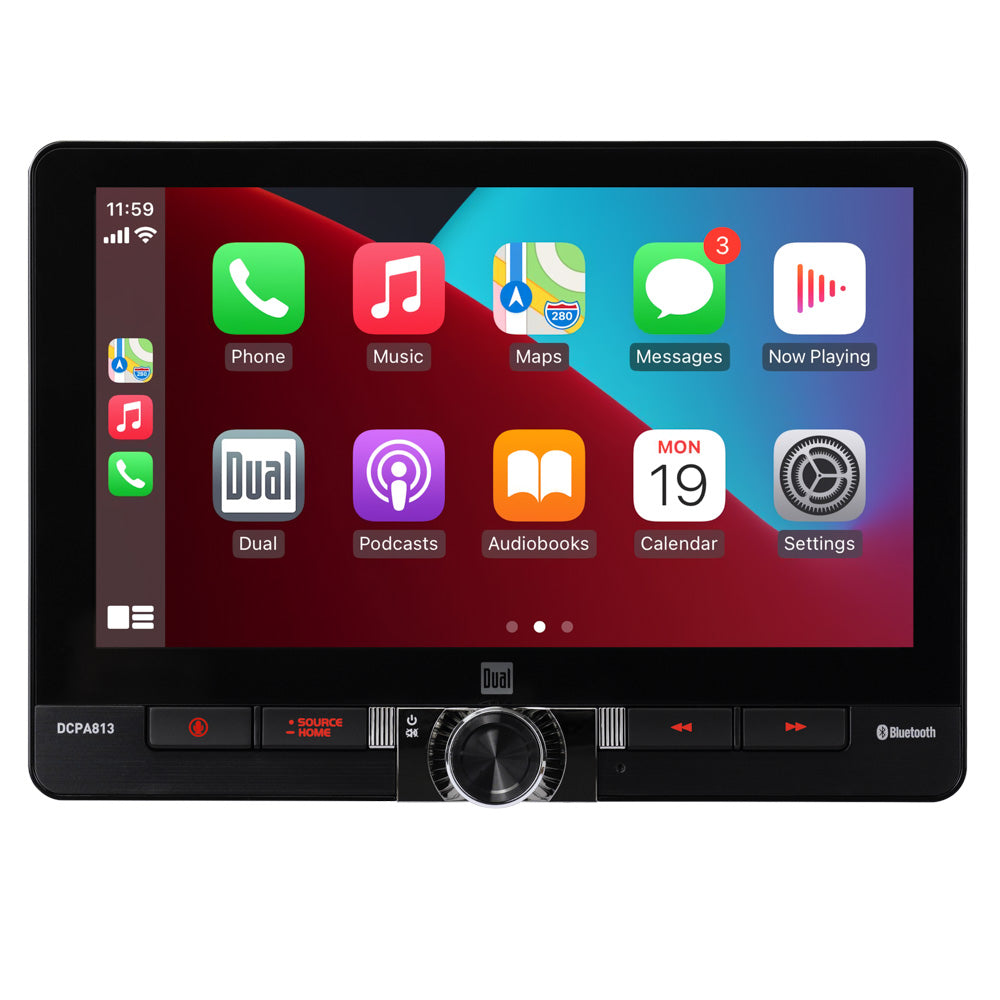

- Adjustable 8-inch touchscreen.
Compatible smartphone integration provides access to supported music, calling, messaging and navigation apps from the receiver or the phone assistant. App and phone compatibility determine available functions.
Specifications
| Playback | Digital Multimedia |
|---|---|
| Screen Size | 8" |
| Peak Power Output | 240W (60W x 4) |
| Phone Connectivity | Android Auto, Android Auto Wireless, CarPlay, CarPlay Wireless, Bluetooth |
| Bluetooth Features | ID3 Tags, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |

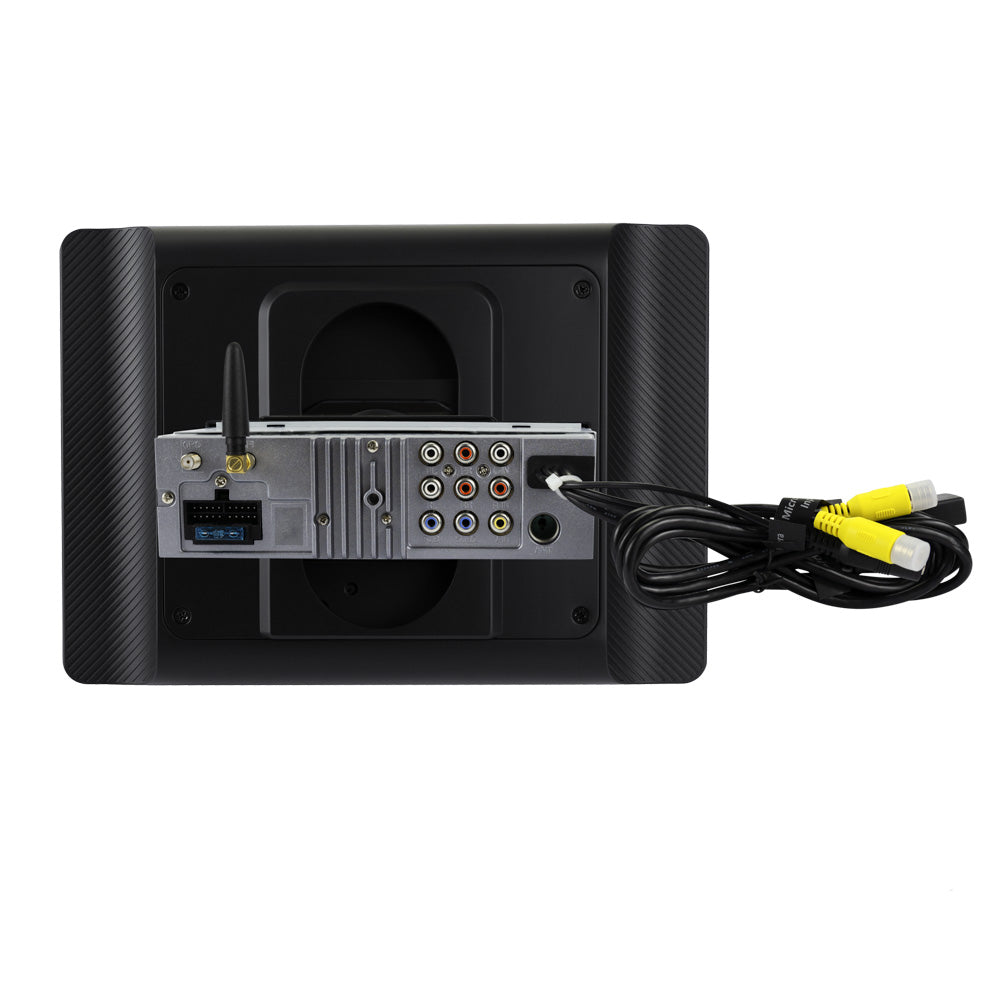

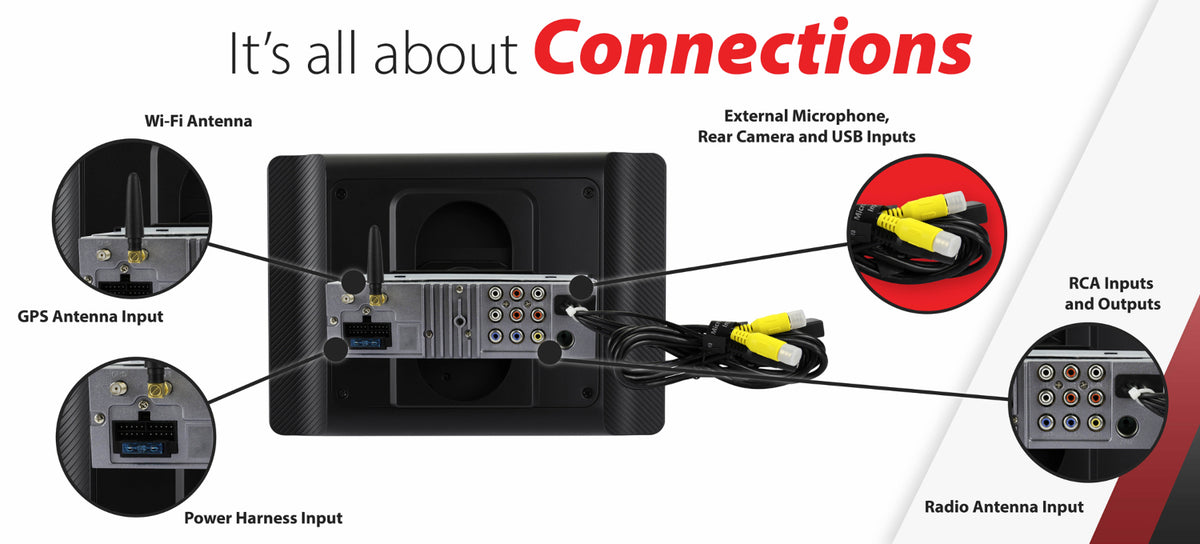

| Inputs | Audio/Video (Rear), USB (Rear), Front Camera, Backup Camera |
| USB Charge | 2.1A |
| File Playback | FLAC, MP3 |
| Preamp Outputs | 3 Pair (Front + Rear + Sub), Audio/Video |
| Audio Processing | 10 Band EQ, 7 EQ Presets |

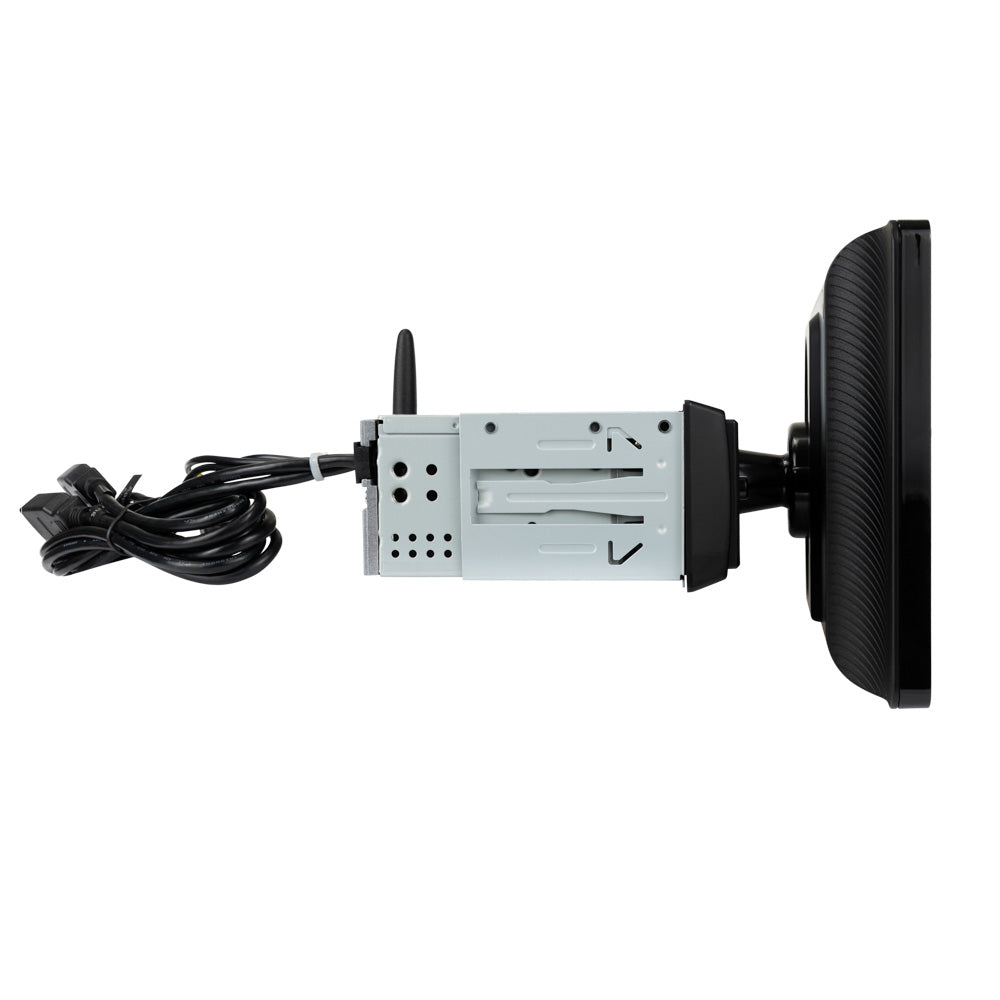

| Chassis Depth | Slim Mount (4.5") |
| Illumination | RGB Customizable |
| Wallpapers | 3 Selectable |
| Steering Wheel Control Compatible | Yes – Adapter Required |
| Crossover | Built-In Subwoofer Crossover (Off/50Hz/80Hz/120Hz/160Hz) |
| Gain Adjustment | Yes – Subwoofer Gain Control |
| Installation Size | Single DIN / Double DIN |

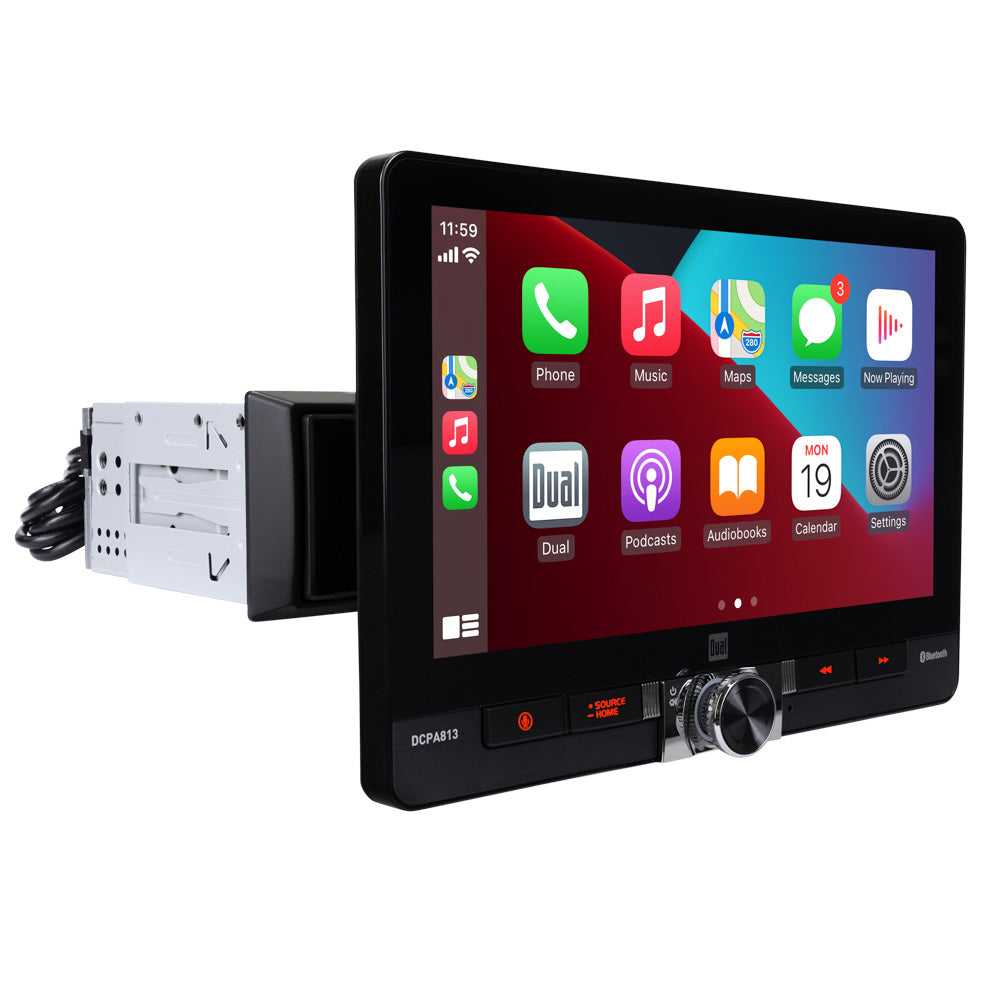

| Display Form | Adjustable floating touchscreen |
Manuals and fitment guides
- Download and Print Size Guide PDF to See if it Fits Your Car
- Owner's Manual (English)
- Owner's Manual (Español)
- 8-inch Sizing Guide Download
Official firmware information and support
Manufacturer warranty
Dual advertises an upgrade to a two-year manufacturer warranty when the product is registered within 60 days of purchase; manufacturer eligibility and terms apply.
