Description
Description

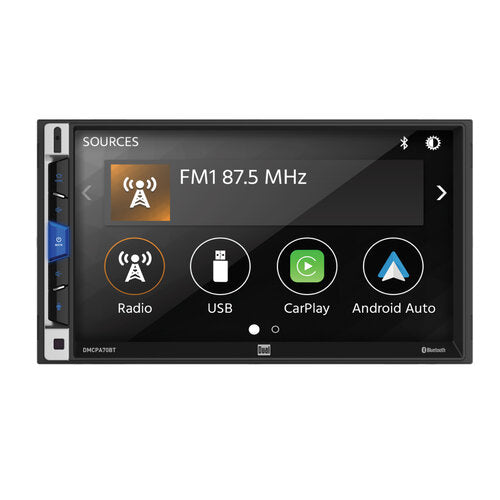

Dual DMCPA70BT is a digital multimedia receiver.
Features

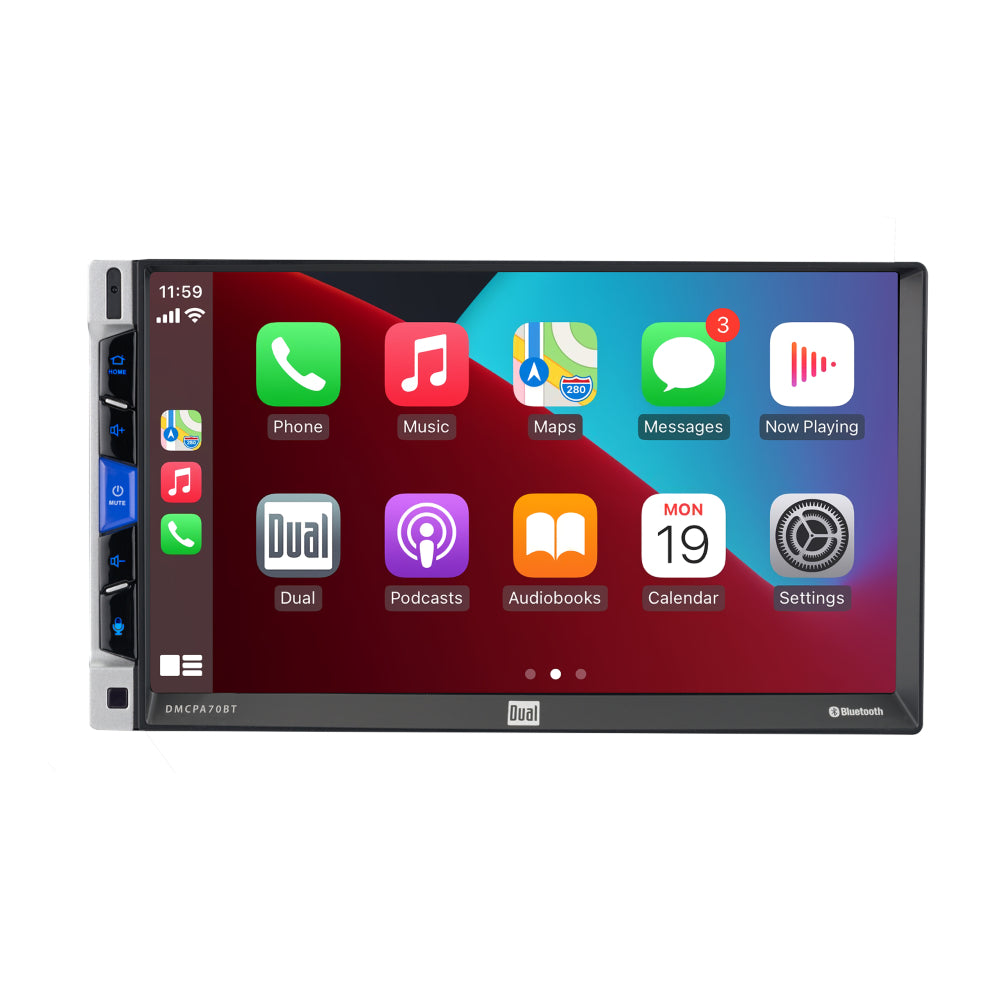

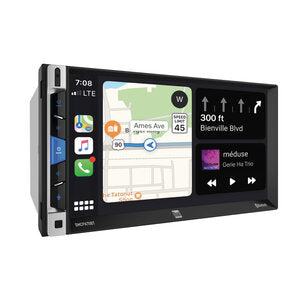

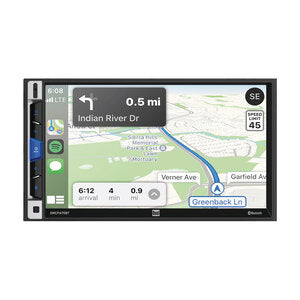

- 7" touchscreen display.
- Apple CarPlay and Android Auto connect through USB with a compatible smartphone.
- Bluetooth audio streaming and hands-free calling.
- Voice-activation control for the connected smartphone assistant.
- Built-in amplifier: 200W (50W x 4) peak power.
- Double DIN installation; verify the vehicle opening and any required dash kit or wiring adapter.
- Digital media receiver without a CD/DVD mechanism.
- Rear-camera input for an optional backup camera.
- RCA preamp expansion: 3 Pair (Front + Rear + Sub).
Compatible smartphone integration provides access to supported music, calling, messaging and navigation apps from the receiver or the phone assistant. App and phone compatibility determine available functions.
Specifications
| Stereo Type | AV Receiver |
|---|---|
| Playback | Digital Multimedia |
| Size | Double Din |
| Phone Connectivity | Android Auto, CarPlay, Bluetooth |
| Amplifier Outputs | 3 Pair (Front + Rear + Sub) |
| Steering Wheel Control Compatible | Yes – Adapter Required |
| Screen Size | 7" |
| Peak Power Output | 200W (50W x 4) |
| Bluetooth Features | Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |

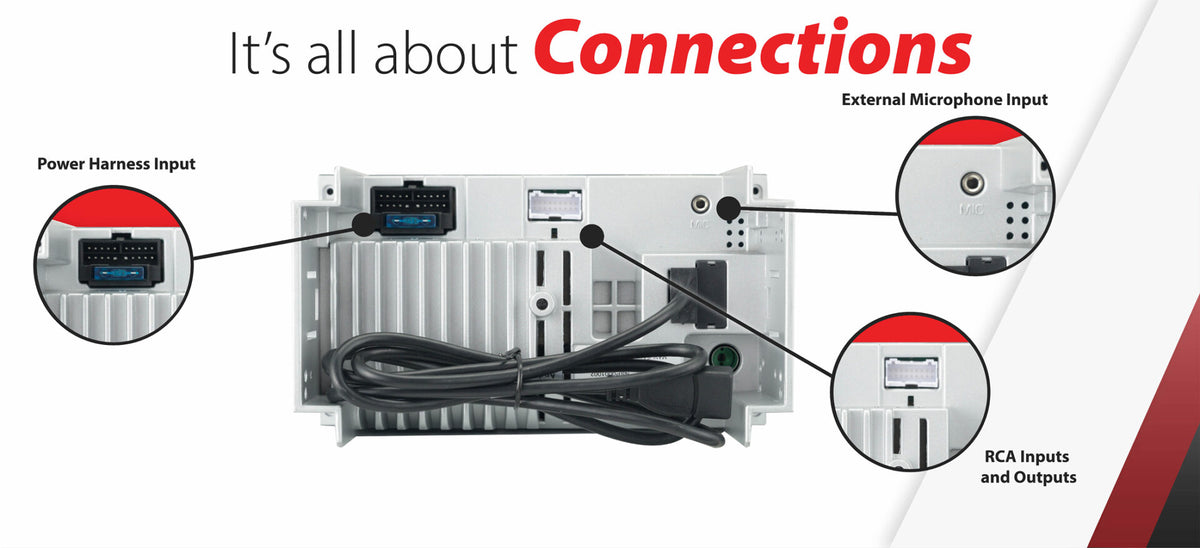

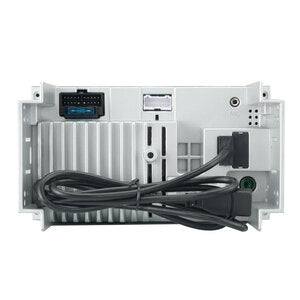

| Inputs - All | Audio/Video (Rear), Backup Camera, USB (Rear) |
| USB Charge | 1.5A |
| File Playback | FLAC, MP3 |
| Preamp Outputs | 3 Pair (Front + Rear + Sub) |
| Front Panel | Touchscreen |
| Illumination | Blue |
| Audio Processing | 8 EQ Presets, 8 Band Graphic EQ, Time Alignment |
| AM/FM Receiver | 30 Station presets (18FM/12AM) |
| Screen Resolution | 1024 x 600 |
| Bluetooth Profiles | HFP, A2DP, AVRCP, PBAP |
| Media Playback | USB |
| Wireless Remote | IR remote included |
| EQ Presets | Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft |
| Installation Size | Double DIN |
Additional specifications
- 7" Extra-large LED backlit touchscreen LCD (1024p x 600p)
- Works with Apple CarPlay™
- Supports Android Auto™
- Built-in Bluetooth with hands-free calling, music streaming with ID3 tags, and phonebook support (HFP, A2DP, AVRCP, PBAP). External microphone.
- AM/FM tuner with 30 stations presets (18FM/12AM)
- Rear USB input with 1.5 Amp fast charging
- Backup camera input (RCA)
- Rear RCA A/V input
- 3 Pair of RCA preamp outputs (Front+Rear+Sub)
- Media playback: USB
- File formats: FLAC/MP3
- Digital media unit – will not play CDs/DVDs
- 8 Band graphic EQ
- 8 EQ presets (Default, Custom, Classic, Rock, Jazz, Electric, Pop, & Soft)
- 200 Watts (50 W x 4) MOSFET
- Steering Wheel Control (SWC) Input (Compatible with most SWC Interfaces)

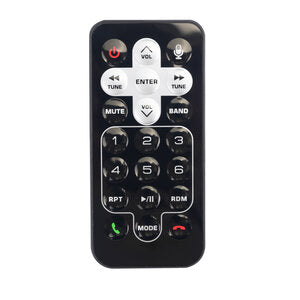

- Wireless IR remote included
Manuals and fitment guides
- Owner's Manual
- Owner's Manual (EN) Version B
- Quick Start Guide (EN)
- Quick Start Guide (Spanish)
- Owner's Manual (Español)
- Owner's Manual (Español) Version B
Official firmware information and support
Manufacturer warranty
Dual advertises an upgrade to a two-year manufacturer warranty when the product is registered within 60 days of purchase; manufacturer eligibility and terms apply.
