Sundown Audio  |  SKU: A-SAEV49005

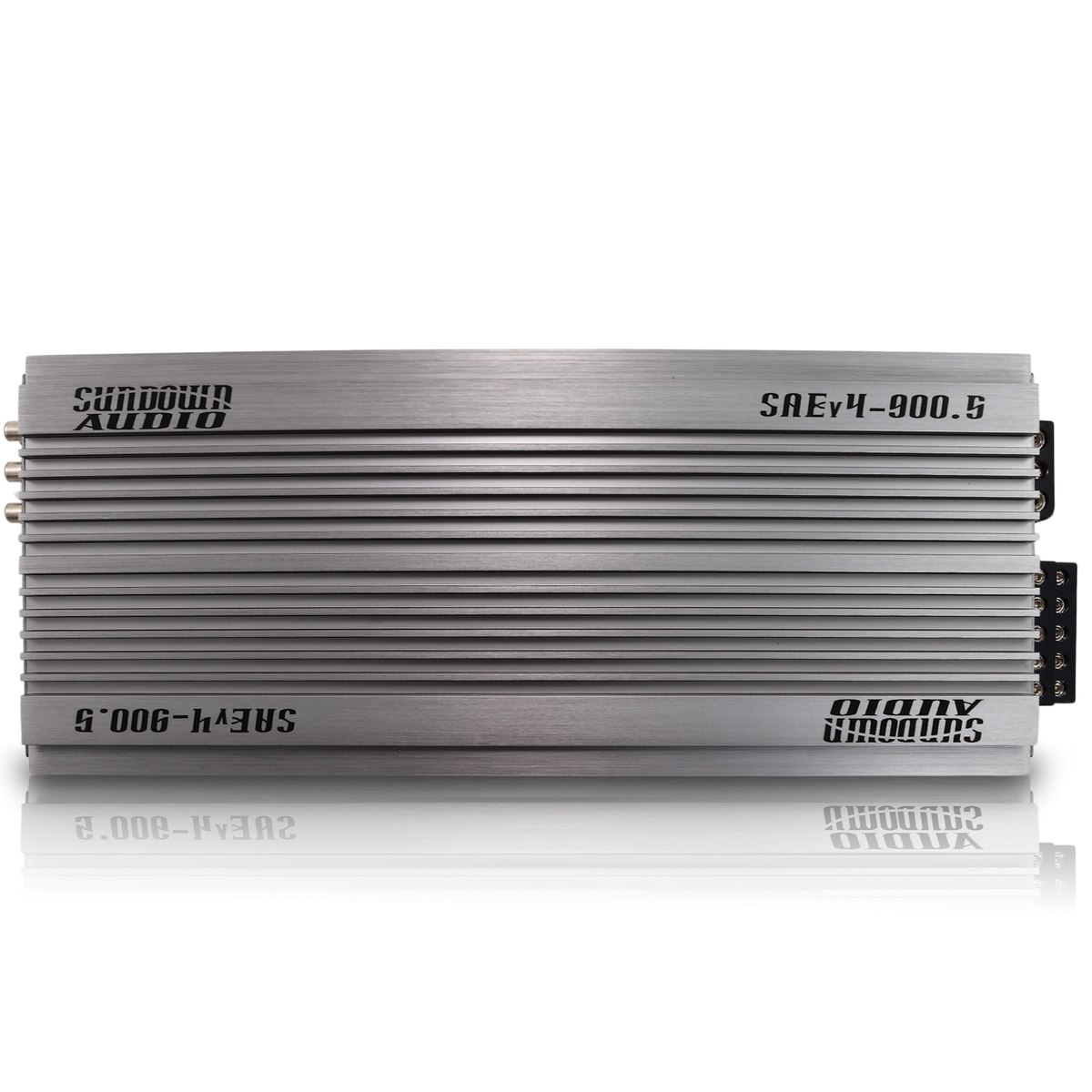

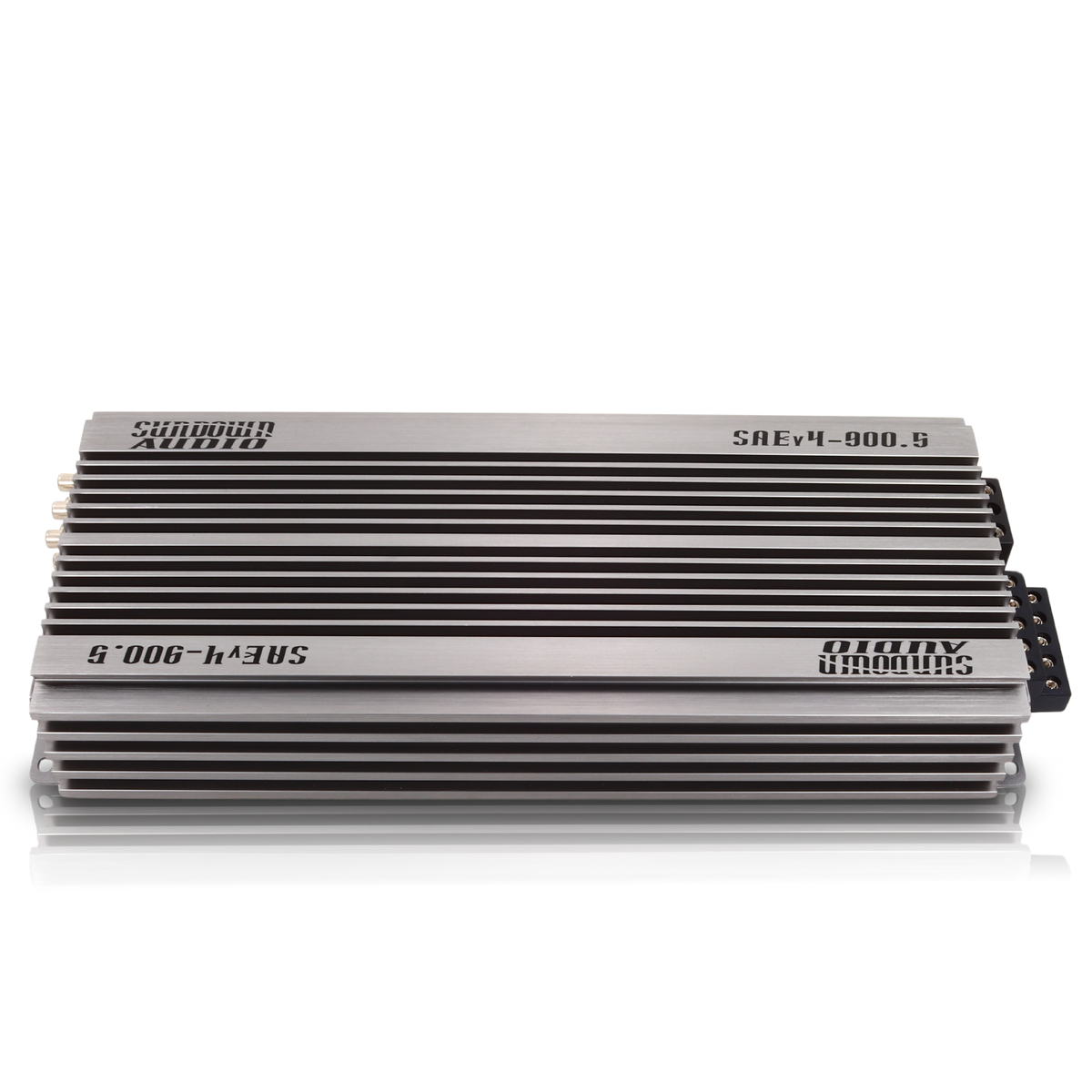

Sundown Audio SAEv4-900.5 5-Channel Amplifier

$459.99
Shipping calculated at checkout.

Key features

  • Amplifier channels: 5
  • Subwoofer-channel RMS at 1 ohm: 500 W
  • Amplifier class: A/B+D
  • Operating voltage: 10.5V – 15.5V
  • Dimensions (L × W × H): 17.36" × 6.3" × 2.75"

Description

The Sundown Audio SAEv4-900.5 is a 5-channel car-audio amplifier. Four speaker channels and a separate subwoofer channel support a complete car-audio system.

Specifications

  • Power CH 1–4 @ 2Ω: 120W × 4
  • Power CH 1–4 @ 4Ω: 80W × 4
  • Sub Channel (CH 5) @ 1Ω: 500W
  • Sub Channel (CH 5) @ 2Ω: 325W
  • Amplifier Class: A/B+D
  • Operating Voltage: 10.5V – 15.5V
  • Signal-to-Noise Ratio: 92 dB
  • Input Sensitivity: 6V max

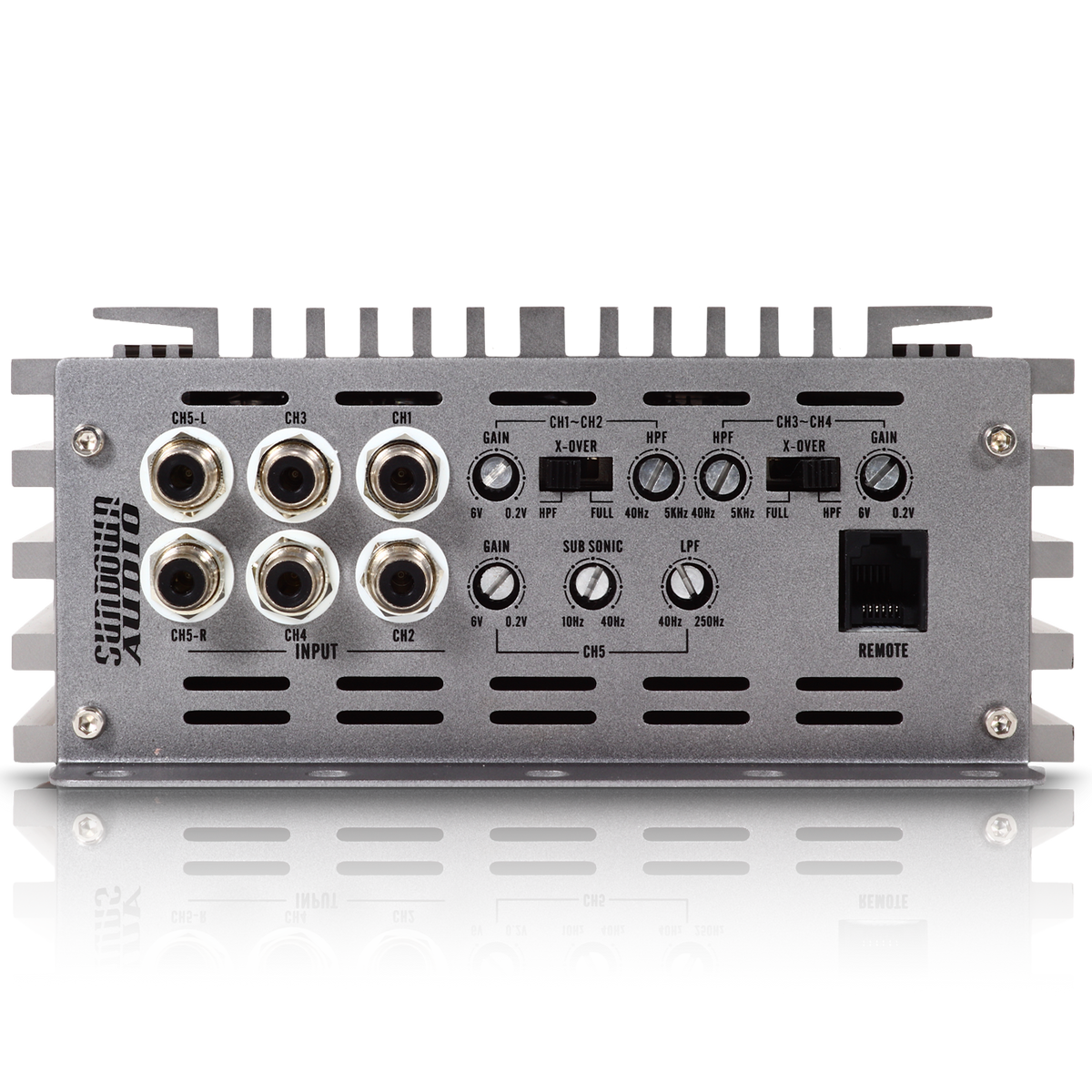

  • High/Low Pass Filter (CH 1–4): 40 Hz – 5 kHz (12 dB variable)
  • Low Pass Filter (CH 5): 40 Hz – 250 Hz (12 dB variable)
  • Subsonic Filter (CH 5): 10 Hz – 40 Hz (12 dB)
  • Fuse Rating: 100A
  • Input Wire Size: 4 Ga
  • Dimensions (L × W × H): 17.36" × 6.3" × 2.75"
