Description
Description

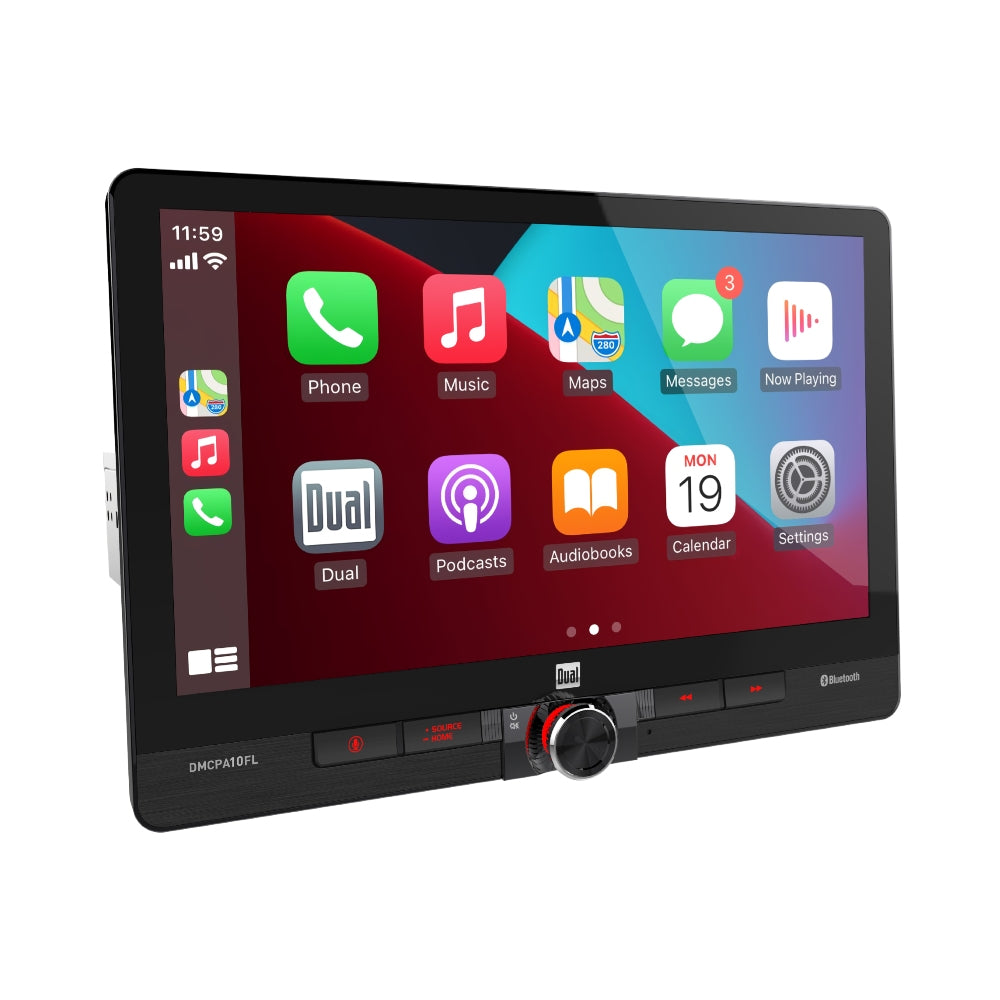

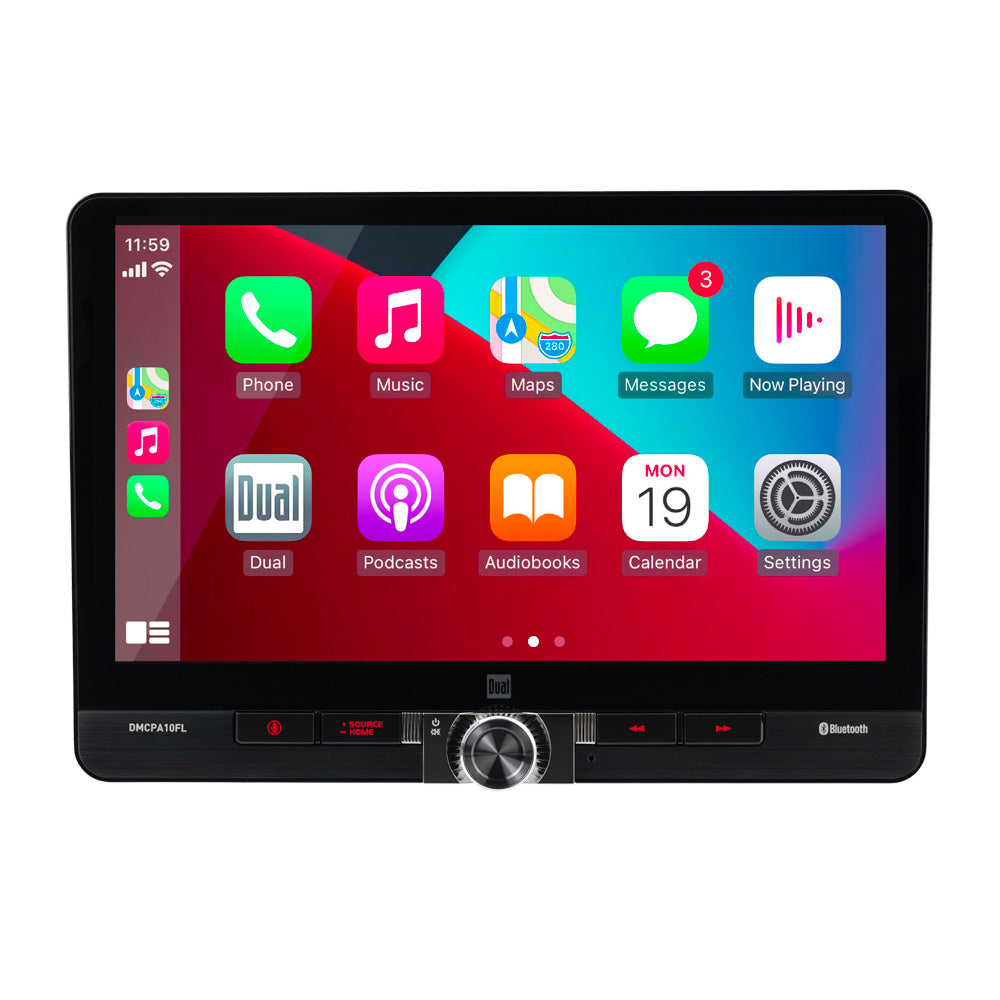

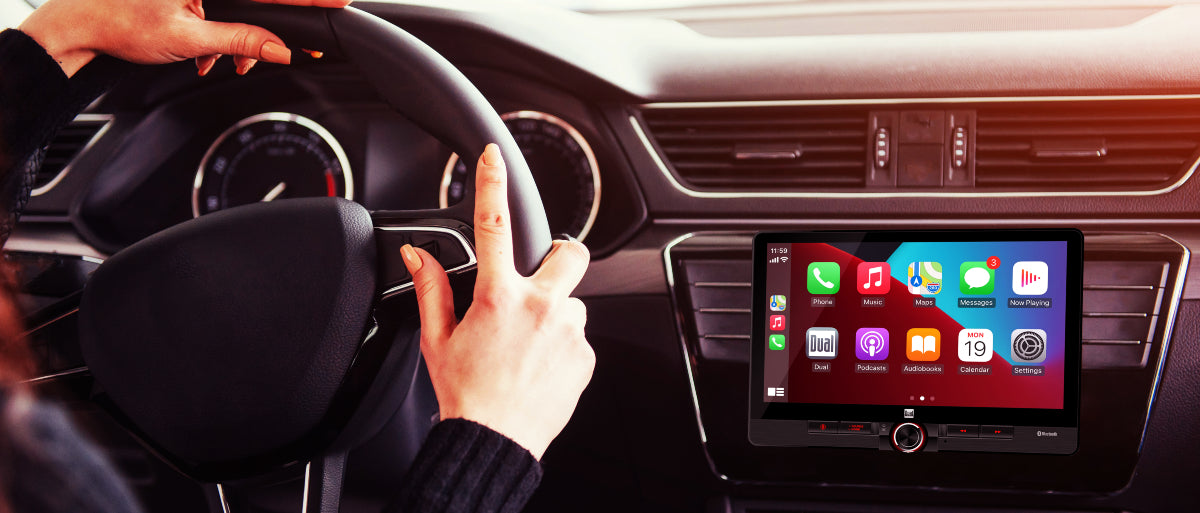

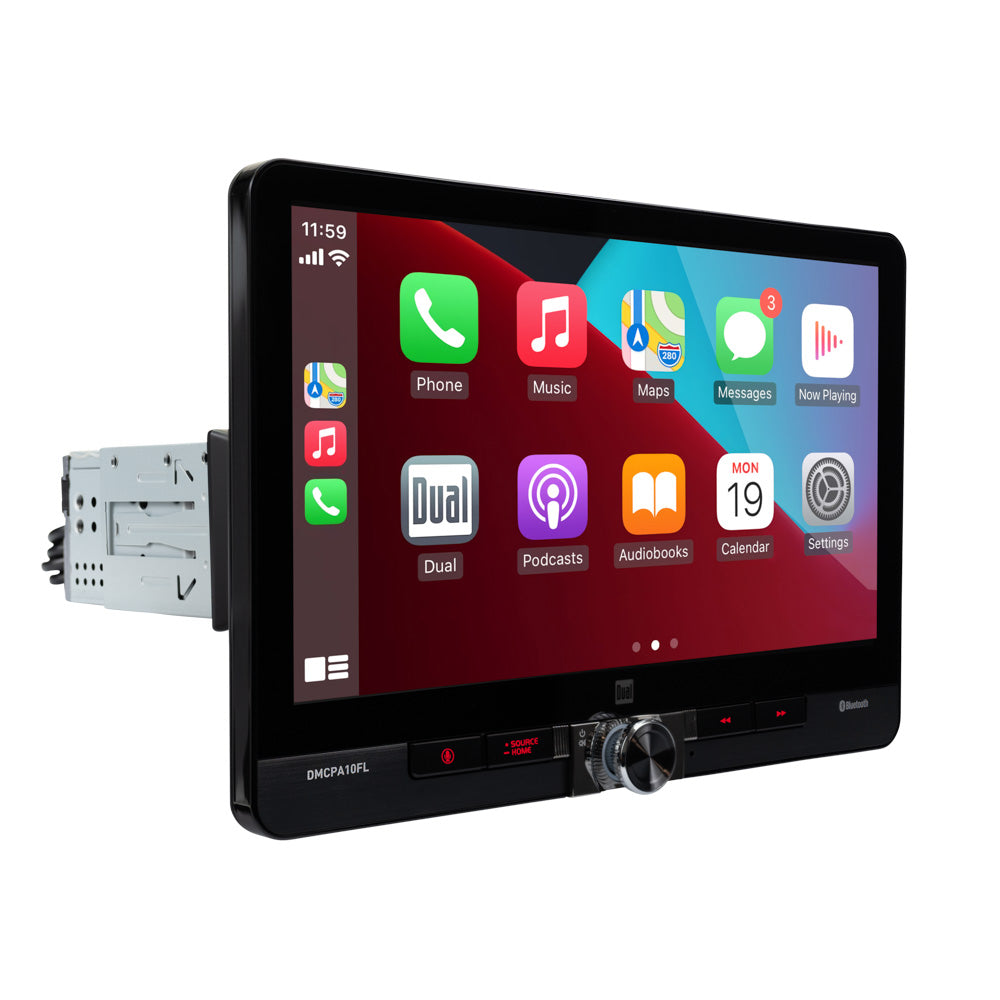

Dual DMCPA10FL is a floating-screen digital multimedia receiver.
Features
- 10.1-inch touchscreen display.
- Wireless Apple CarPlay and Android Auto support for compatible smartphones.
- Bluetooth audio streaming and hands-free calling.
- Voice-activation control for the connected smartphone assistant.
- Built-in amplifier: 240W (60W x 4) MOSFET peak power.

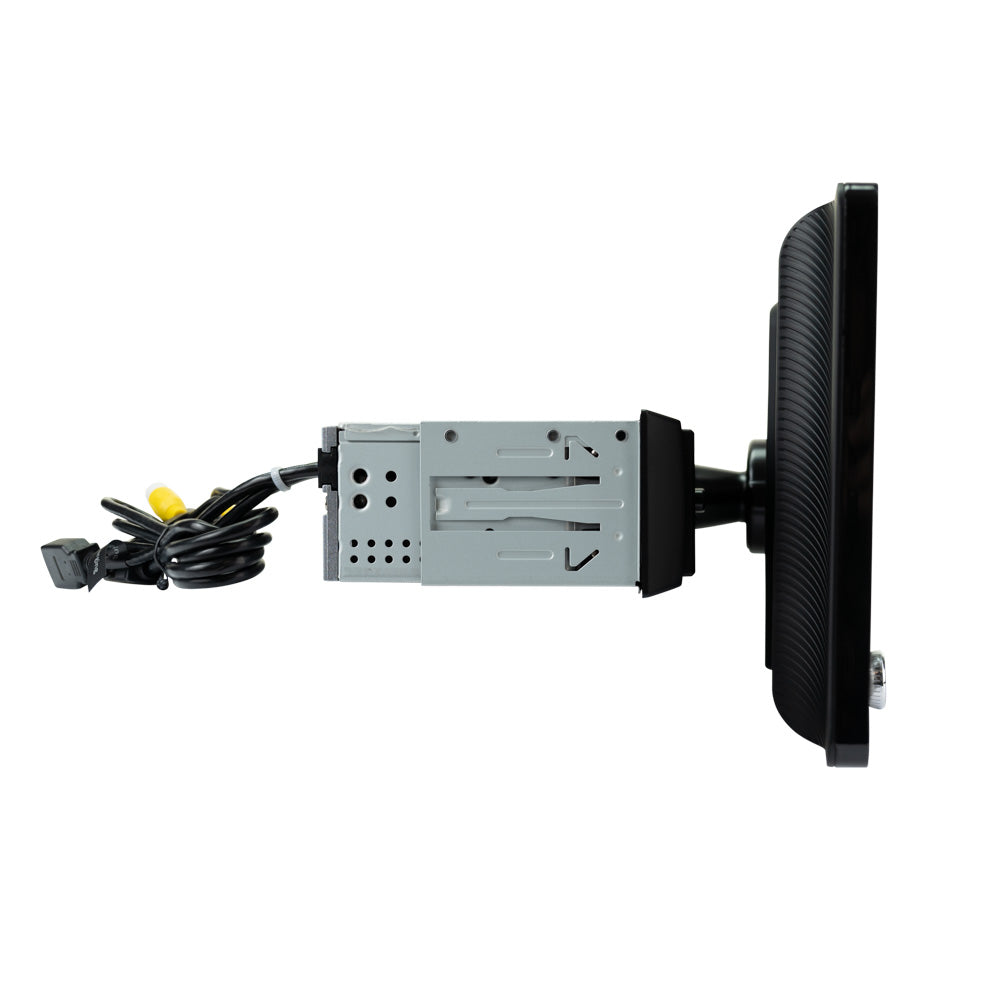

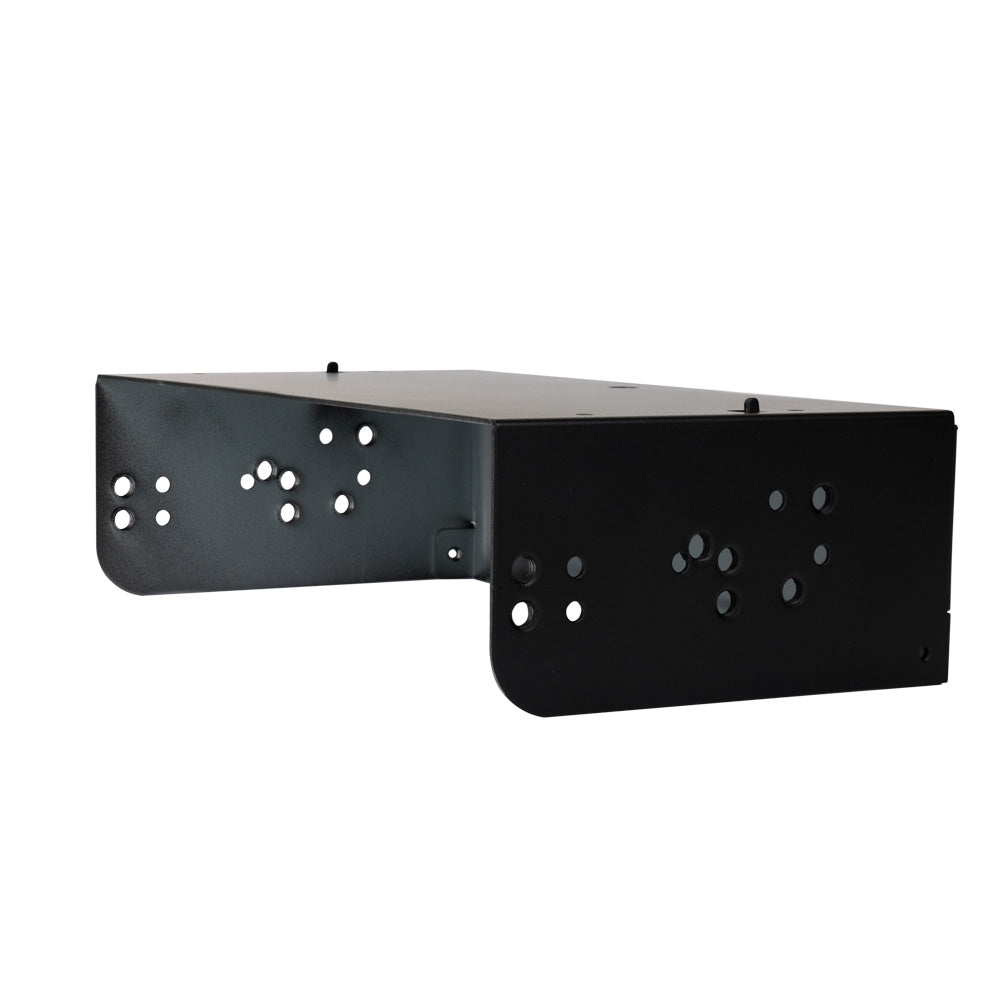

- Single-DIN installation with support for double-DIN openings using the dash-mount adapter. Check the official sizing guide and vehicle installation clearance.
- Digital media receiver without a CD/DVD mechanism.
- Inputs for optional front and rear cameras.
- RCA preamp expansion: 3 Pair (Front + Rear + Sub).

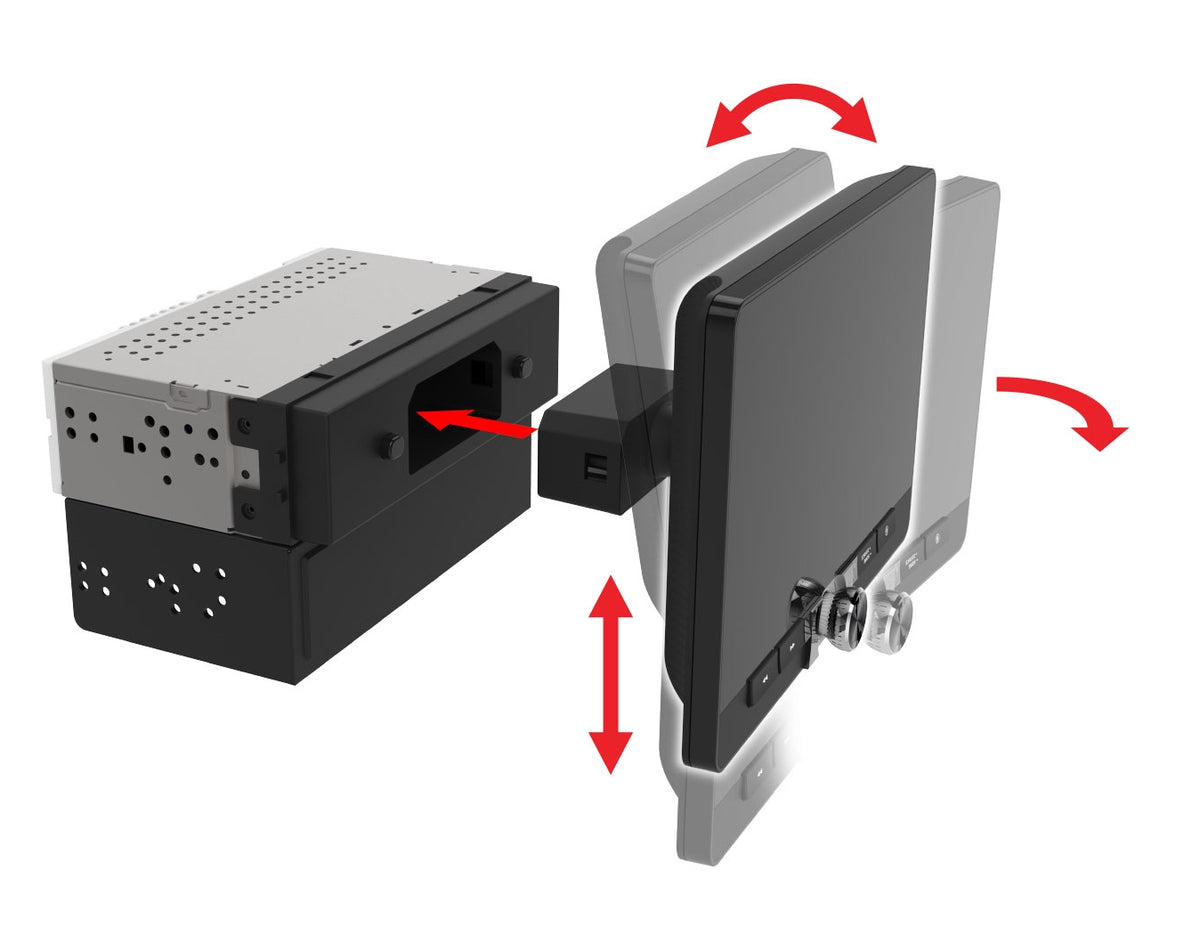

- Adjustable 10.1-inch touchscreen; screen positioning can be changed to suit the installation and viewing angle.
Compatible smartphone integration provides access to supported music, calling, messaging and navigation apps from the receiver or the phone assistant. App and phone compatibility determine available functions.
Specifications
| Stereo Type | AV Receiver |
|---|---|
| Tech Type | Digital Multimedia |
| Screen Size | 10.1 |
| Peak Power Output | 240W (60W x 4) MOSFET |
| Phone Connectivity | Android Auto, Android Auto Wireless, CarPlay, CarPlay Wireless, Bluetooth |
| Bluetooth Features | ID3 Tags, Phonebook Support, Audio Streaming, External Microphone, Hands-free Calling, Voice Activation Button |

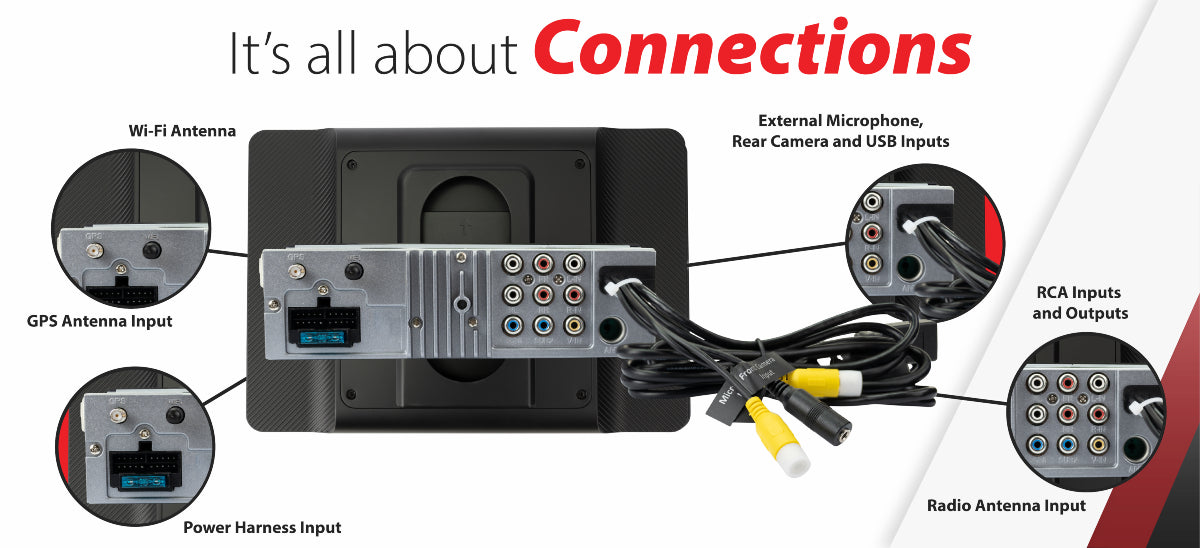

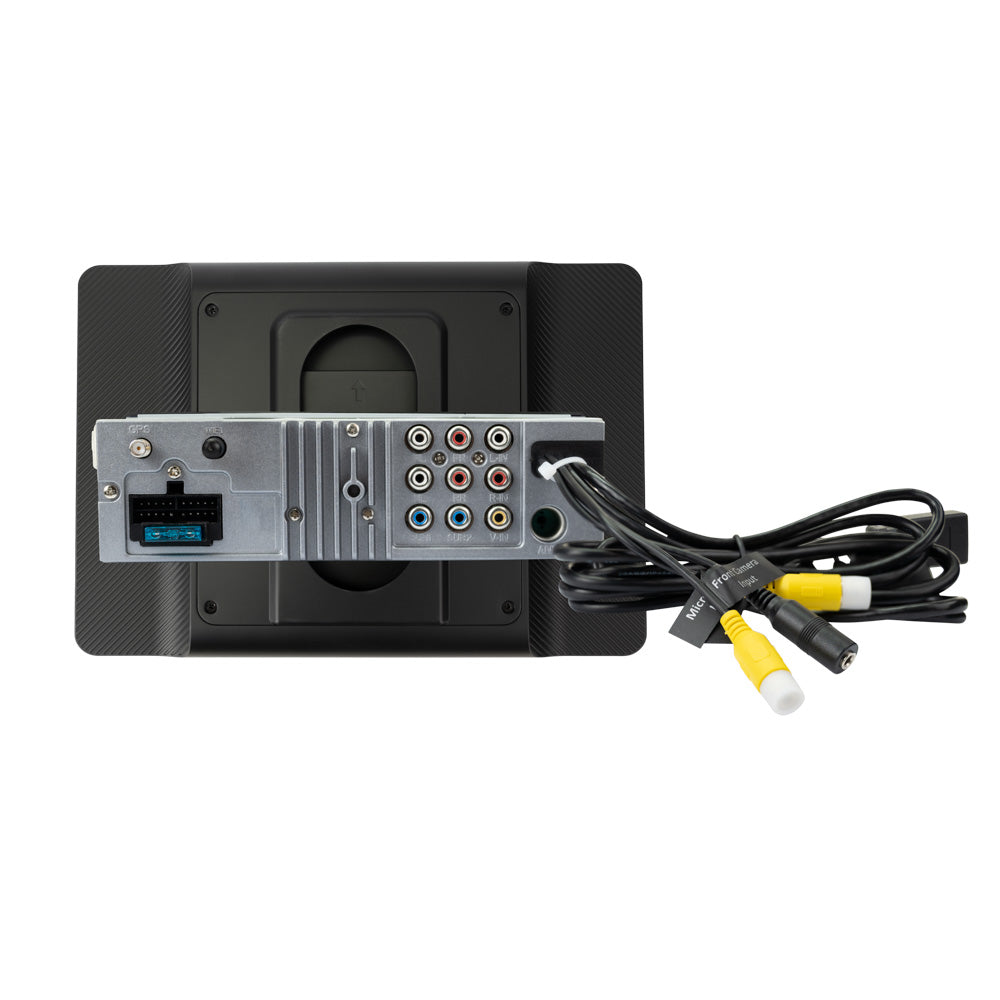

| Inputs | Audio/Video (Rear), USB, USB (Rear), Front Camera, Backup Camera |
| USB Charge | 2.1A |
| File Playback | FLAC, MP3 |
| Preamp Outputs | 3 Pair (Front + Rear + Sub) |
| Front Panel | Touchscreen |
| Audio Processing | 10 Band EQ, 7 EQ Presets |
| Illumination | RGB Customizable |
| Wallpapers | 3 Selectable |
| Steering Wheel Control Compatible | Yes – Adapter Required |
| AM/FM Receiver | 30 Station presets (18FM/12AM), RDS Tuner |
| Installation Size | Single DIN / Double DIN |
| Display Form | Adjustable floating touchscreen |
Manuals and fitment guides
Official firmware information and support
Manufacturer warranty
Dual advertises an upgrade to a two-year manufacturer warranty when the product is registered within 60 days of purchase; manufacturer eligibility and terms apply.
