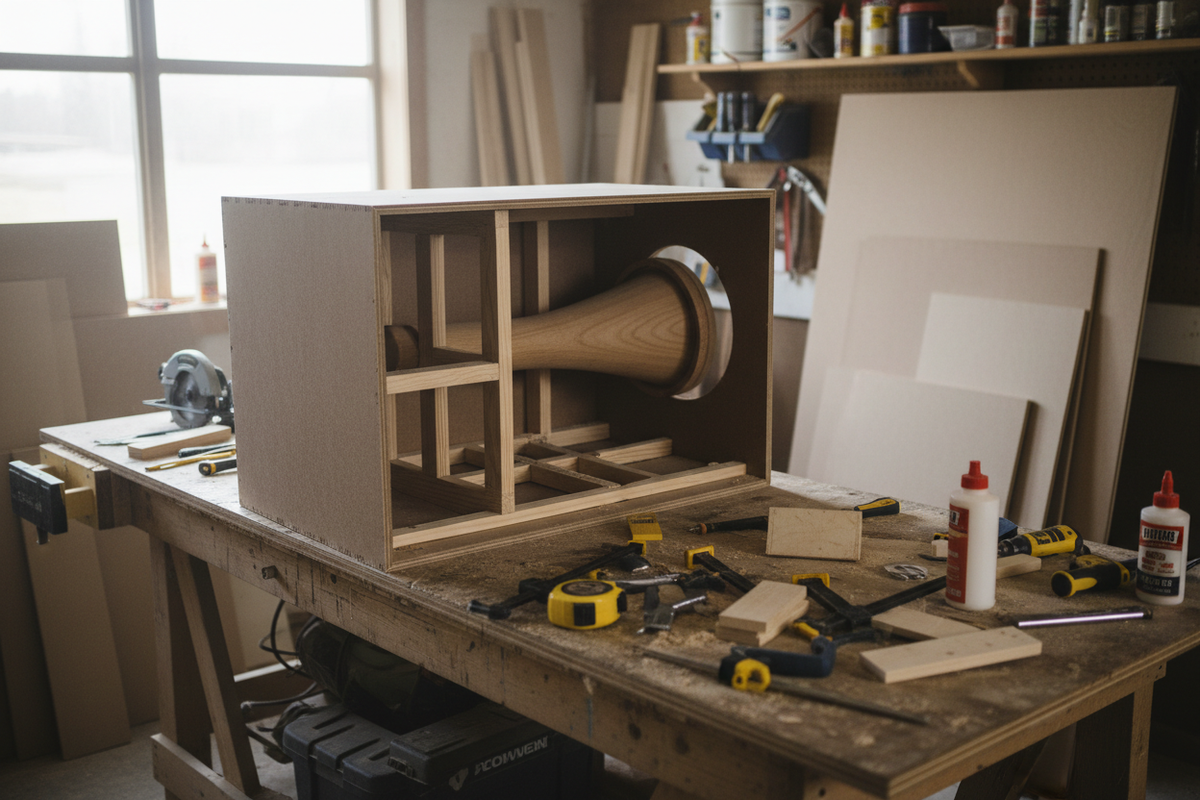

Subwoofer Box Science: Calculating Sealed Volume, Port Area & Tuning Frequency
A subwoofer enclosure is an acoustic system, not empty furniture. Air volume acts like a spring, a port acts like a resonant mass, and every driver, brace and vent changes the net volume the subwoofer actually sees.
The Big Picture
A subwoofer enclosure is an acoustic system, not empty furniture. Air volume acts like a spring, a port acts like a resonant mass, and every driver, brace and vent changes the net volume the subwoofer actually sees.
Gross Volume vs. Net Volume
Use internal dimensions, not outside dimensions. Then subtract driver displacement, port displacement, bracing and anything else occupying airspace. Manufacturer recommendations usually refer to net volume unless stated otherwise.
Material thickness matters twice—once on each opposing wall. A 20-inch outside width built from 0.75-inch material has 18.5 inches of internal width before internal structures.
Sealed Enclosure Behavior
A sealed box uses trapped air as an additional spring. Smaller volume generally raises system Q and reduces deep extension while increasing control demands; larger volume lowers Q until practical and mechanical limits intervene.
Qtc describes the modeled total system Q. The often-cited 0.707 alignment is not a universal requirement, especially inside a vehicle with cabin gain.
Ported Enclosure Tuning
A port and enclosure create a Helmholtz resonator. Tuning depends on net volume, port cross-sectional area, effective length and end correction. Increasing port area while holding tuning and volume constant requires a longer port.
Below tuning, cone excursion can rise rapidly. Correct modeling and a suitable subsonic filter protect the driver.
Port Velocity and Physical Fit
Too little port area can create turbulence, compression and noise. More area reduces velocity but makes the required port longer, consuming more enclosure volume and sometimes creating internal resonances.
A design must fit physically after port length, bends, wall clearance, driver depth and bracing are included. Recalculate net volume after the port is finalized, then iterate.
Worked Car-Audio Examples
Net rectangular volume
Internal dimensions 30 × 14 × 14 inches equal 5,880 cubic inches, or 3.40 ft³ gross. Subtract 0.18 ft³ driver, 0.35 ft³ port and 0.07 ft³ bracing: 2.80 ft³ net.
Round port area
A 6-inch inside-diameter port has radius 3 inches. Area = π × 3² = 28.27 in². Two identical ports provide 56.55 in² total area.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Gross Volume | Interior volume before displacement. |
| Net Volume | Usable airspace after displacement. |
| Port Area | Opening area controlling air velocity. |
| Tuning | Helmholtz resonance of port and enclosure. |
Common Mistakes That Cost Performance—or Equipment
- Using outside dimensions
- Forgetting port and driver displacement
- Choosing port area by a fixed rule alone
- Ignoring excursion below tuning
- Building before checking physical port length
Frequently Asked Questions
Should I use gross or net box volume?
Use net airspace for comparing with most manufacturer enclosure recommendations, unless the specification explicitly says gross.
Is a ported box always louder?
It can be more efficient near tuning, but output, bandwidth and sound depend on alignment, driver and vehicle.
What happens if the port is too small?
Air velocity can become excessive, causing noise, compression and reduced useful output.
Does a longer port tune lower?
With box volume and port area held constant, increasing effective port length generally lowers tuning.
Can I fold a slot port?
Yes, if effective centerline length, cross-section, bends and clearances are designed correctly.
What is Qtc?
The total Q of a driver in a sealed enclosure, describing damping around system resonance.
Do I need a subsonic filter?
Ported systems often benefit from one, particularly with high power or content below tuning. Select it from the modeled design.
