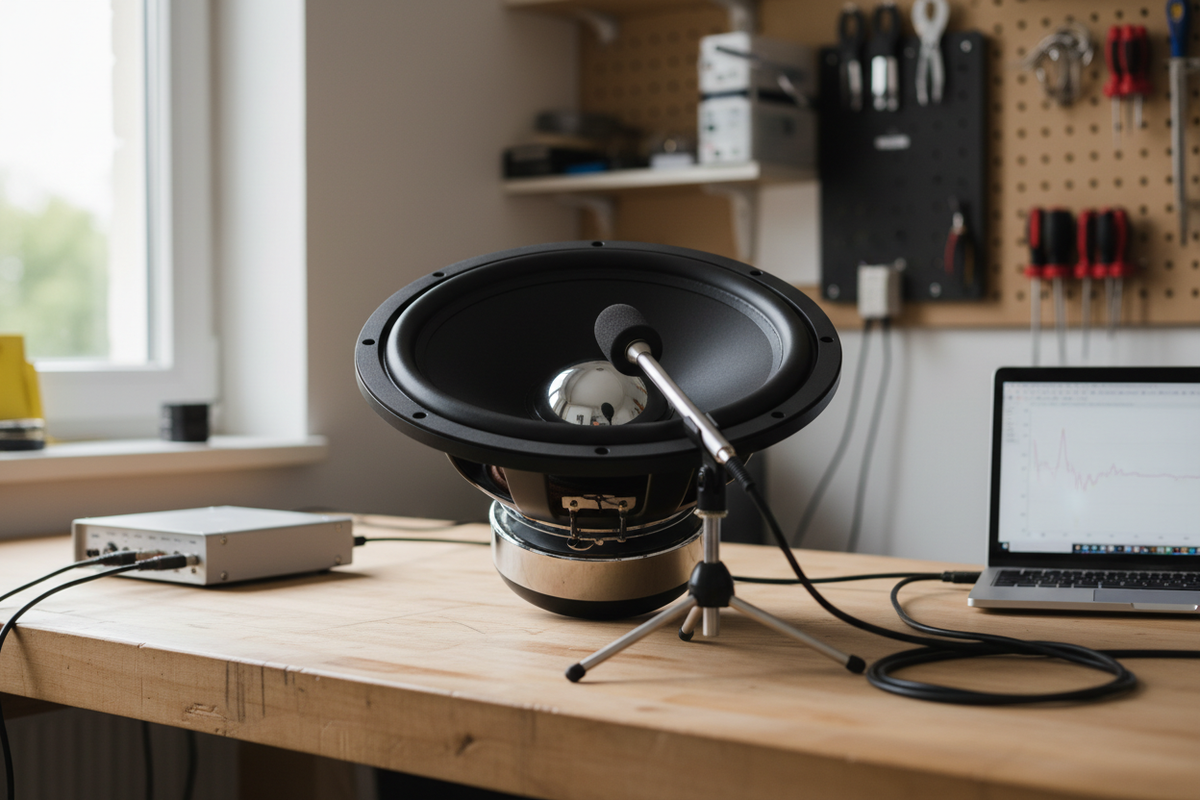

Thiele/Small Parameters Explained: How to Read Subwoofer Specifications
Thiele/Small parameters are not a scoreboard. They are a connected set of measurements used to model how a low-frequency driver behaves—especially near resonance and inside an enclosure.
The Big Picture
Thiele/Small parameters are not a scoreboard. They are a connected set of measurements used to model how a low-frequency driver behaves—especially near resonance and inside an enclosure.
Fs, Re and the Starting Point
Fs is the driver’s free-air resonance, where moving mass and suspension compliance interact. Re is DC resistance measured at the voice coil and is normally lower than nominal impedance.
A lower Fs does not automatically mean deeper or better bass. Enclosure alignment, motor strength, moving mass, excursion and available power work together.
The Q Family
Qms describes mechanical damping, Qes electrical damping and Qts their combined total. Lower Q indicates greater damping; higher Q indicates a more pronounced resonant tendency.
Rules that assign sealed or ported solely from Qts are rough screening tools. Model the complete driver in the intended enclosure and power range.
Vas, Cms, Mms and BL
Vas translates suspension compliance into an equivalent air volume. Cms is mechanical compliance, Mms moving mass and BL reflects motor force factor. These parameters influence efficiency, resonance and transient behavior together.
A large Vas is not enclosure volume. It is an equivalent compliance value used in equations and modeling.
Xmax, Sd and Displacement
Xmax is a stated linear one-way excursion limit; Sd is effective piston area. Their product estimates displacement volume. More displacement supports more low-frequency output before excursion limits, all else equal.
Compare Xmax definitions carefully. Geometric, Klippel-derived and manufacturer-specific methods may not be directly equivalent.
Worked Car-Audio Examples
Combined Q
For Qes 0.50 and Qms 5.0: Qts = (0.50 × 5.0) ÷ (0.50 + 5.0) = 0.455.
Displacement comparison
A driver with 500 cm² Sd and 2.0 cm one-way Xmax has Vd = 1,000 cm³, or one liter of one-way linear displacement by that simplified calculation.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Resonance | Fs describes free-air resonant frequency. |
| Damping | Q values describe mechanical/electrical control. |
| Compliance | Vas expresses suspension compliance as air volume. |
| Displacement | Sd and Xmax help estimate swept volume. |
Common Mistakes That Cost Performance—or Equipment
- Choosing by one specification
- Treating Vas as recommended box volume
- Comparing unlike Xmax methods
- Assuming low Fs guarantees deep in-car response
- Ignoring thermal and mechanical power limits
Frequently Asked Questions
What does Qts mean?
It is the driver’s total Q at resonance, combining electrical and mechanical damping.
Is lower Fs always better?
No. It is one input among many and must be considered with the enclosure and other parameters.
What is Vas?
An equivalent air volume representing suspension compliance—not a direct box-size recommendation.
Why is Re lower than rated ohms?
Re is DC resistance; nominal impedance describes an AC operating classification.
What does BL measure?
Motor force factor: magnetic flux density multiplied by conductor length in the field.
What is Xmax?
A manufacturer-defined linear excursion rating, usually one-way. Verify the definition when comparing drivers.
Can T/S parameters predict SPL perfectly?
They support useful low-frequency models, but real output also depends on nonlinear behavior, power compression, cabin, enclosure losses and installation.
