Choosing between Lucas Lighting L1, L2 and L3 bulbs starts with the application, not the series number. For an off-road lighting project, the useful questions are practical: which bulb belongs in the housing, how much room is available behind it, and what does the vehicle's lighting circuit require?
12 Volt Outlet carries these three Lucas Lighting series. This guide helps narrow that selection before you order.
For Off-Road Use Only. All Lucas Lighting L1, L2 and L3 bulbs sold by 12 Volt Outlet are offered for off-road use. A matching bulb number does not establish public-road suitability.
Start with the bulb number and its job
Identify the original bulb designation and the lamp position you want to replace. Record the vehicle's year, make, model, trim and factory lighting configuration, then check the application information against the actual bulb. Separate the headlight and fog-light requirements rather than assuming they use the same part.
Keep that designation attached to every comparison. An H11 listing and an H7 listing describe different applications, even when both belong to L1. Likewise, moving from L1 to L3 does not settle the fitment question. Compare the series options available for your confirmed bulb application first.
Plan space for the bulb and controller

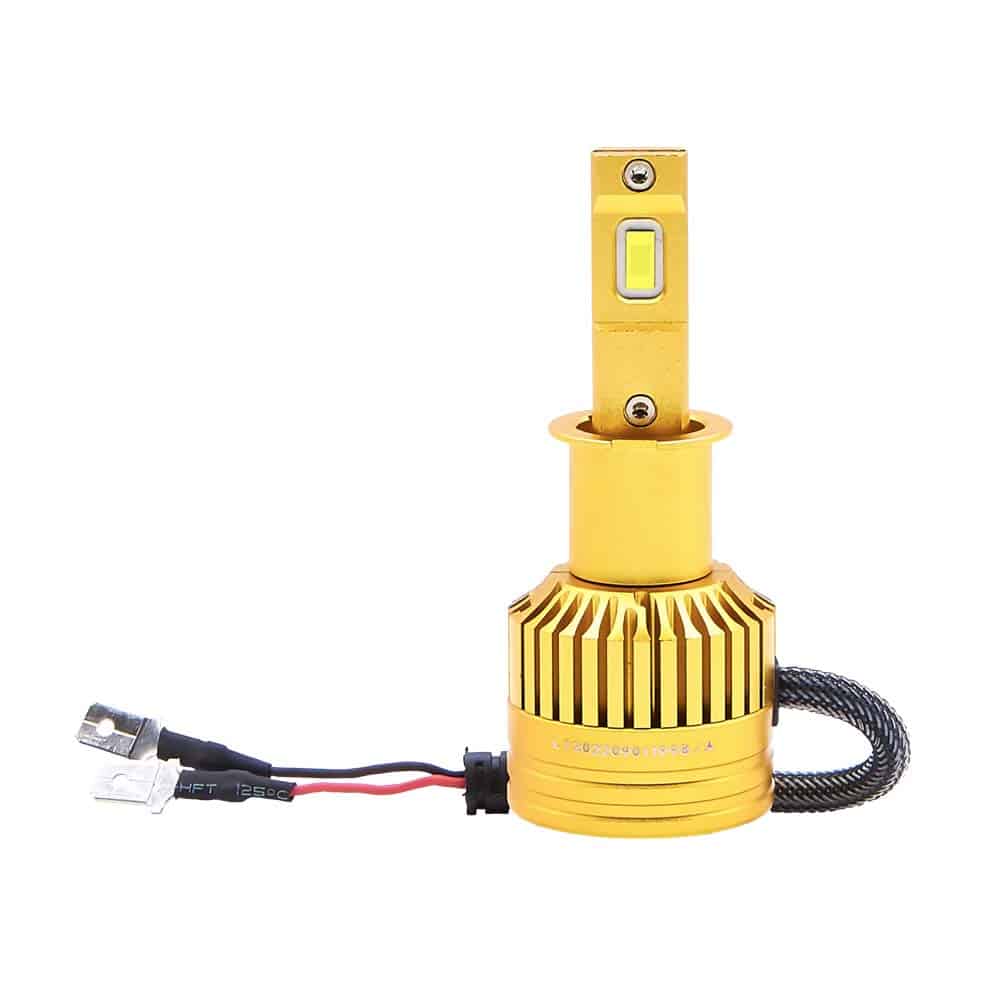

Lucas describes L1 as using a connector tail. L2 and L3 use a separate control box, so the space behind the lamp must accommodate more than the bulb itself.
The manufacturer identifies L2 as having the smallest bulb body in its L Series, with a side-facing fan. That makes the exact dimensions worth investigating when rear clearance is limited, but it is not a guarantee that L2 fits your housing. The controller still needs a suitable location, and the wiring route needs consideration.
Before choosing a series, inspect the rear cover, retaining hardware and accessible space. Compare the exact product's dimensions and installation instructions with that housing. Avoid deciding from a front-facing product photo alone: it cannot show the room available inside your vehicle.
Check the circuit before stepping up to L3
One important L3 restriction deserves a separate check. Lucas says this series must not be used on circuits rated below 35 watts, and specifically warns against replacing an H16 bulb with L3-H11. Do not treat a connector match or a general bulb cross-reference as permission to ignore that limit.
L2 and L3 also have CAN bus support, but Lucas does not describe that as universal compatibility. Some vehicles still need a decoder, including certain applications with pulse-width-modulated lighting circuits. A decoder addresses an electrical requirement; a mounting adapter addresses how the bulb is retained. Confirm each separately rather than treating them as interchangeable accessories.
Build a short checklist before ordering
- Application: Write down the original bulb number, lamp position and vehicle configuration.
- Physical fit: Check rear clearance, mounting hardware and space for any separate controller.
- Electrical fit: Confirm circuit requirements and any decoder need. For L3, verify the 35-watt minimum circuit restriction.
- Package contents: Read the exact listing for supplied parts. The L1, L2 and L3 bulb listings are pairs; do not assume an additional adapter or decoder is included.
If any answer is missing, resolve it before selecting a series. Send those application details through our contact page rather than guessing from a model name alone.
Explore the Lucas Lighting brand overview, then use the full Lucas Lighting collection to compare the bulb applications that match your project.
