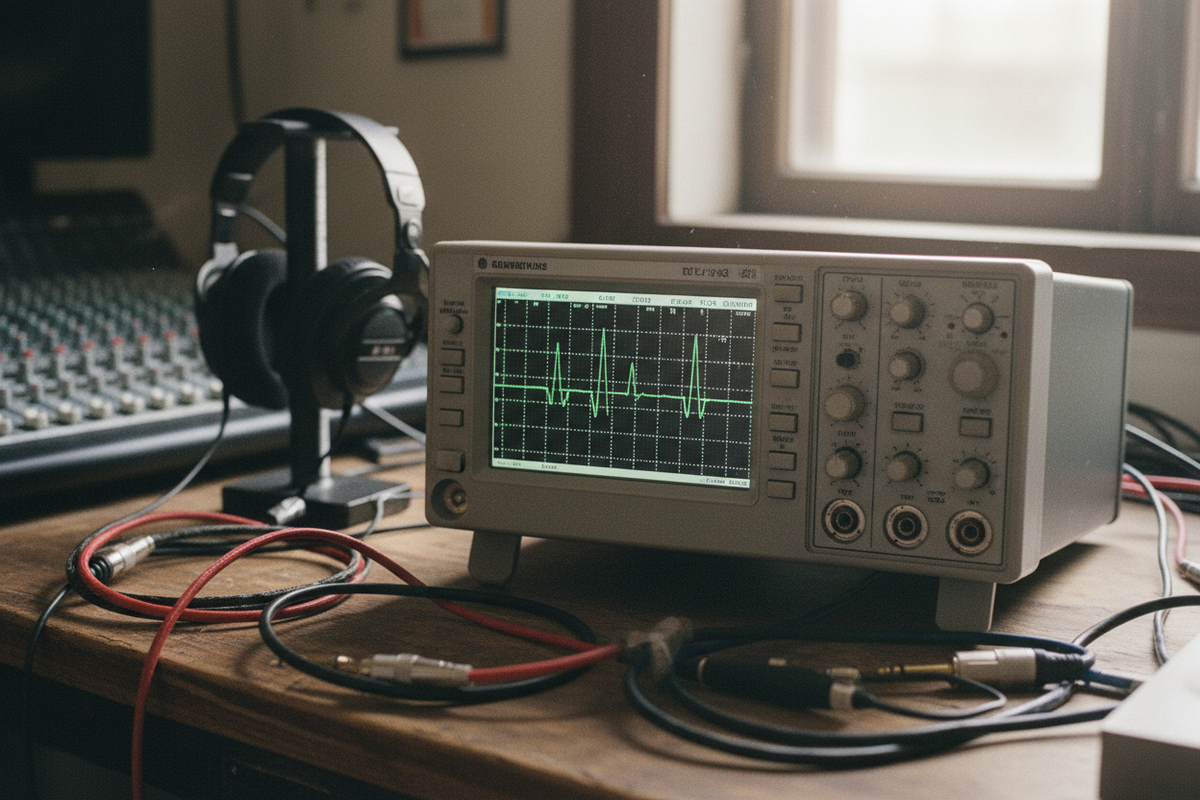

AC Audio Signals Explained: Frequency, Amplitude, Phase & Waveforms
Sound pressure moves above and below atmospheric equilibrium. An analog audio voltage mirrors that changing pattern above and below an electrical reference, making audio fundamentally alternating and dynamic.
The Big Picture
Sound pressure moves above and below atmospheric equilibrium. An analog audio voltage mirrors that changing pattern above and below an electrical reference, making audio fundamentally alternating and dynamic.
The Reference Line
An AC audio waveform swings around a reference. In an ideal centered sine wave, positive and negative halves are equal. The sign identifies instantaneous polarity, not “good” and “bad” parts of music.
A DC offset shifts the waveform away from its intended reference. Small design-dependent offsets can exist, but excessive DC at an output may heat a speaker or force its cone away from center.
Frequency and Period
Frequency measures repetitions per second. Period measures time per cycle, so they are reciprocals. A 50 Hz waveform lasts 20 milliseconds; a 1 kHz waveform lasts 1 millisecond.
Music is not one frequency. A complex waveform can be represented as many sinusoidal components whose amplitudes and phases change continuously.
Amplitude and Audio Level
Amplitude may be described as peak, peak-to-peak or RMS, and those values are not interchangeable. RMS is useful because it relates an AC waveform to equivalent heating in a resistive load.
Amplifier input sensitivity, preamp voltage and speaker output voltage describe different points in the chain. Always state where and how a signal was measured.
Phase and Polarity
Phase describes timing position relative to a cycle or another signal. Polarity reversal flips the waveform by 180 degrees at all frequencies, while acoustic phase changes with frequency, filters and path length.
Two similar signals can add when aligned and cancel when opposed. This is why crossover design, subwoofer polarity and time alignment affect output.
Worked Car-Audio Examples
Forty-hertz bass
T = 1 ÷ 40 = 0.025 second. One cycle takes 25 milliseconds.
Sine-wave RMS
A sine wave with 20 V peak has 20 ÷ 1.414 = 14.14 V RMS. Its peak-to-peak voltage is 40 V.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Frequency | Cycles per second and perceived pitch region. |
| Amplitude | Signal magnitude related to level. |
| Phase | Position in a repeating cycle. |
| Waveform | Voltage plotted against time. |
Common Mistakes That Cost Performance—or Equipment
- Confusing peak, peak-to-peak and RMS
- Calling negative voltage wasted power
- Treating polarity and phase as identical
- Assuming music is a single sine wave
- Measuring changing audio with the meter on DC only
Frequently Asked Questions
Why is audio considered AC?
Its instantaneous voltage and current vary with the waveform and normally reverse direction around a reference.
What does frequency control?
It corresponds to the rate of repetition and relates strongly to perceived pitch.
What does amplitude control?
It represents signal magnitude and relates to reproduced level, within system limits.
What is phase?
A timing relationship expressed as cycle position or angular difference.
Is negative voltage harmful to a speaker?
No. It is the opposite half of normal cone-driving current when centered correctly.
What is RMS voltage?
A measure related to equivalent power or heating, dependent on waveform shape.
Why use sine-wave test tones?
Their known frequency and level make measurements repeatable, though they are more demanding than typical music.
