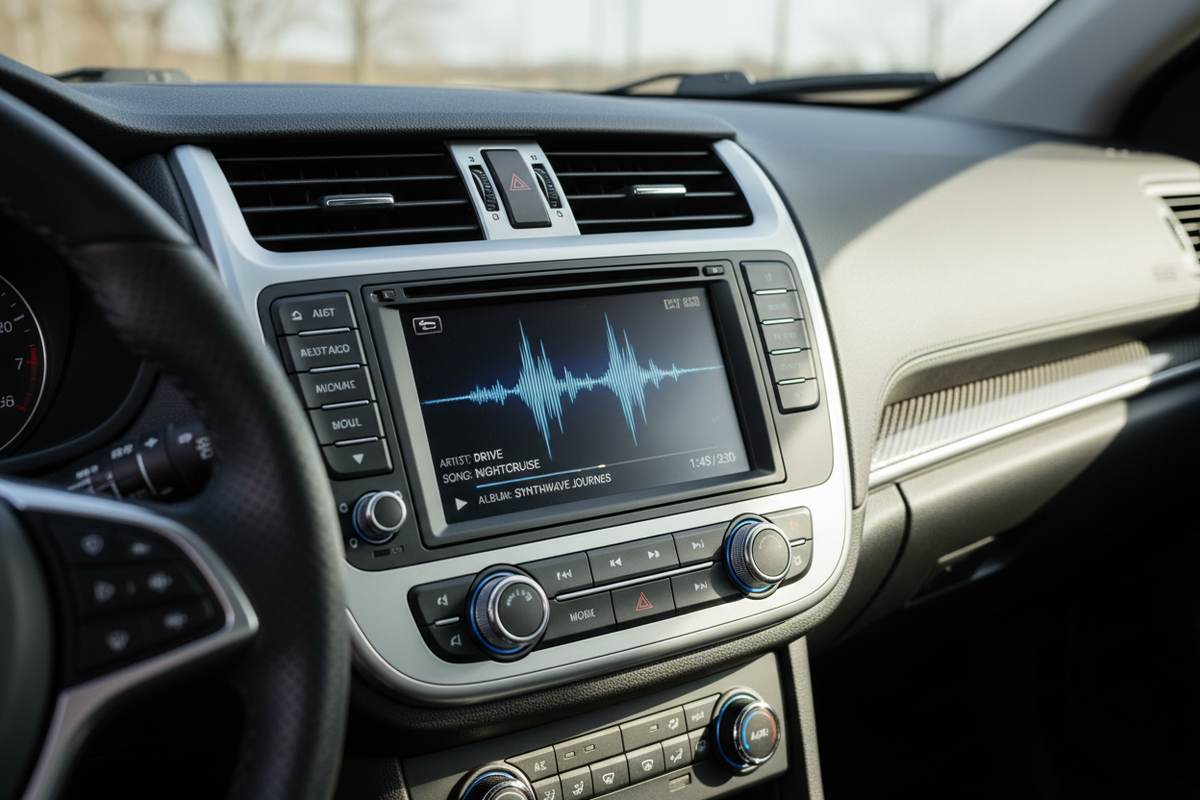

From Music File to Electrical Signal: How a Car Stereo Creates Audio
A song begins as stored or streamed information. Before a conventional amplifier and speaker can reproduce it, those numbers must become a continuously changing electrical signal.
The Big Picture
A song begins as stored or streamed information. Before a conventional amplifier and speaker can reproduce it, those numbers must become a continuously changing electrical signal.
Digital Audio Is a Description
Digital audio stores measurements of waveform amplitude at discrete moments. Sample rate sets how often measurements occur; bit depth sets available numerical resolution. Compression may be lossless or discard information according to a codec.
The numbers are not miniature stair-step voltages sitting inside the file. Playback processing reconstructs a continuous analog output after conversion and filtering.
Digital-to-Analog Conversion
A DAC converts sample values into a changing analog voltage. Reconstruction filtering removes unwanted high-frequency images, and analog stages buffer the result for the next device.
Clock stability, converter design, power supply and analog output stages all influence measured performance, but correct gain structure usually matters more in an installed vehicle than marketing labels alone.
Line Level and RCA Voltage
Preamp outputs carry signal voltage with limited current capability. They are designed to feed high-impedance amplifier inputs, not drive loudspeakers. Higher clean preamp voltage can reduce the gain required at the amplifier.
RCA voltage ratings are often maximum conditions. Actual music level changes with volume, recording level, EQ and source content.
Speaker Level and Factory Integration
A powered radio or factory amplifier creates speaker-level output capable of driving a load. Integration devices may accept that signal, reduce it, correct equalization, restore bass or convert balanced/differential outputs appropriately.
Never assume a factory speaker wire is ground-referenced. Many systems use bridged or monitored outputs that require compatible inputs and careful connection.
Worked Car-Audio Examples
Volume and preamp voltage
If a clean RCA output reaches 4 V RMS at maximum unclipped volume, normal listening produces less. Amplifier gain is matched to the usable source range, not set from the printed maximum alone.
High-level integration
A factory channel produces an amplified, equalized waveform. A compatible processor measures the signal, provides the necessary input load and creates a clean preamp signal for aftermarket amplification.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Digital Source | Samples encode waveform information. |
| DAC | Reconstructs an analog voltage. |
| Preamp | Controls level and routes the signal. |
| Output | Line-level or amplified speaker-level connection. |
Common Mistakes That Cost Performance—or Equipment
- Treating RCA output as speaker power
- Assuming every factory signal is flat and full range
- Grounding a bridged speaker negative
- Setting gain from advertised preamp voltage only
- Ignoring factory all-pass filters, delay or bass roll-off
Frequently Asked Questions
What does a DAC do?
It converts digital sample values into a continuously changing analog signal.
Is an RCA cable carrying AC?
It normally carries an alternating analog audio signal referenced according to the output design.
What is preamp voltage?
The available signal voltage from a line-level output before power amplification.
Can RCA outputs power speakers?
No. They are signal outputs intended for high-impedance inputs.
What is speaker-level input?
An amplifier or processor input designed to accept an already amplified factory-radio signal.
Why does factory bass decrease at high volume?
Some factory systems apply dynamic equalization or protection. Integration may require restoration or summing.
Are factory speaker negatives grounds?
Not necessarily. Many outputs are bridged or differential and must remain isolated from chassis.
