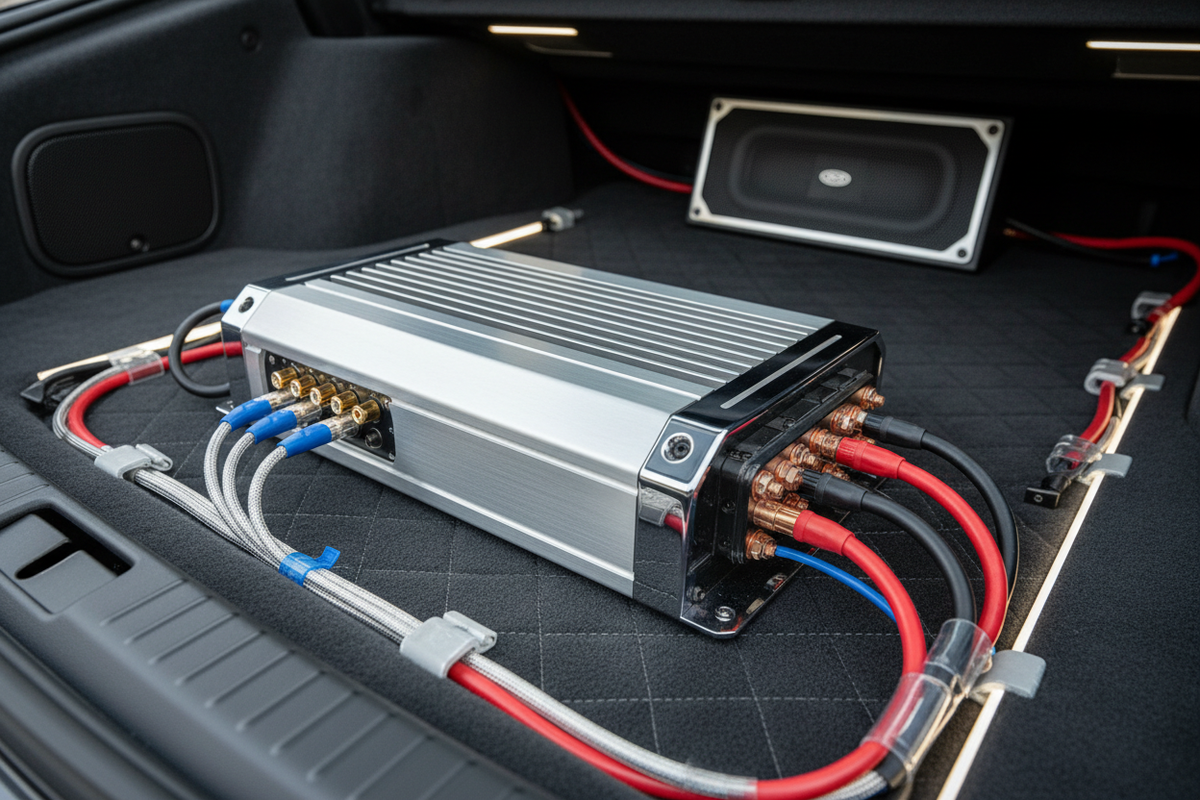

How a Car Amplifier Uses DC Power to Create an Amplified AC Audio Output
A car amplifier does not simply pass battery voltage to a speaker. It converts and stores DC energy internally, then controls that energy so the output becomes a larger version of the incoming audio waveform.
The Big Picture
A car amplifier does not simply pass battery voltage to a speaker. It converts and stores DC energy internally, then controls that energy so the output becomes a larger version of the incoming audio waveform.
The DC Energy Source
The battery and alternator provide DC. That energy supplies both small-signal electronics and the high-current output section. A remote terminal tells the amplifier to wake; it does not power the output stage.
Because the vehicle offers limited voltage, a powerful amplifier normally needs internal rails higher than raw battery voltage to create substantial speaker output.
The Switching Power Supply
Power transistors rapidly switch vehicle DC into a high-frequency waveform that drives a transformer. Secondary windings, rectifiers and capacitors create internal positive and negative—or otherwise arranged—supply rails.
This high-frequency conversion is not the audible output. It is an internal energy-processing stage designed to provide the voltages required by the audio output section.
Making the Output Follow the Music
The input waveform commands the output stage. Class AB devices operate in a more linear conduction arrangement; Class D stages switch at high frequency and recover the audio through output filtering and the load.
In both cases, the speaker receives an amplified changing waveform whose energy ultimately came from DC. The amplifier modulates supply energy according to the signal; it is more accurate than calling it a simple inverter.
Clipping, Load and Efficiency
Output swing is limited by internal rail voltage, current capability, temperature and protection strategy. When asked for more clean voltage than available, the waveform clips. Lower impedance demands more current and can reach limits sooner.
Efficiency determines how much input becomes audio output versus heat. No amplifier is 100% efficient, so the electrical system must supply more power than reaches the speakers.
Worked Car-Audio Examples
Voltage gain
A 2.0 V RMS input produces 40 V RMS output. Voltage gain is 40 ÷ 2 = 20, or about 26 dB.
DC input estimate
A Class D amplifier delivering 1,000 W at 80% efficiency needs about 1,250 W input. At 13.8 V, that is roughly 90.6 A.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Input Stage | Receives and conditions the audio signal. |
| Power Supply | Converts vehicle DC into internal rails. |
| Output Stage | Controls current through the speaker. |
| Feedback | Corrects error and stabilizes gain. |
Common Mistakes That Cost Performance—or Equipment
- Calling the amplifier a simple DC-to-AC inverter
- Believing remote turn-on powers the amplifier
- Assuming output watts equal DC input watts
- Running below rated impedance
- Increasing gain after the output is already clipping
Frequently Asked Questions
Does a car amplifier convert DC to AC?
It uses DC energy and an input audio signal to produce an amplified alternating output. Internally it may also switch and transform DC to create supply rails.
Why does an amplifier need a switching supply?
Vehicle voltage alone is too low for many desired output-voltage levels.
Is Class D digital?
Not necessarily. The D identifies an operating class; many Class D amplifiers accept and reproduce analog signals.
What causes clipping?
The requested output exceeds available voltage, current or control range.
Why does lower impedance make more power?
It draws more current for a given output voltage, within the amplifier’s design limits.
Where does amplifier heat come from?
Losses in switching, conduction, the power supply and other components.
Can DC reach the speaker from a failed amplifier?
Yes. Certain output-stage failures can place dangerous DC at the terminals, requiring immediate shutdown and diagnosis.
