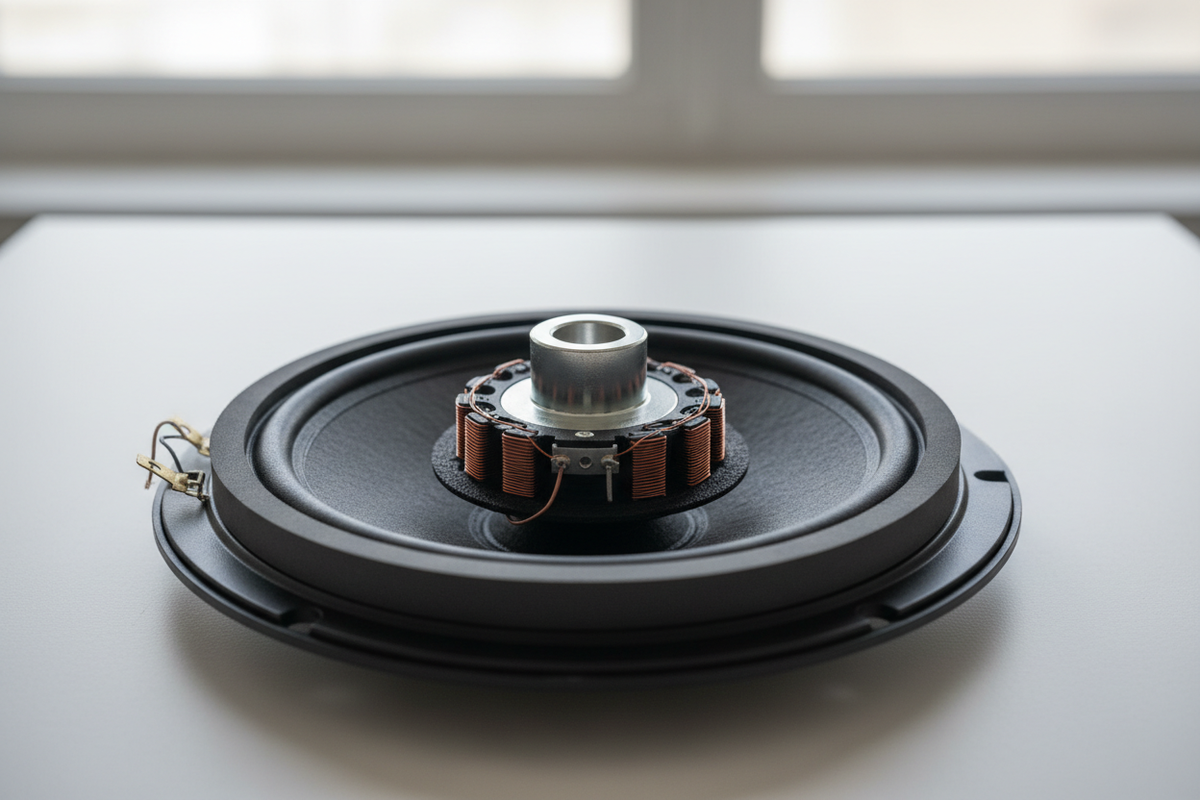

How Speakers Turn Alternating Current Into Sound
A loudspeaker is a bidirectional energy converter. Alternating electrical current creates alternating magnetic force, the cone moves air, and the moving coil also generates voltage back into the circuit.
The Big Picture
A loudspeaker is a bidirectional energy converter. Alternating electrical current creates alternating magnetic force, the cone moves air, and the moving coil also generates voltage back into the circuit.
The Electrodynamic Motor
A permanent magnet and steel structure concentrate magnetic flux in a narrow gap. Current through the voice coil creates its own magnetic field, producing force. Reversing current reverses force direction.
The coil is attached to the cone. The surround and spider center the moving assembly while allowing controlled travel.
From Current to Air Pressure
Forward cone motion compresses air; backward motion rarefies it. Rapid pressure variations travel as sound. Frequency controls how often motion changes direction, while amplitude influences excursion and acoustic level.
The cone does not travel one direction for the positive half of an entire song. It follows the instantaneous composite waveform created by every frequency present.
Why Steady DC Is Dangerous
Steady DC produces force in one direction and does not alternate to create normal sound. It can displace the cone from center and heat the voice coil continuously.
Brief DC may create a click during connection, but sustained or excessive DC at an amplifier output indicates a fault or offset condition that can damage the speaker.
Impedance and Back EMF
A speaker is not a fixed resistor. Voice-coil inductance, mechanical resonance, enclosure loading and motion change impedance with frequency. As the coil moves through the magnetic field, it generates back EMF opposing applied current.
This interaction explains why amplifier current and speaker excursion do not follow a simple fixed-resistance model across the entire audio band.
Worked Car-Audio Examples
Polarity test
A brief low-voltage battery pulse can reveal cone direction on a loose driver, but continuous connection is unsafe and this test is not appropriate for every driver or installed system.
Displacement
A driver with 500 cm² effective cone area and 2 cm one-way Xmax has simplified Vd = 1,000 cm³, or one liter.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Voice Coil | Current-carrying conductor in a magnetic gap. |
| Motor Force | Direction changes with current polarity. |
| Cone Motion | Creates pressure variations in air. |
| Back EMF | Motion generates opposing voltage. |
Common Mistakes That Cost Performance—or Equipment
- Treating a speaker as a fixed resistor
- Applying continuous battery DC to a driver
- Ignoring enclosure control and excursion
- Assuming wattage alone predicts loudness
- Confusing polarity with frequency-dependent phase
Frequently Asked Questions
Do speakers run on AC or DC?
They reproduce audio from alternating current. Sustained DC does not create normal sound and can cause damage.
What makes the cone move forward and backward?
Current direction through the coil changes magnetic force direction.
What is back EMF?
Voltage generated by the moving voice coil that opposes the applied change.
Why is a 4-ohm speaker not always 4 ohms?
Four ohms is nominal impedance; actual impedance varies with frequency and mechanical loading.
What does Xmax mean?
A stated one-way linear excursion limit, defined by the manufacturer’s method.
Can a speaker generate electricity?
Yes. Moving its coil in the magnetic field creates voltage—the same principle used by dynamic microphones.
Why does clipping damage speakers?
Clipping can increase high-frequency energy, reduce clean headroom and drive thermal or mechanical limits.
