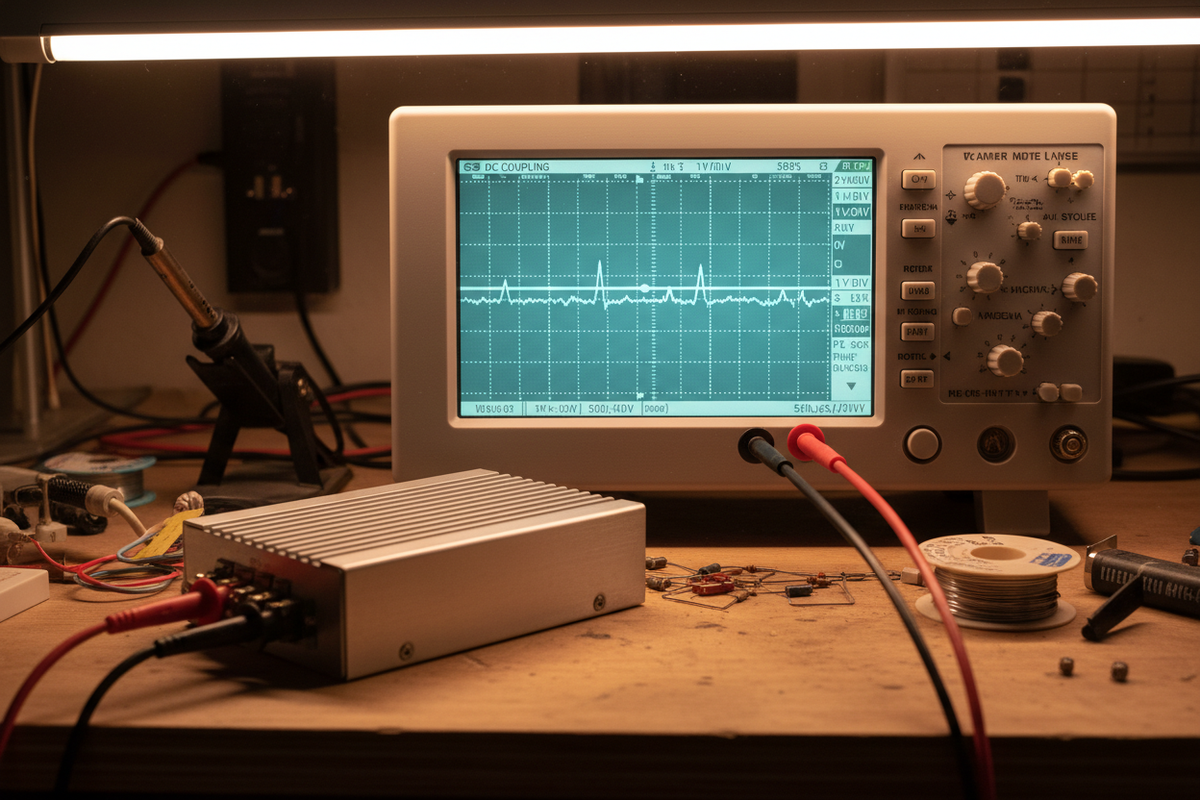

AC Riding on DC: Ripple, Noise, Ground Loops & Electrical Interference
A DC supply can carry unwanted changing voltage on top of its average level. That contamination may come from charging ripple, switching electronics, shared resistance, electromagnetic coupling or a signal-reference problem.
The Big Picture
A DC supply can carry unwanted changing voltage on top of its average level. That contamination may come from charging ripple, switching electronics, shared resistance, electromagnetic coupling or a signal-reference problem.
Alternator Whine and Ripple
Whine that follows engine speed often points toward charging-related interference, but the alternator is not automatically defective. Poor grounds, RCA routing, damaged source grounding and gain structure can expose otherwise manageable noise.
Measure AC ripple at the charging system and inspect waveform shape under load. Compare results with vehicle-specific limits before replacing parts.
Radiated and Conducted Noise
Power wiring, ignition systems, motors, LED drivers and switching converters create changing fields or conduct noise through shared supply wiring. Twisted pairs, balanced inputs, shielding, separation and filtering reduce susceptibility.
Do not assume crossing power and signal wires is forbidden. Long parallel runs create more coupling opportunity; a brief right-angle crossing is usually less problematic.
A Logical Isolation Process
Determine whether noise changes with source volume, amplifier gain, engine speed, accessory operation or disconnected inputs. Those observations identify where noise enters.
Use one controlled change at a time. Replacing every cable and adding noise filters can hide the cause without correcting unsafe wiring or a failing charging component.
Worked Car-Audio Examples
Shared-ground voltage
A shared path carrying 20 A with only 0.01 ohm resistance develops 0.2 V difference—enormous compared with a low-level audio signal.
Speed-related noise
Whine frequency rises with engine speed. Disconnecting RCA inputs at the amplifier removes it, pointing upstream or to reference coupling rather than the speaker wiring.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Ripple | Periodic AC remaining on DC. |
| Ground Difference | Unequal reference voltage between devices. |
| Coupling | Noise transferred capacitively or magnetically. |
| Shielding | Controls electric-field interference and reference paths. |
Common Mistakes That Cost Performance—or Equipment
- Replacing the alternator based on sound alone
- Using RCA shields as equipment grounds
- Turning gain down without correcting noise source
- Installing filters before testing connections
- Bundling signal cable beside high-current switching wiring
Frequently Asked Questions
What causes alternator whine?
Possible causes include charging ripple, grounding differences, damaged signal references and electromagnetic coupling.
Why does pitch change with RPM?
The electrical activity associated with alternator and ignition speed changes with engine speed.
What is AC ripple?
A changing component superimposed on the DC charging output.
Will a ground-loop isolator fix everything?
No. It may interrupt one path but can reduce performance or conceal the actual fault.
Should power and RCA cables be separated?
Good routing reduces coupling risk, especially over long parallel distances.
Why does noise remain with volume at zero?
It may enter after the volume control or through power, ground or amplifier stages.
How do balanced inputs help?
They respond to the difference between conductors and reject noise shared by both, when implemented and connected correctly.
