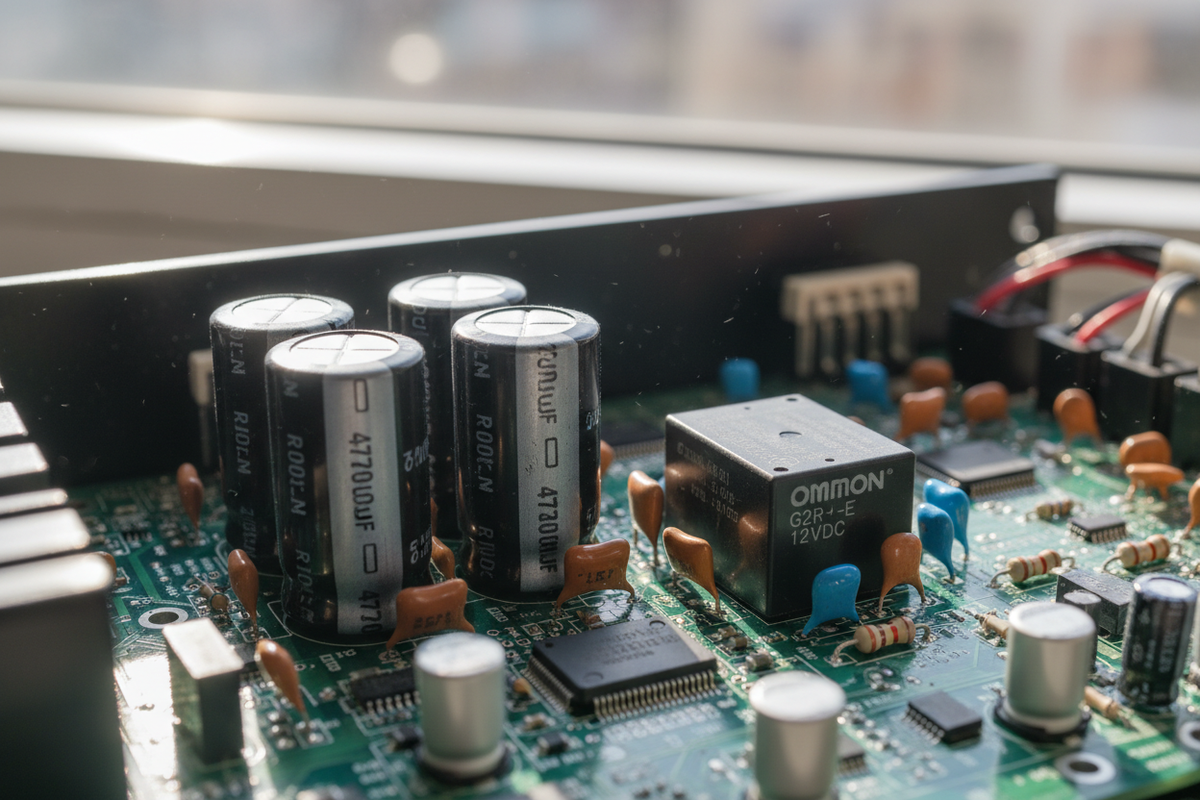

DC Offset, Coupling Capacitors & Speaker Protection in Car Audio
An audio output should deliver the changing waveform while keeping harmful steady voltage away from the speaker. Coupling networks, balanced output stages and protection circuits all help manage that boundary.
The Big Picture
An audio output should deliver the changing waveform while keeping harmful steady voltage away from the speaker. Coupling networks, balanced output stages and protection circuits all help manage that boundary.
What DC Offset Means
DC offset is a steady component added to an AC signal. At a speaker output, it shifts the voice coil away from its centered rest position and creates continuous heating without useful sound.
Different amplifier topologies and measurement conditions produce different normal residual values. Compare with manufacturer specifications; large or rising DC is a fault signal.
Coupling Capacitors
A series capacitor charges to block sustained DC while allowing changing voltage to pass. Together with circuit resistance, it forms a high-pass filter. Too small a capacitance can reduce low-frequency response.
Modern amplifiers may use direct coupling and servo control instead. Never add a random capacitor to a high-power speaker output without a complete design.
Turn-On and Turn-Off Pops
As internal supply rails, references and muting circuits settle, a brief transient may reach the output. Proper sequencing delays or mutes amplification until conditions stabilize.
A loud pop can result from poor remote timing, defective equipment, integration interfaces or grounding. Diagnose the event rather than accepting repeated mechanical shock.
Protection and Safe Testing
Protection circuits may monitor DC, overcurrent, short circuits, temperature and supply voltage. Some designs disconnect the output with a relay; others shut down electronically.
Measure DC offset with no signal and the meter on DC volts, following manufacturer procedure. Bridged outputs require measurement across the two speaker terminals—not from either terminal to chassis unless specified.
Worked Car-Audio Examples
Heating from DC
One volt of DC across a 4-ohm resistive approximation produces P = 1² ÷ 4 = 0.25 W. Ten volts produces 25 W and substantial cone displacement.
Coupling corner
A 10 µF capacitor feeding a 10 kΩ input creates f = 1 ÷ (2π × 10,000 × 0.00001) ≈ 1.59 Hz.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| DC Offset | Average displacement from the intended reference. |
| Coupling | Transfers AC while blocking steady DC. |
| Transient | Brief event during power-state change. |
| Protection | Detects unsafe voltage, current or temperature. |
Common Mistakes That Cost Performance—or Equipment
- Measuring bridged output to chassis
- Assuming every turn-on pop is harmless
- Ignoring cone displacement with no audio
- Installing arbitrary series capacitors on subwoofers
- Continuing to operate an amplifier with substantial DC output
Frequently Asked Questions
What is amplifier DC offset?
A steady voltage component present at the audio output when the desired signal should average around its reference.
How do I measure it?
With no audio, use DC voltage mode across the correct output terminals according to the manufacturer’s procedure.
Is any DC offset acceptable?
Small residual values may be normal, but limits are design-specific. Large or unstable readings require service.
What does a coupling capacitor do?
It blocks sustained DC while passing changing signals above the resulting filter corner.
Why does my system pop when it turns on?
Power sequencing, reference settling, remote timing, grounding or failing equipment may create a transient.
Can DC destroy a subwoofer?
Yes. It can heat the coil and hold the cone away from center without producing normal sound.
Will amplifier protection always save the speaker?
No protection system covers every failure or wiring condition. Shut down immediately when significant DC or abnormal cone movement appears.
