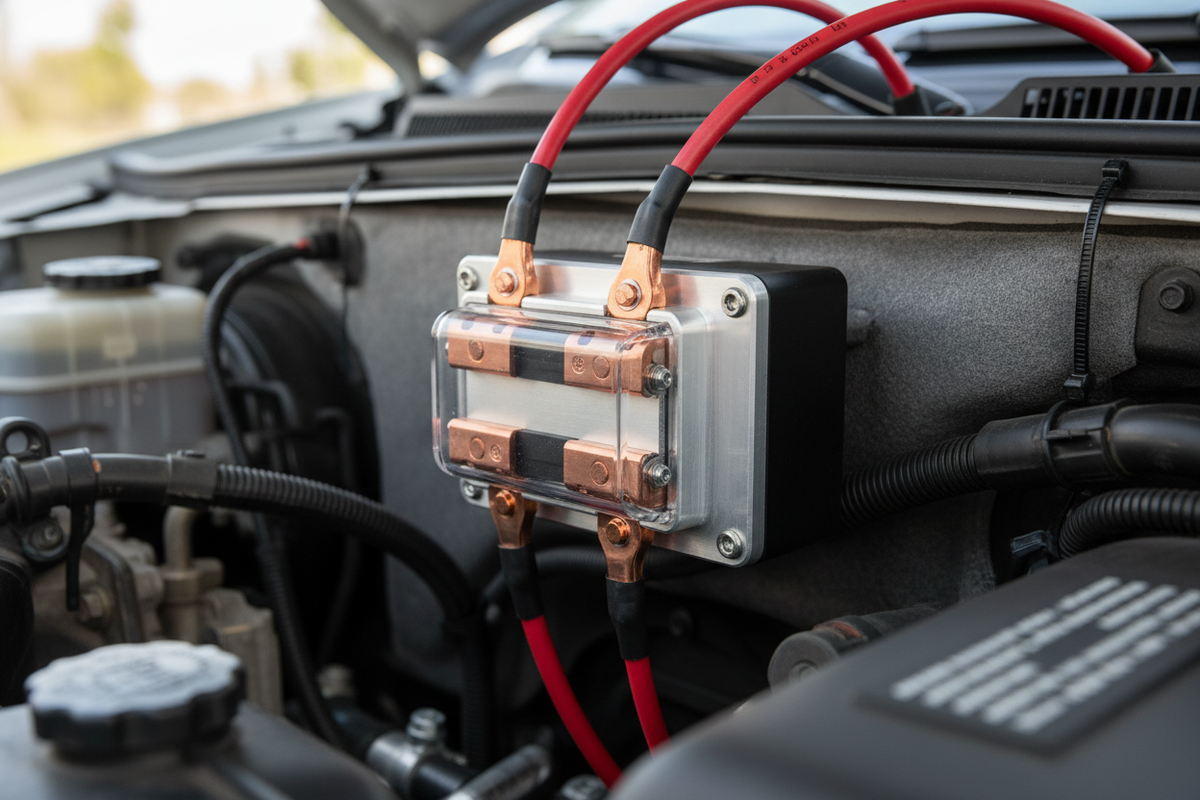

ANL Fuse Holders Done Right: Direct Contact, Fuse Orientation & Connection Resistance
An ANL fuse can be correctly rated and still overheat when current is forced through washers, spacers or loose hardware. The electrical joint must place the cable lug directly against the fuse blade.
The Big Picture
An ANL fuse can be correctly rated and still overheat when current is forced through washers, spacers or loose hardware. The electrical joint must place the cable lug directly against the fuse blade.
The Correct Contact Stack
The ring terminal and fuse blade need clean, flat, direct metal contact. Washers and nuts belong outside the current-carrying interface as the holder design requires.
Putting a washer between lug and fuse forces current through hardware not intended as the primary contact surface and adds interfaces.
Surface Area and Pressure
High current needs broad contact area and stable clamping force. Crooked lugs, burrs, undersized rings and warped blades concentrate current and heat.
Use the correct stud size, seat components flat and torque to the holder manufacturer’s specification.
Heat Cycling and Maintenance
Current warms the connection; cooling contracts it. Repeated cycles can loosen poorly assembled hardware. Oxidation and moisture then increase resistance further.
After initial operation, inspect for discoloration, softened plastic, odor and abnormal temperature.
Diagnosing a Hot Holder
Measure voltage drop directly across each assembled fuse connection while high current flows. Compare input stud, fuse blade and output stud to isolate the bad joint.
Replacing the fuse alone will not fix poor stacking, loose hardware or damaged contact surfaces.
Worked Car-Audio Examples
Hidden heat
A 0.003 Ω joint at 150 A dissipates 67.5 W—enough to deform many holders.
Direct-contact repair
Reassemble with lug directly against fuse blade, clean flat surfaces and correct torque, then repeat the same loaded voltage-drop test.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Fuse Blade | Calibrated element and contact surface. |
| Ring Lug | Cable contact must meet fuse directly. |
| Hardware | Clamps the joint; it should not be the path. |
| Torque | Maintains pressure without damage. |
Common Mistakes That Cost Performance—or Equipment
- Placing washers between lug and fuse
- Using fuse hardware as the current path
- Leaving lugs crooked
- Overtightening until plastic distorts
- Ignoring a warm or discolored holder
Frequently Asked Questions
What touches the ANL fuse blade?
The current-carrying ring terminal should make direct flat contact.
Why is my fuse holder melting?
Loose, contaminated or incorrectly stacked joints create resistance and heat.
Does fuse direction matter?
ANL elements are generally nonpolar, but holder layout and protected-side placement still matter.
Should I grease the contact?
Follow holder guidance; grease must not replace clean metal contact or correct torque.
Can a correct-size fuse run hot?
Yes, especially near rating, but abnormal localized heat suggests a connection problem.
How do I test a holder?
Measure loaded voltage drop across individual joints and inspect temperature.
Where should the holder go?
Close to the battery source so the downstream cable is protected.
