How to Terminate Car Audio Power Wire Correctly: Lugs, Ferrules, Crimping & Soldering
Most high-current failures happen at connections, not in the middle of a cable. A correct termination creates gas-tight metal contact, contains every strand and survives heat, vibration and service.
The Big Picture
Most high-current failures happen at connections, not in the middle of a cable. A correct termination creates gas-tight metal contact, contains every strand and survives heat, vibration and service.
Preparing the Cable
Use a tool that cuts insulation without removing conductor strands. Strip only enough for full barrel insertion; exposed copper outside the terminal invites corrosion and shorts.
Do not twist away strands to force oversized cable into an undersized terminal.

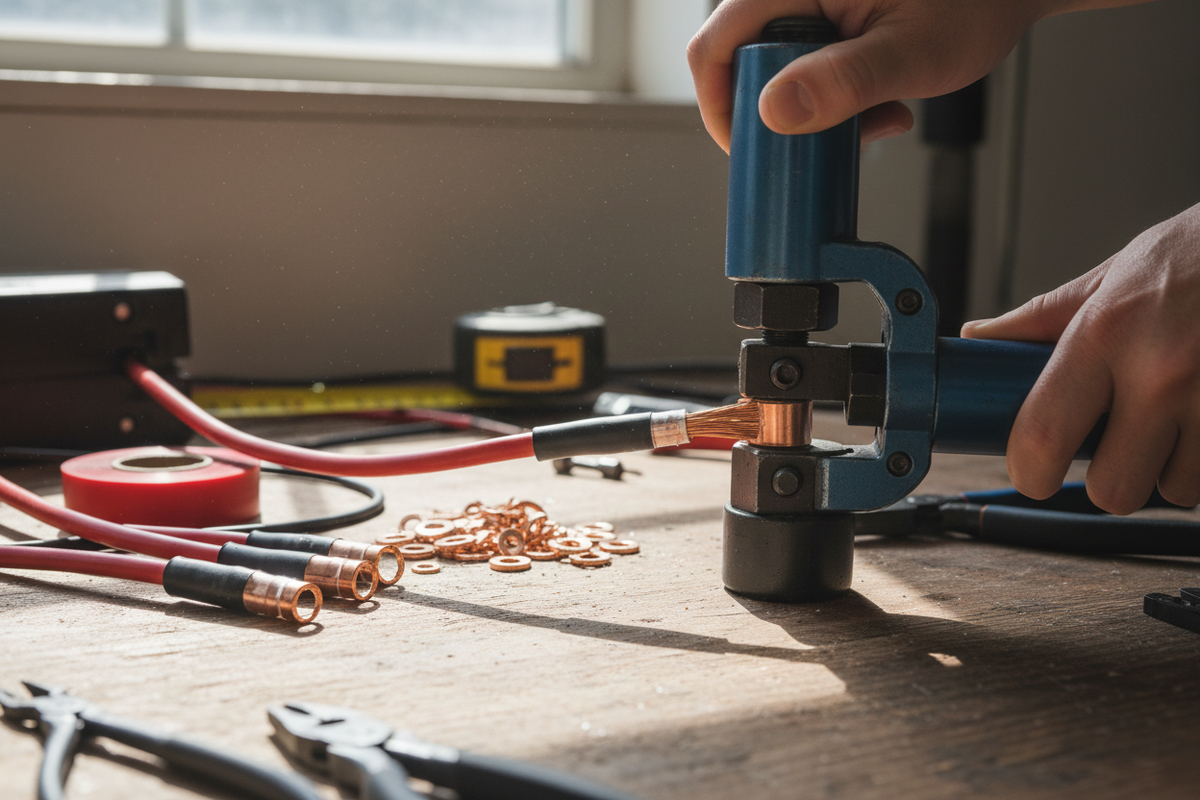

Crimping Ring Lugs
A proper die compresses the barrel around the full conductor and produces a mechanically strong, low-resistance joint. Orient seam-style terminals according to tool instructions.
Hammer tools can work with correct technique, but matched hydraulic or compound tools improve consistency.
Ferrules and Set-Screw Inputs
Ferrules contain fine strands and create a predictable surface under compatible set screws. They are not universal: use only when terminal geometry and equipment instructions support them.
Never tin fine wire before a pressure terminal; solder creeps under pressure and can loosen over time.
Solder and Strain Relief
Solder can supplement certain designs but should not substitute for mechanical integrity. Wicking makes cable rigid beyond the lug and creates a vibration stress point.
Adhesive heat shrink seals and supports the transition without hiding a weak crimp. Mark, torque and recheck high-current connections.
Worked Car-Audio Examples
Bad joint heat
Only 0.002 Ω at 150 A wastes 45 W in one terminal.
Inspection process
Confirm full insertion, execute the matched crimp, inspect deformation, perform a firm pull test, seal and torque the installed stud.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Strip | Expose conductor without nicking strands. |
| Terminal | Match wire size, material and stud. |
| Crimp | Cold-form metals into stable contact. |
| Seal | Support and exclude moisture. |
Common Mistakes That Cost Performance—or Equipment
- Tinning wire under set screws
- Using pliers or a vise as a crimper
- Leaving loose strands
- Using a lug with the wrong barrel size
- Covering a failed crimp with heat shrink
Frequently Asked Questions
Should power wire be soldered or crimped?
A correct matched crimp is the primary high-current termination. Solder is application-dependent.
What is a ferrule for?
It contains fine strands for compatible pressure terminals.
Can I cut strands to fit?
No. Use the correct terminal or reducer.
How tight should a set screw be?
Use the equipment manufacturer’s torque value.
Why use adhesive heat shrink?
It supports the cable transition and helps seal out moisture.
What is a pull test?
A firm mechanical check that the conductor cannot withdraw from the terminal.
Can a terminal look good and still fail?
Yes. Wrong die, partial insertion or hidden strand loss can create resistance.
