The 12 Volt Encyclopedia · DC 12V Wiring: Do’s & Don’ts

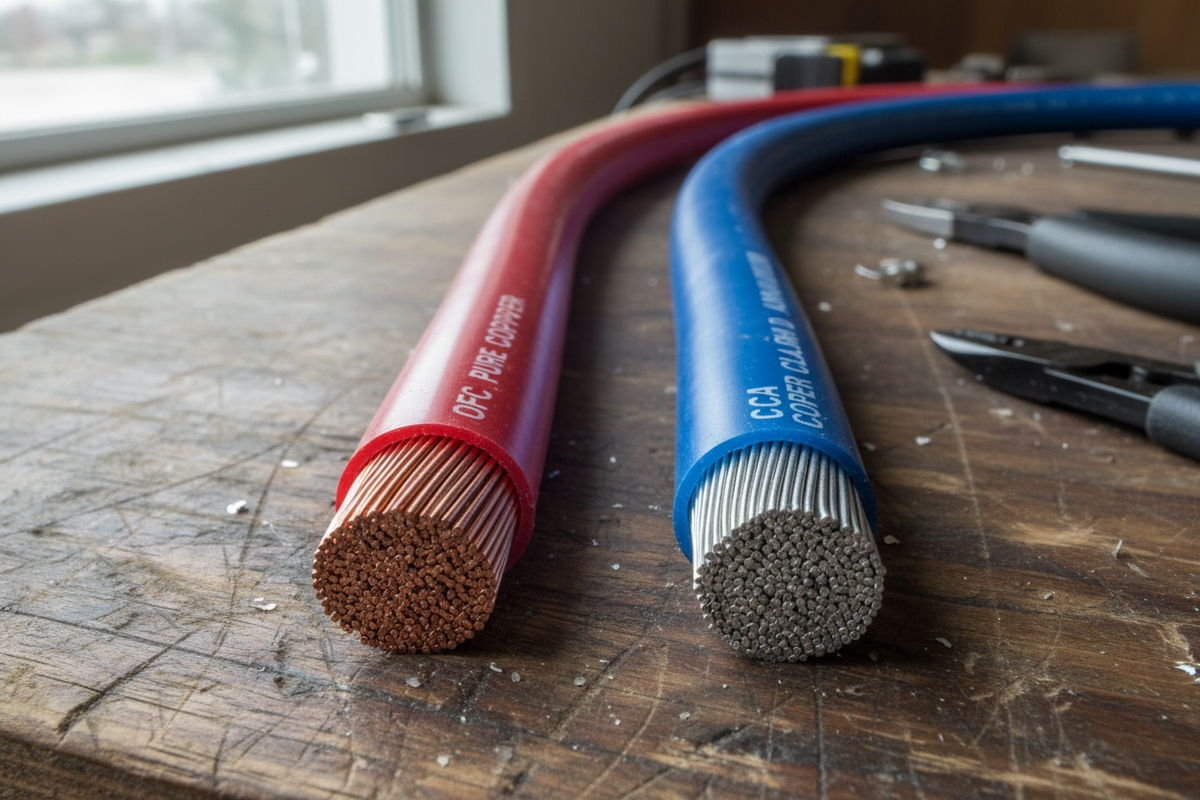

OFC vs. CCA Wire: The Real Difference in Car Audio Installations
OFC and CCA can share the same printed gauge while delivering very different resistance. The question is not whether current flows—it is how much conductor area, voltage and long-term reliability the installation requires.
The Big Picture
OFC and CCA can share the same printed gauge while delivering very different resistance. The question is not whether current flows—it is how much conductor area, voltage and long-term reliability the installation requires.
Conductivity Is the Main Difference
Aluminum has higher resistivity than copper, so equal-size CCA develops more voltage drop and heat. To match copper performance, CCA needs greater conductor area.
This does not make every CCA installation instantly unsafe; it means the design cannot treat equal printed gauges as electrically equal.
Weight, Flexibility and Strand Count
CCA is lighter and often cheaper. Fine strands can improve flexibility, but strand count does not overcome the base material’s resistance or an undersized conductor.
Judge cable by actual conductor cross-section, material and measured resistance.
Connections and Corrosion
Aluminum forms a tenacious oxide layer and mixed-metal interfaces require compatible terminals and environmental sealing. Moisture, salt and engine-bay heat accelerate connection problems.
Use properly rated lugs, correct crimping, adhesive-lined heat shrink and inspection—not bare wire trapped under a screw.
Real Cost of Voltage Loss
A cheaper cable can demand a larger gauge, additional runs or later replacement. Lost voltage reduces amplifier headroom while wasted energy becomes heat.
Compare installed performance and labor, not only price per foot.
Worked Car-Audio Examples
Equal-size comparison
If CCA path resistance is 60% higher than OFC, a 0.60 V copper drop becomes roughly 0.96 V at the same current and length.
Upsizing CCA
CCA can be engineered for a target drop by increasing area, but terminals, fuse holders and routing must accept the larger cable.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| OFC | Copper conductor with high conductivity. |
| CCA | Aluminum core with copper cladding. |
| Resistance | Material changes loss at equal area. |
| Corrosion | Moisture and mixed metals demand protection. |
Common Mistakes That Cost Performance—or Equipment
- Assuming equal gauge means equal resistance
- Buying by strand count alone
- Leaving aluminum exposed to moisture
- Using terminals not compatible with conductor
- Ignoring total installed cost
Frequently Asked Questions
Is OFC better than CCA?
For equal conductor area, OFC has lower resistance and generally stronger high-current performance.
Can CCA be used safely?
It can when honestly sized, fused, terminated and protected for the application.
Why is CCA lighter?
Its core is aluminum, which is less dense than copper.
Does more strands mean more current?
Only if total conductive area and material increase.
Should CCA use the same fuse as OFC?
Fuse protection follows the safe capacity of the actual conductor and installation.
Why does CCA corrode?
Aluminum oxide and mixed-metal interfaces can raise connection resistance when poorly protected.
How can I identify undersized cable?
Measure conductor diameter/area and resistance rather than trusting the jacket.
Build the System the Math Supports
Use real specifications, correct wiring and verified measurements. 12 Volt Outlet has the amplifiers, speakers, subwoofers, wiring and installation hardware to turn the plan into a reliable system.
