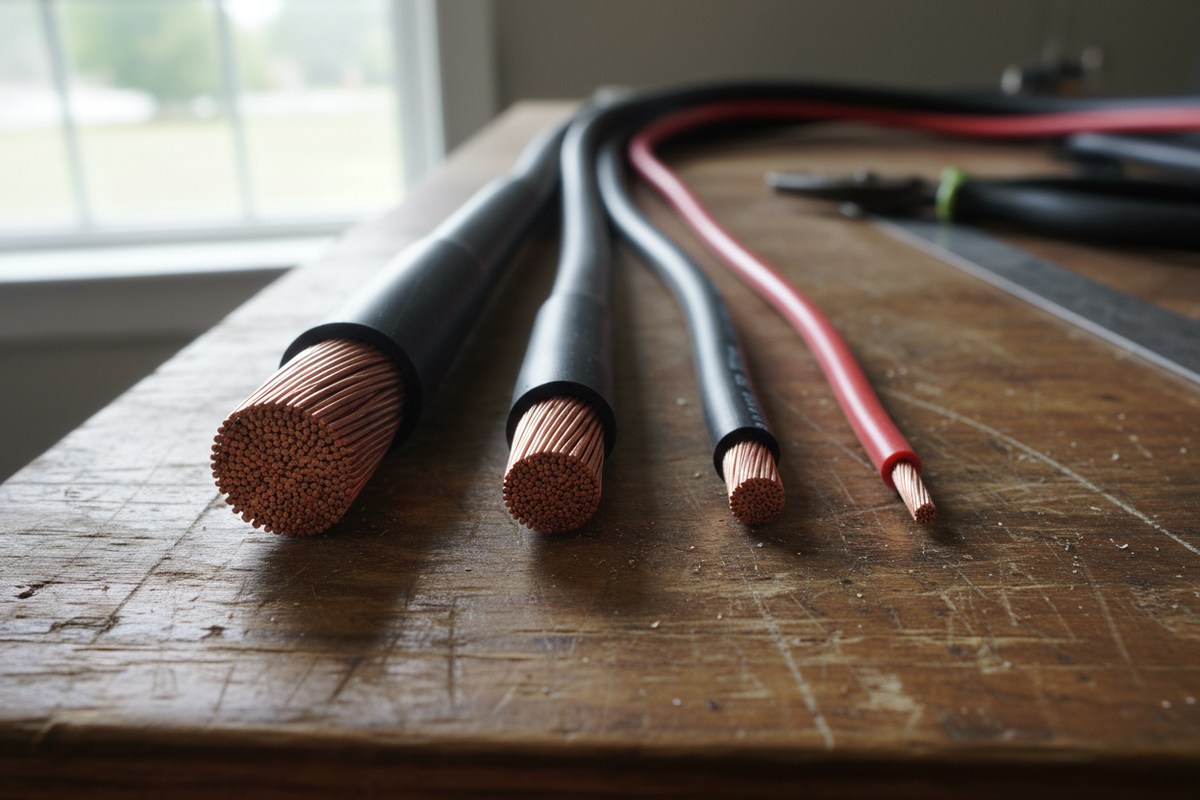

Car Audio Power Wire Size Explained: Gauge, Ampacity, Length & Voltage Drop
Power cable is part of the amplifier’s power supply. Gauge printed on a jacket is only a starting point; conductor material, actual copper area, length, temperature and termination quality decide what reaches the equipment.
The Big Picture
Power cable is part of the amplifier’s power supply. Gauge printed on a jacket is only a starting point; conductor material, actual copper area, length, temperature and termination quality decide what reaches the equipment.
Why One Amp Rating Is Misleading
A cable has no universal car-audio amp rating independent of length, material, insulation, ambient temperature and permitted voltage drop. Short chassis wiring and long amplifier runs are different problems.
Select wire for the expected input current and complete circuit path, then verify voltage at the amplifier under load.
AWG and Actual Conductor Area
A legitimate AWG size refers to conductor area, not outside jacket diameter. Oversized insulation, loose strands and undersized imported cable can make a product look larger than its electrical capacity.
Compare conductor material, measured area and construction—not only a name printed on the spool.
Length and Voltage Loss
Resistance increases with length. A rear-mounted amplifier sees the positive run plus its return path, whether that return is a dedicated cable or vehicle structure.
A wire that works for four feet may create unacceptable loss at twenty feet. High-current bass systems magnify every milliohm.
Temperature, Bundling and Protection
Engine heat, tightly bundled conductors and enclosed routing reduce cooling. Insulation rating prevents damage but does not eliminate voltage loss.
The fuse protects the cable against a short and must not exceed the safe capacity of the smallest conductor in the protected path.
Worked Car-Audio Examples
Long-run comparison
At 150 A, a path resistance of 0.006 Ω drops 0.9 V and wastes 135 W. Halving resistance halves that drop.
Gauge planning
Estimate amplifier DC current from real RMS output and efficiency, choose a conductor with acceptable loss over actual length, then measure the installed circuit.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Gauge | AWG size describes conductor diameter. |
| Ampacity | Safe current depends on installation conditions. |
| Length | More conductor means more resistance. |
| Heat | Temperature raises resistance and limits capacity. |
Common Mistakes That Cost Performance—or Equipment
- Choosing by jacket diameter
- Using one ampacity number for every length
- Ignoring the negative path
- Fusing larger than cable capacity
- Failing to load-test the completed run
Frequently Asked Questions
What gauge wire does my amplifier need?
It depends on real current, material, one-way length, return path and acceptable loss.
Is 1/0 always enough?
No. Very high current, long runs or CCA may require more conductor area.
Does insulation count toward gauge?
No. AWG describes conductor, not the jacket.
Why does wire get hot?
Current through resistance produces I²R heat.
Should I size from max watts?
Use honest output, efficiency, manufacturer guidance and actual system demand.
Does ground wire need the same size?
The return must safely carry the same current as the positive path.
How do I verify sizing?
Measure voltage drop and connection temperature under repeatable load.
