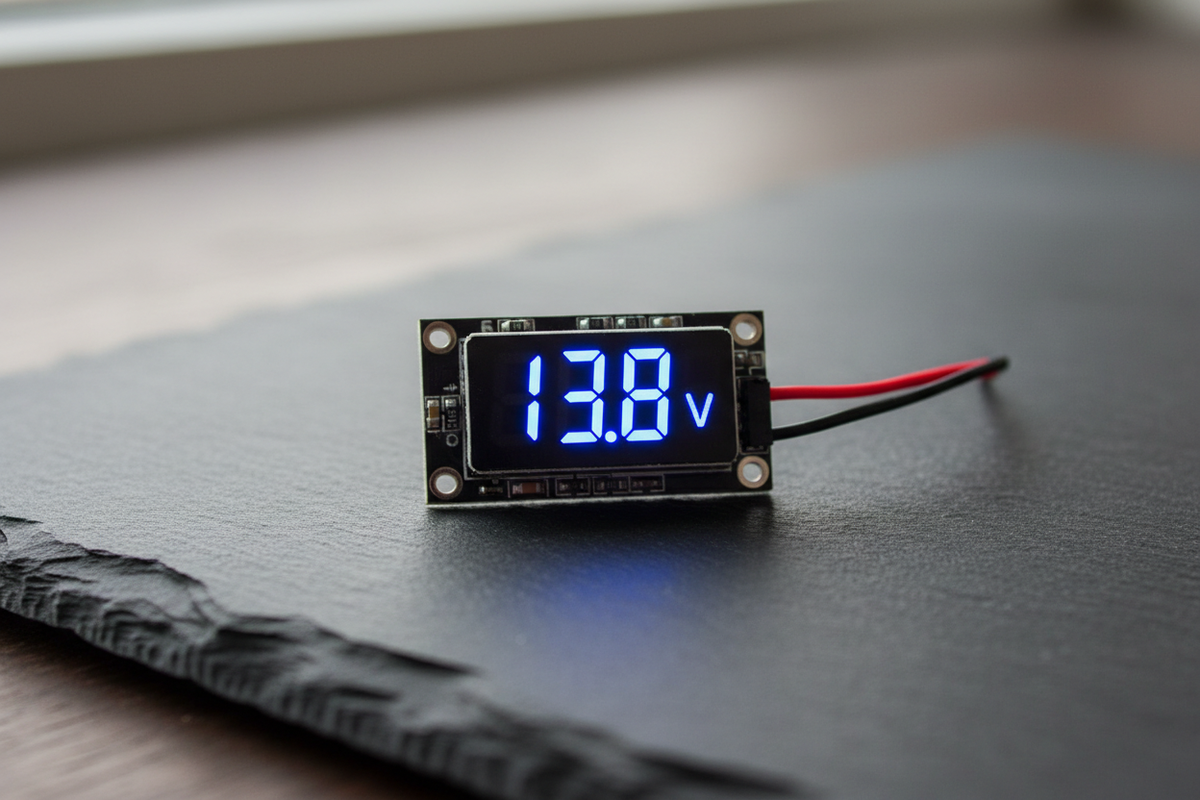

Car Audio Voltage Meters Explained: Refresh Rate, Accuracy & Why the Dash Gauge Lies
Compare fast car-audio voltmeters with damped OEM dash displays and measure transient amplifier voltage.
The Big Picture
Compare fast car-audio voltmeters with damped OEM dash displays and measure transient amplifier voltage.
Refresh Rate Matters
A display updating twice per second can miss a 100 ms bass transient. Averaging makes the number look calm while the amplifier experiences deeper sag.
Fast logging or an oscilloscope captures events a dashboard cannot.
OEM Dash Behavior
Factory gauges may be buffered, calculated or intentionally damped to prevent distraction.
They indicate system state, not precise amplifier-terminal voltage.
Meter Placement
A front meter cannot include rear cable and ground loss.
Measure across amplifier positive and negative terminals for the voltage the amplifier receives.
Accuracy and Calibration
More digits do not guarantee truth. Compare against a known meter and account for lead drop.
Use consistent RPM, load and sampling when comparing changes.
Worked Car-Audio Examples
Loaded test
Measure at the equipment while current flows; a resting reading cannot prove high-current performance.
Final inspection
Record voltage, current and temperature, then recheck hardware after initial heat cycles.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Accuracy | Closeness to actual voltage. |
| Resolution | Smallest displayed increment. |
| Refresh | How often display updates. |
| Location | Where voltage is actually measured. |
Common Mistakes That Cost Performance—or Equipment
- Skipping vehicle-specific diagrams
- Using unfused reduced cable
- Trusting continuity instead of loaded drop
- Ignoring torque and heat
- Bypassing OEM monitoring
Frequently Asked Questions
What is the first rule?
Protect every positive conductor close to its energy source.
Why load-test?
High current exposes loss hidden by resting measurements.
Should factory wiring be removed?
Usually supplement it unless vehicle-specific instructions say otherwise.
What protects a reduced branch?
A fuse sized for the smaller downstream conductor.
Why document readings?
They create a baseline for future troubleshooting.
Can smart charging change the plan?
Yes. Sensor routing and control strategy must be respected.
When should a professional handle it?
When vehicle architecture, current level or fabrication exceeds your experience.
Build the System the Math Supports
Use real specifications, correct wiring and verified measurements. 12 Volt Outlet has the amplifiers, speakers, subwoofers, wiring and installation hardware to turn the plan into a reliable system.
