Battery Current Sensors & Smart Charging: How Aftermarket Grounds Cause Vehicle Errors
Route aftermarket grounds correctly through OEM battery monitoring and current sensors.
The Big Picture
Route aftermarket grounds correctly through OEM battery monitoring and current sensors.

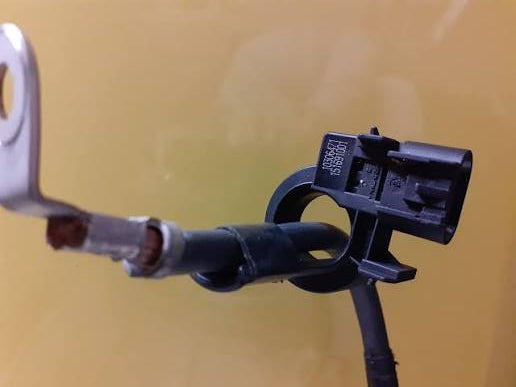

What the Clamp Measures
OEM sensors often surround or integrate into the negative battery cable and report current direction and magnitude.
The control module uses that information with voltage, temperature and time.
How Added Grounds Bypass It
Connecting an aftermarket return directly to the battery post on the wrong side of the sensor can let amplifier current bypass measurement.
The vehicle may miscalculate state of charge or set warnings.
Correct Connection Strategy
Connect added returns on the vehicle side of the monitored sensor unless vehicle documentation specifies otherwise.
Never relocate or enlarge monitored wiring blindly.
Diagnosing Errors
Scan codes, inspect battery registration requirements and compare current paths against diagrams.
Correct wiring before replacing sensors or batteries.
Worked Car-Audio Examples
Loaded test
Measure at the equipment while current flows; a resting reading cannot prove high-current performance.
Final inspection
Record voltage, current and temperature, then recheck hardware after initial heat cycles.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Sensor | Measures current in a battery cable. |
| BMS | Estimates battery state and commands charging. |
| Bypass | Unmeasured current corrupts calculations. |
| Routing | All intended current crosses the monitored point. |
Common Mistakes That Cost Performance—or Equipment
- Skipping vehicle-specific diagrams
- Using unfused reduced cable
- Trusting continuity instead of loaded drop
- Ignoring torque and heat
- Bypassing OEM monitoring
Frequently Asked Questions
What is the first rule?
Protect every positive conductor close to its energy source.
Why load-test?
High current exposes loss hidden by resting measurements.
Should factory wiring be removed?
Usually supplement it unless vehicle-specific instructions say otherwise.
What protects a reduced branch?
A fuse sized for the smaller downstream conductor.
Why document readings?
They create a baseline for future troubleshooting.
Can smart charging change the plan?
Yes. Sensor routing and control strategy must be respected.
When should a professional handle it?
When vehicle architecture, current level or fabrication exceeds your experience.
