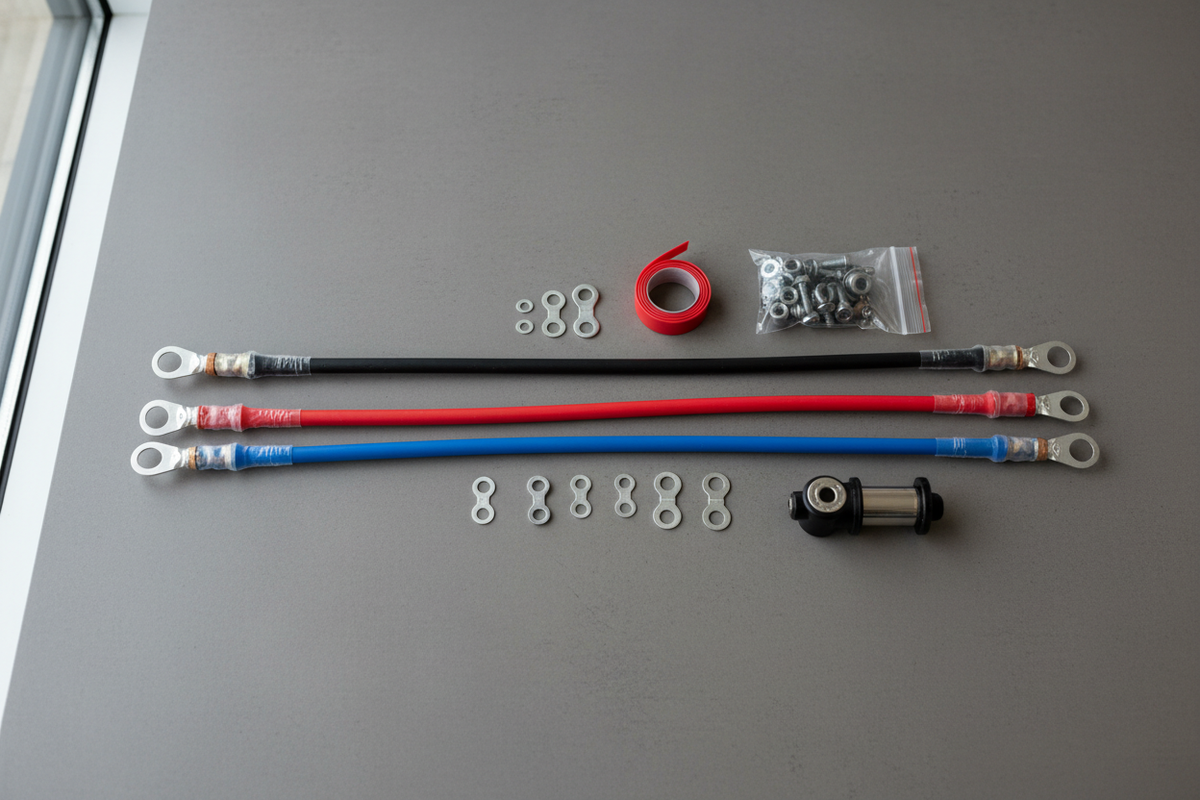

The Big 3 Upgrade: Correct Wiring, Fusing & Modern-Vehicle Considerations
Big 3 upgrade wiring, fusing, smart charging and modern vehicle precautions.
The Big Picture
Big 3 upgrade wiring, fusing, smart charging and modern vehicle precautions.
What the Big 3 Changes
The upgrade supplements alternator positive to battery positive, battery negative to chassis and engine block to chassis. It reduces restriction but does not create alternator capacity.
Retain factory paths unless vehicle-specific instructions authorize removal.
Positive-Side Protection
A new alternator-to-battery conductor can be energized from both ends. Protection strategy must account for cable routing and available fault current.
Never allow an unfused added cable to cross sharp metal.
Smart Charging
Modern systems command charging from sensor data. Added wiring must not bypass monitored current or confuse state-of-charge calculations.
Follow vehicle-specific sensor placement and charging architecture.
Verification
Measure loaded voltage before and after at battery, alternator and amplifier.
A successful upgrade shows lower loss, not merely larger cable.
Worked Car-Audio Examples
Loaded test
Measure at the equipment while current flows; a resting reading cannot prove high-current performance.
Final inspection
Record voltage, current and temperature, then recheck hardware after initial heat cycles.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Alternator | Source path supplement. |
| Battery | Energy storage connection. |
| Engine | Major return path. |
| Chassis | Vehicle distribution network. |
Common Mistakes That Cost Performance—or Equipment
- Skipping vehicle-specific diagrams
- Using unfused reduced cable
- Trusting continuity instead of loaded drop
- Ignoring torque and heat
- Bypassing OEM monitoring
Frequently Asked Questions
What is the first rule?
Protect every positive conductor close to its energy source.
Why load-test?
High current exposes loss hidden by resting measurements.
Should factory wiring be removed?
Usually supplement it unless vehicle-specific instructions say otherwise.
What protects a reduced branch?
A fuse sized for the smaller downstream conductor.
Why document readings?
They create a baseline for future troubleshooting.
Can smart charging change the plan?
Yes. Sensor routing and control strategy must be respected.
When should a professional handle it?
When vehicle architecture, current level or fabrication exceeds your experience.
