Why Modern Car Audio Systems Need Front-to-Rear Grounds: Aluminum Bodies, Unibody Resistance & Loaded Voltage Drop
A return path can read nearly zero resistance while parked and still fail violently when the engine runs and the system draws real current. Modern aluminum bodies, bonded structures, seams and mixed-metal joints make a dedicated front-to-rear return cable a serious design consideration.
The Big Picture
A return path can read nearly zero resistance while parked and still fail violently when the engine runs and the system draws real current. Modern aluminum bodies, bonded structures, seams and mixed-metal joints make a dedicated front-to-rear return cable a serious design consideration.
Why Resting Resistance Lies
An ohmmeter uses tiny test current. It may display near zero through sheet metal, spot welds and bonds that cannot carry 150–300 A without significant voltage difference.
The authoritative test is loaded voltage drop while the exact symptom occurs.
Aluminum and Unibody Construction
Aluminum oxide is resistive, mixed-metal joints can corrode, and unibody structures rely on seams, adhesives and welds rather than one continuous frame rail. Current may cross many interfaces between rear amplifier and front battery.
A single local ground point can be clean yet connect to a weak vehicle-wide return network.

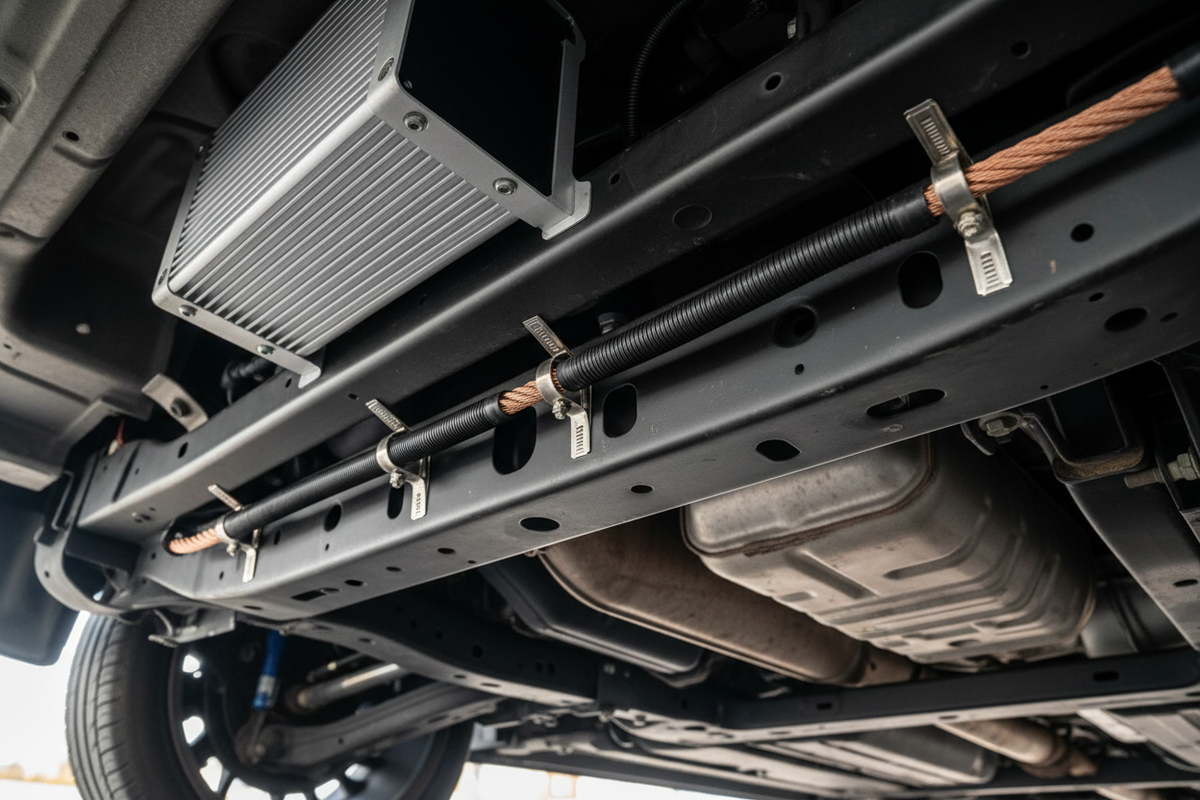

Front-to-Rear Return Cable
A properly sized negative cable creates a known copper path alongside the positive feed. It bypasses unpredictable structural interfaces and often stabilizes amplifier voltage dramatically.
Size it for the same current and loss target as the positive cable, protect and secure it, and connect it within the vehicle’s monitored charging architecture.
Proving the Improvement
Measure battery-negative to amplifier-negative drop at the same RPM, volume and program condition before and after the dedicated return. Record current so effective resistance can be calculated.
The evidence is voltage delivered at the amplifier—not an argument about whether metal should theoretically conduct.
Worked Car-Audio Examples
Loaded failure
A return drops 1.8 V at 150 A: effective resistance is 0.012 Ω and heat is 270 W across the path.
After dedicated return
If the same test falls to 0.30 V at 150 A, effective resistance is 0.002 Ω and lost power falls to 45 W.
Quick-reference concepts
| Concept | What to remember |
|---|---|
| Static Test | Tiny meter current can hide weakness. |
| Loaded Test | Real current exposes voltage loss. |
| Body Path | Seams and bonds are series connections. |
| Return Cable | Predictable copper path back to the source. |
Common Mistakes That Cost Performance—or Equipment
- Trusting resting ohms alone
- Assuming all body panels equal a frame rail
- Grounding to aluminum without corrosion strategy
- Routing added negative outside required sensor path
- Using smaller return cable than positive
Frequently Asked Questions
Why does ground test good with the car off?
The meter uses tiny current that does not stress structural joints.
Why does voltage collapse at high volume?
Large current creates substantial drop across small return-path resistance.
Do aluminum vehicles need special attention?
Yes. Oxide, bonding methods and mixed-metal interfaces can complicate high-current return paths.
Is a front-to-rear ground always beneficial?
It provides a predictable return and is especially valuable when loaded testing exposes body-path loss.
What size should it be?
Design it to carry the same system current with the same loss target as the positive feed.
How do I prove it worked?
Repeat the same loaded battery-to-amplifier ground-drop test.
Can it affect battery sensors?
Yes. Route the added return so OEM current monitoring still sees system current.
