12 Volt Encyclopedia · Volume IV · Article 5
Audio Signal Polarity Explained: Positive, Negative, Signal and Ground
Positive and negative markings are essential, but they do not mean that music flows permanently in one direction. Audio voltage alternates. The markings establish a common reference so every channel and loudspeaker moves in the intended direction at the intended time.
Instantaneous polarity
When a source waveform is positive relative to its reference, the receiving circuit sees one polarity; a moment later the waveform may be negative. Speaker + and − markings define how the driver responds to that changing voltage. With conventional polarity, a positive test pulse at the positive terminal moves the cone outward.
Polarity versus phase
Reversing two speaker leads changes polarity by 180 degrees at all frequencies in the ideal electrical sense. Phase describes timing relationships that may vary with frequency because of filters, driver behavior and path length. A polarity switch can sometimes improve a crossover relationship, but polarity and phase are not interchangeable concepts.

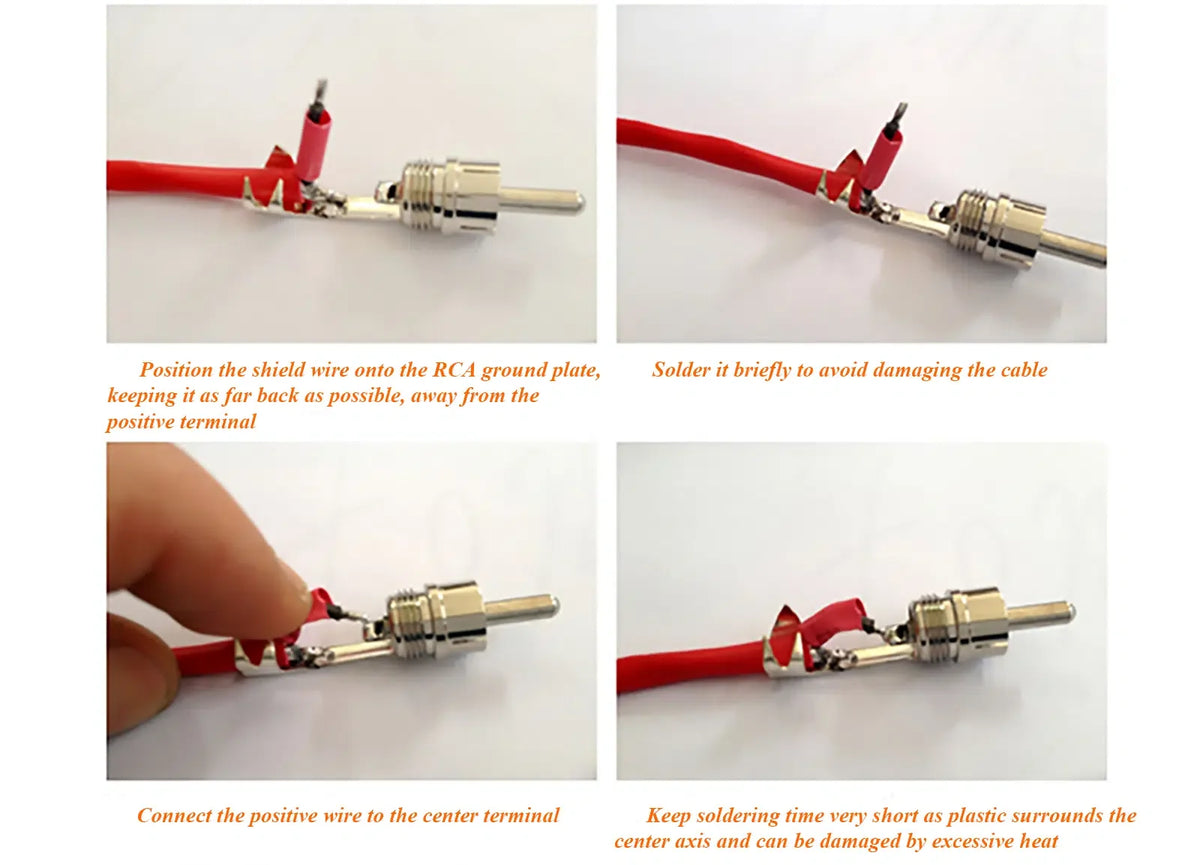

RCA center and shell
In a conventional unbalanced RCA, the center pin carries signal and the shell is the signal return/shield. The shell may connect to internal signal ground, but it should not be treated casually as a high-current chassis ground. Damaged shield paths can cause hum, whine or intermittent audio.
Why speaker negative may not be ground
Bridge-tied-load outputs drive both speaker conductors. One moves positive while the other moves negative, increasing the total voltage across the speaker. Grounding either conductor can short an output stage. This topology is common in head units, factory amplifiers and aftermarket amplifiers.
Identifying paired conductors
Speaker cable commonly marks one conductor with a stripe, ridge, printing or different color. The mark does not possess universal electrical meaning; the installer assigns it consistently. Vehicle harness colors also vary, so documentation and testing outrank assumptions.
What reversed polarity sounds like
One reversed speaker may cause cancellation, weak centered vocals, unstable imaging or reduced midbass. Two speakers both reversed may preserve their relationship to each other but invert their relationship to other drivers. Subwoofer polarity is often tested during tuning because crossover phase and cabin paths complicate the result.
Polarity test procedure
Power the system down, verify wiring visually and use a purpose-built polarity tester or a brief low-voltage pulse only on a disconnected passive speaker. Never pulse factory electronics, amplified speakers or unknown circuits. After correction, confirm with music, measurement and channel-by-channel listening.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does current flow only from speaker positive to negative?
No. Audio current reverses direction as the waveform alternates.
Can I connect speaker negative to the vehicle body?
Not unless the manufacturer explicitly specifies a common-ground output. Modern equipment generally should not be wired that way.
Is RCA shield the same as battery negative?
It may share a reference internally, but it is a sensitive signal path and must not carry equipment power current.
Does reversing both front speakers hurt anything?
It may not damage them, but it changes their acoustic relationship with other drivers.
Can a multimeter prove acoustic polarity?
It can identify continuity and some electrical relationships, but a polarity tester or controlled pulse confirms driver motion more directly.
