How to Identify RCA Channels, Speaker-Wire Polarity and Unknown Audio Wiring
Wire identification should be a controlled diagnostic process, not a color-matching contest. A vehicle may contain factory amplifiers, bridged outputs, data-controlled circuits and repeated colors. The safest method combines documentation, inspection and measurements while disturbing the circuit as little as possible.
Common RCA conventions
Red usually indicates right channel and white or black usually indicates left. Multi-channel harnesses may add labels such as FL, FR, RL, RR, SUB or CH1–CH6. Color is a convenience, not an electrical law. Label both ends before routing so a hidden cable never becomes a guessing exercise.
Speaker-wire markings

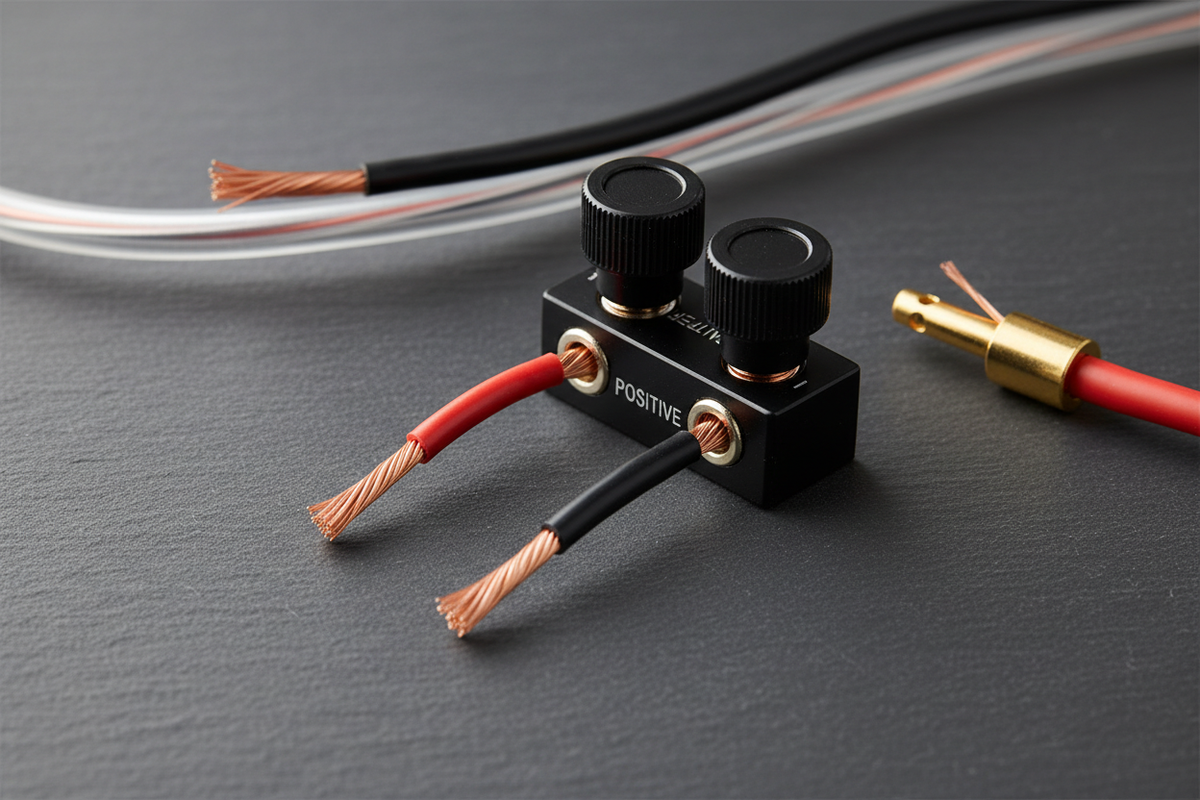

Aftermarket two-conductor cable may identify one side with a stripe, molded ridge, printing or differently colored insulation. Choose a convention—marked conductor as negative, for example—and use it everywhere. Consistency matters more than which side receives the mark.
Finding speaker pairs
With power disconnected, a wiring diagram is the first choice. Resistance testing can help locate a passive speaker pair, but factory crossovers, amplifiers and protection networks complicate readings. Never use resistance mode on a powered circuit. A tone generator and inductive probe can trace aftermarket wiring without dismantling the entire vehicle.
Determining polarity
A dedicated speaker-polarity tester applies or recognizes a pulse and reports direction. A brief 1.5-volt battery test may be used only on a disconnected passive speaker when direct cone movement can be observed. Do not use that technique through factory electronics or on tweeters without appropriate protection.
Identifying live audio with a meter
AC-voltage measurements can show that a pair carries changing audio when a test tone plays. Compare channels at the same source volume and frequency. A meter does not reveal every signal property, so an oscilloscope, analyzer or test speaker through proper isolation may be required.
Recognizing bridged outputs
If both conductors show changing voltage relative to chassis, the channel may be bridged or balanced. Measure across the pair and consult documentation. Never combine negatives or attach them to ground simply because the circuit resembles ordinary speaker wiring.
Building a permanent wire map
Record connector location, pin number, factory color, aftermarket color, function, polarity, measured voltage and destination. Photograph connectors before depinning them. Heat-shrink labels at both ends turn future service from archaeology into a straightforward job.
Troubleshooting swapped channels
Use a left/right identification track or individual test tones at low level. Confirm the source balance control first, then inputs, processor routing, amplifier channels and speaker outputs. Change one connection at a time and document the result.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is red RCA always right?
It is the common convention, but labels and testing should confirm it.
Can wire color identify factory polarity?
Sometimes, but vehicle-specific documentation is safer because conventions vary.
Can I use continuity mode on connected electronics?
Only with the circuit fully de-energized and when the test cannot backfeed or damage modules. Disconnecting components is safer.
Why label both ends?
A cable can be crossed, extended or rerouted; end-to-end labels preserve channel identity.
What is the safest unknown-wire test?
Begin with the correct diagram, power-state verification and noninvasive measurement before applying any external signal.
