THE 12 VOLT ENCYCLOPEDIA · VOLUME IX

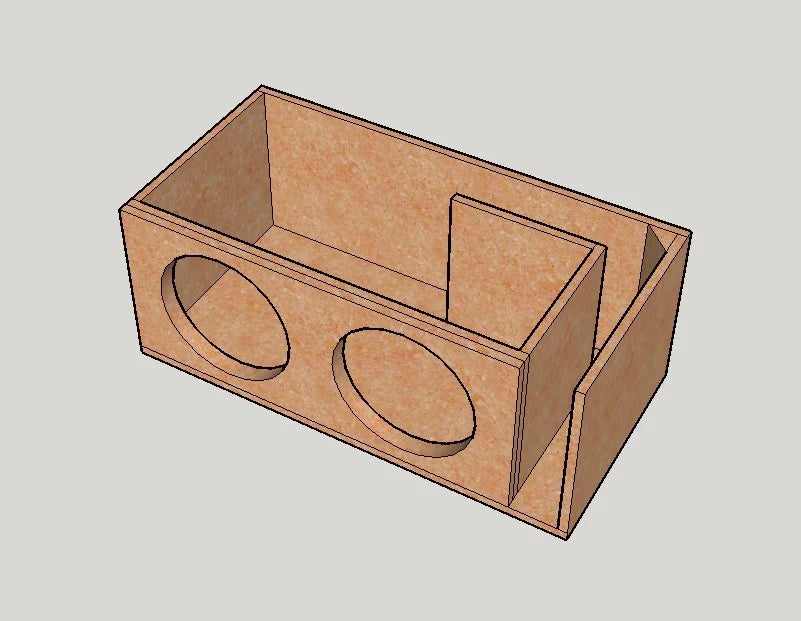

Loudspeaker Enclosure History & Cabinet Science: From Open Baffles to Modern Car Audio
A woofer cabinet is not furniture surrounding a speaker. It is half of the acoustic machine. It controls what the cone’s rear wave can do, changes the mechanical load on the driver, and decides whether electrical power becomes useful bass, heat, turbulence or shaking wood.
Before the modern box
Early loudspeakers often used large baffles and horns because amplifier power and driver excursion were scarce. A flat baffle separates the cone’s front and rear radiation, but low frequencies wrap around its edges and cancel unless the baffle is enormous. Horns traded physical size for acoustic efficiency. Cinema, theater and public-address demands pushed designers toward folded paths, corner loading and controlled mouths long before a trunk subwoofer existed.
The foundational milestones
Albert L. Thuras’s early-1930s work described a vented loudspeaker system in which the cabinet and opening form a resonant acoustic circuit—the foundation of bass reflex. Paul Voigt advanced tapered pipes and corner horns. Paul W. Klipsch turned the room corner into part of a folded horn. Harry Olson and RCA published major systematic studies of direct radiators, baffles, horns and enclosures. These were not styling exercises; they were attempts to transform impedance and control the rear wave.
From clever geometry to predictable engineering
A. R. Bailey’s 1960s transmission-line writing helped bring damped quarter-wave ideas to builders. A. Neville Thiele and Richard Small then gave designers a repeatable parameter system for predicting low-frequency alignments. Driver resonance, electrical and mechanical damping, equivalent compliance and box volume could finally be treated as a connected model. Modern simulation is faster, but it still rests on those relationships—and still fails when the input data or actual box differs from the model.
What the rear wave is doing
Both sides of a cone create sound pressure, but they move in opposite polarity. If they meet freely at low frequency, they cancel. A sealed box contains and damps the rear wave. A reflex box stores rear-wave energy and releases part of it through a resonator. A bandpass box filters one or both sides through chambers. A line delays and damps it. A horn progressively transforms the driver’s small radiating area into a much larger effective mouth.
Backpressure is an incomplete word
Installers often say a woofer “needs backpressure.” The useful concept is acoustic load. A sealed air volume acts as a spring; a vented system presents frequency-dependent pressure and mass; a horn presents an impedance transformation. Pressure itself is not automatically protective or efficient. Excessively small boxes can raise stiffness and power demand, while badly tuned vented boxes can unload the cone below tuning even though pressure exists elsewhere in the system.
Flex, leakage and lost output
Every panel is asked to contain alternating pressure. A flexing wall becomes an unintended radiator and consumes energy that should move the intended cone or port. Leakage converts a designed acoustic circuit into an uncontrolled one. Shorter unsupported spans, adequate thickness, strong joints and braces placed between high-motion panels matter more than simply making the outside heavy. A double baffle helps the driver mount, but it does not brace a broad rear wall.
Standing waves, guides and internal obstacles
Parallel surfaces support internal modes whose half-wavelengths fit the cavity dimensions. At subwoofer frequencies many car boxes are small relative to wavelength, but upper harmonics and bandpass chambers can still expose modes. Angled panels, damping and irregular geometry may help. “Waveguides” inside a sub box are not universal magic: a smooth flare or corner transition can reduce separation, while random wedges can steal volume, choke airflow and create new resonances.
The measurement reality
A design is finished only after the built enclosure is measured. Net volume changes when the driver, port and bracing are installed. Vehicle boundaries and cabin gain change the result again. Impedance sweeps reveal resonance and leaks; near-field measurements separate cone and port behavior; voltage, excursion, temperature and noise tests reveal practical limits. The historic lesson is simple: geometry proposes an alignment, but measurement confirms it.
Frequently Asked Questions
Who invented the bass-reflex enclosure?
Thuras’s patented early work is a foundational milestone, though modern reflex design grew through many researchers and later Thiele/Small modeling.
Does a woofer need backpressure?
It needs an appropriate frequency-dependent acoustic load, not pressure for its own sake.
Does a heavier box always sound better?
No. Stiffness, span length, joints, leakage and resonance control matter more than weight alone.
Can a waveguide improve every box?
No. A correctly modeled transition can help airflow; an improvised obstacle can reduce volume and create turbulence.
Why does simulation differ from the car?
Driver variation, net-volume errors, losses, temperature, boundaries and cabin transfer function are not perfectly represented.
Final Word
Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
