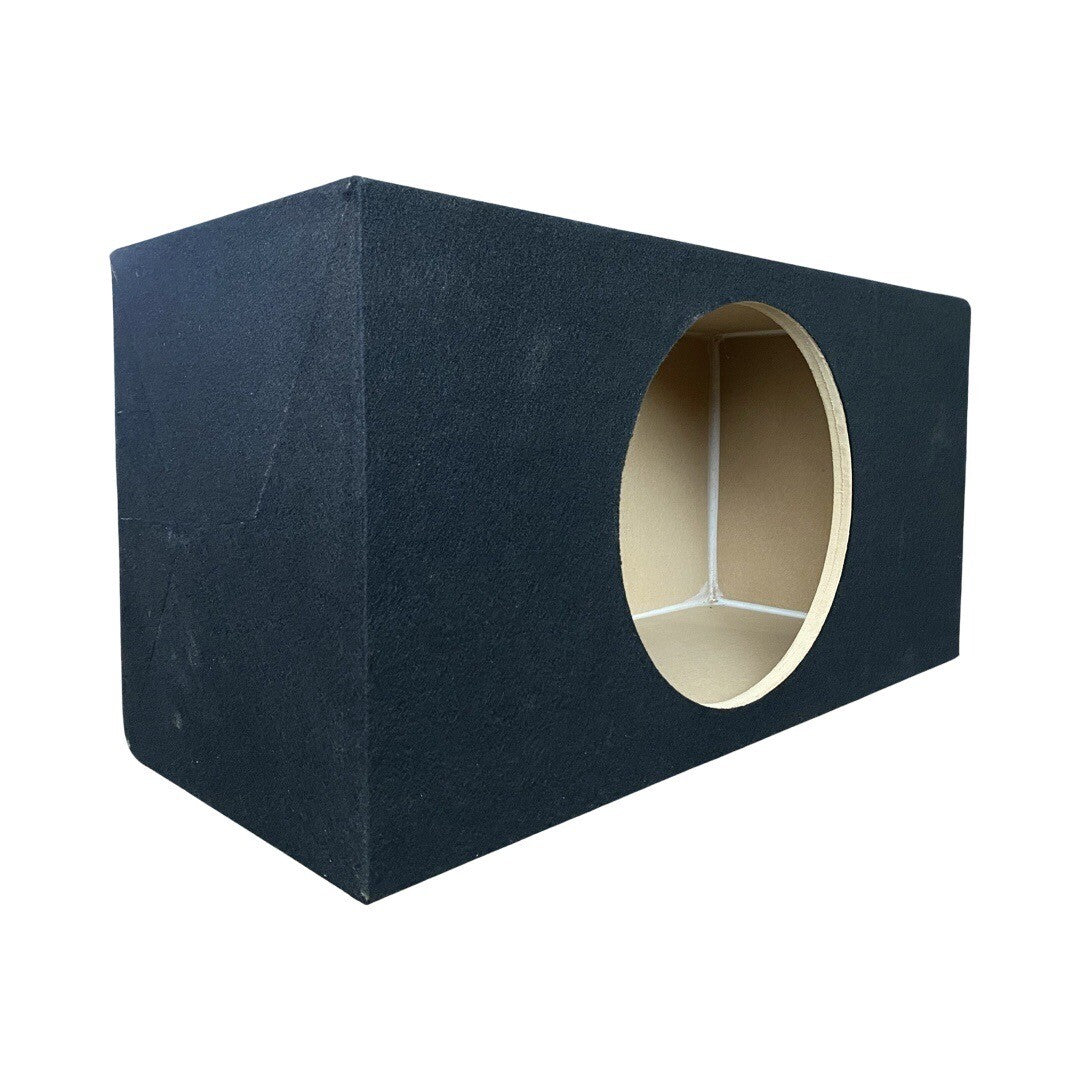

A sealed box does not have an Fb port tuning

There is no Helmholtz vent resonance to “tune” in the reflex sense. Builders shape a sealed alignment by choosing net volume, which establishes the combined system resonance Fc and total Q, Qtc. Loose fill, leakage and driver variation can move those values. Calling a sealed box “tuned to 32 Hz” is usually shorthand for a modeled response goal, not an actual port tuning.

The air spring

As the cone moves inward it compresses the trapped air; outward motion reduces pressure. That compliance joins the suspension of the driver. A smaller box creates a stiffer spring, raises resonance and increases force opposing displacement. This can reduce excursion in part of the band, but it also requires more amplifier voltage for the same deep-bass output and can create a higher-Q hump.

Qtc in plain English

Qtc describes damping around the closed-box resonance. Around 0.707 is the classic maximally flat mathematical alignment in free space. Lower values are more heavily damped and begin rolling off earlier but gently. Higher values can create more output near resonance and a faster transition below it. No number alone determines sound quality: the cabin, crossover, level and available EQ reshape the result.

The idealized equations

For a conventional model, Qtc = Qts × √(1 + Vas/Vb), and Fc = Fs × √(1 + Vas/Vb). Vb is net internal air volume, not outside dimensions. These equations assume linear parameters and negligible leaks. They show why reducing Vb raises both system Q and resonance. Software adds losses, leakage, inductance, excursion, power and cabin assumptions, but cannot fix inaccurate driver data.

Net volume and displacement

Start with internal dimensions, then subtract the submerged volume of the woofer, braces, terminal cup and any internal structure. Do not subtract loose fiberfill as though it were solid. Measure irregular fiberglass wells by known-volume fill methods or careful 3D geometry. A ten-percent volume error can be meaningful in a very small high-Q enclosure.

Excursion, power and equalization

Below resonance a sealed system typically rolls off near 12 dB per octave acoustically. Cone excursion continues rising as frequency falls. Cabin gain may extend response, but it does not cancel mechanical risk. Low-frequency EQ consumes huge voltage and displacement: a 6 dB boost requests roughly four times the power at the boosted frequency into the same load, before compression and limits.

Leaks and isobaric variants

A sealed cabinet must actually be sealed. A slow cone return after gentle manual displacement is only a rough clue; an impedance sweep is better. Two matched drivers in an isobaric pair can obtain a similar alignment in roughly half the enclosure volume, but efficiency falls and complexity rises. It is a packaging trade, not free output.

Where sealed works well in cars

Sealed boxes suit compact installations, broad bandwidth, predictable rolloff and systems that can use cabin gain or DSP responsibly. They tolerate design error better than many resonant boxes, but they are not automatically “SQ” and ported is not automatically “SPL.” A well-designed sealed system can be loud; it simply trades the port’s resonant efficiency for size, bandwidth and control.

Frequently Asked Questions

Final Word

Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
