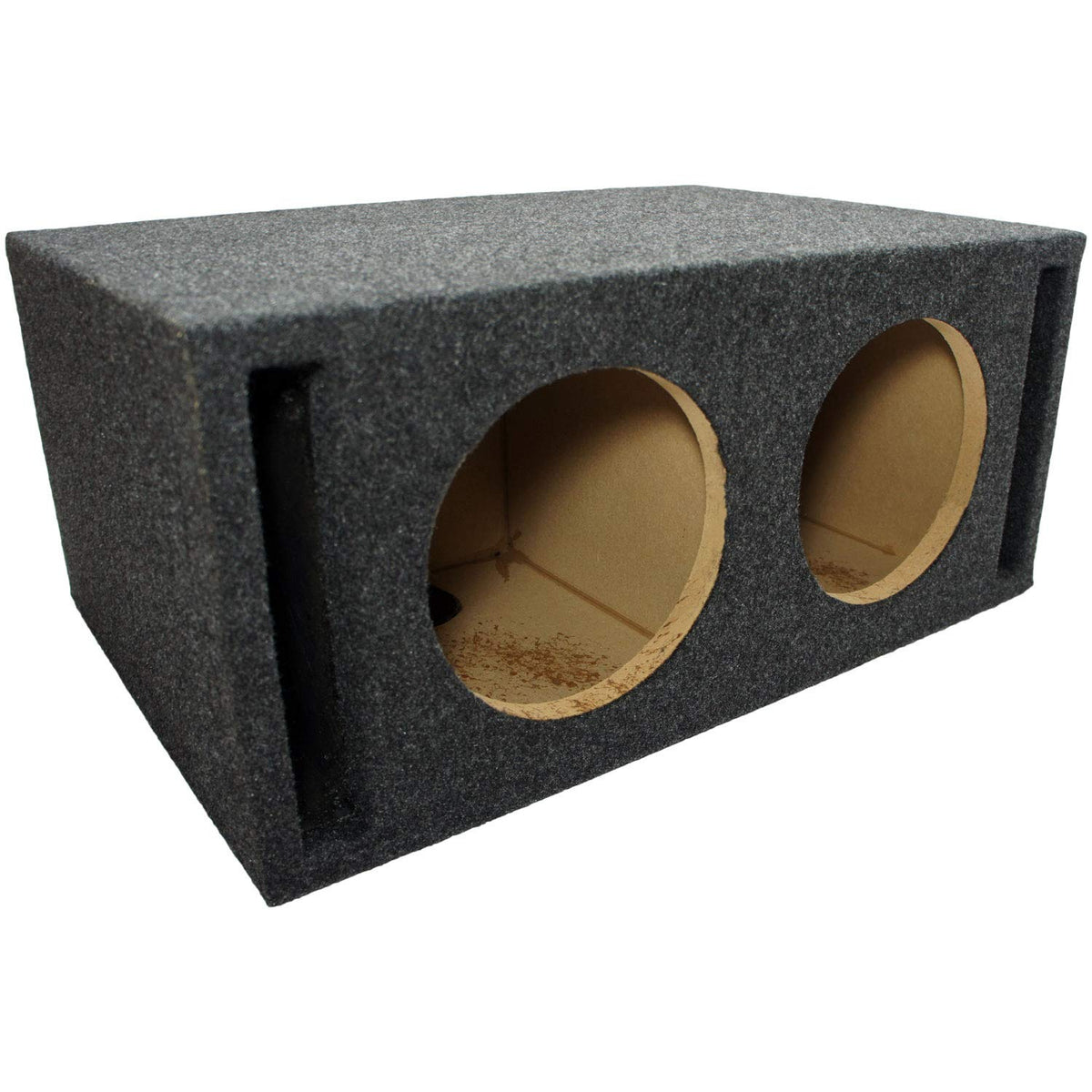

The Helmholtz resonator

The air in the port behaves mainly like a moving mass; the air in the enclosure behaves mainly like a spring. Their resonance is approximately Fb = c/(2π) × √[S/(Vb×Leff)]. S is port area, Vb is net enclosure volume and Leff is effective—not merely physical—port length. Larger area needs greater length to preserve the same tuning. Larger volume or longer effective length lowers tuning.

What happens at and below tuning

At Fb, rear-wave energy drives strong port flow and cone excursion is locally reduced. Far below Fb, the port and cone no longer provide useful loading; cone motion can rise dramatically while acoustic output falls. That is why a properly selected infrasonic high-pass filter is often essential. It must be chosen from the actual alignment and content, not set blindly to a fashionable number.

Port area does not choose peaky versus flat by itself

Small area raises air velocity, turbulence and compression. Large area reduces velocity but demands a longer port, consumes more net volume and can introduce a lower pipe resonance or packaging problem. The response shape comes from driver parameters, net volume, tuning, damping and losses together. Changing area while keeping true Fb constant should not magically transform alignment shape, although real losses and compression can change measured output.

Flares and end correction

Air just beyond a port opening participates in the moving mass, so acoustic length exceeds the straight tube dimension. End correction depends on whether the termination is flanged, unflanged, near a wall, inside a baffle or strongly flared. Inner and outer flares reduce separation noise and alter effective length. There is no single correction number valid for every flare; use the port maker’s model or measure completed Fb.

Bends and centerline length

For a folded slot port, measure the acoustic path through the center of the duct around each bend—not only the inner or outer wall. Tight square bends encourage separation and create unequal paths. A generous radius or properly shaped corner transition can reduce loss. A bend does not inherently “add bass”; it packages needed length and changes losses and effective geometry.

Aspect ratio and boundary effects

Very narrow high-aspect-ratio slots have more wall surface per unit area, increasing viscous boundary loss. Ports sharing cabinet walls may behave differently from a freestanding tube because adjacent surfaces influence termination. Keep the inside mouth away from the driver, rear wall and braces; if the clearance approaches the duct’s smallest dimension, the opening can be effectively choked.

Port resonances and noise

A port is also a pipe with higher resonant modes. Long ducts can place a pipe resonance inside the subwoofer passband or close enough to leak upper harmonics. Flares reduce chuffing but cannot rescue inadequate area at extreme displacement. Listen for turbulence and measure compression by comparing response at progressively higher drive levels.

Confirm the finished enclosure

Calculate with exact net volume, then verify. An impedance sweep normally shows two reflex peaks with a valley near Fb. Added fill, leakage, temperature, wall proximity and real flare geometry can shift the result. Trim an adjustable port in small steps; shortening raises tuning. You cannot reliably recover material after cutting, so begin slightly long.

Frequently Asked Questions

Final Word

Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
