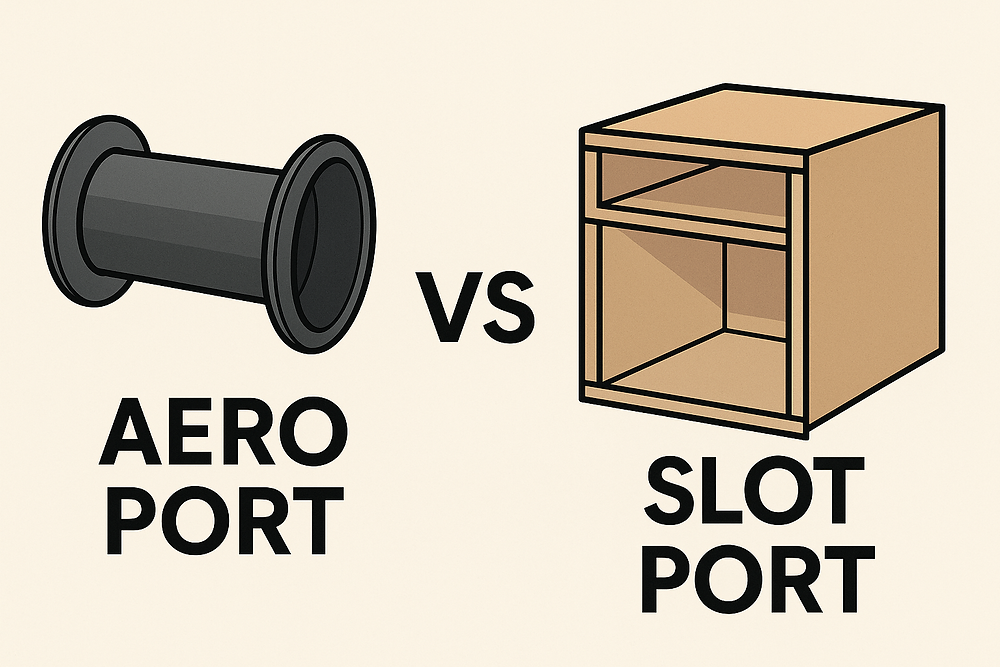

Slot Ports vs. Aeroports: Tuning Accuracy, Airflow, Flares and Sound
A slot port and a round port obey the same basic resonator physics. Shape changes perimeter, boundary loss, packaging, termination and fabrication—not the existence of a separate kind of bass. Either can be accurate when its effective dimensions and real end conditions are understood.
Equal area is not equal behavior
A narrow slot and a circle can share cross-sectional area, yet the slot has more perimeter in contact with air. That raises boundary-layer loss and makes very high aspect ratios less attractive. A circle encloses maximum area for minimum perimeter, which is efficient for airflow, but large round ducts may be difficult to package.
Why aeroports use flares
Rounded entrances let flow accelerate and decelerate with less separation, delaying audible chuffing and compression. Both inner and outer flares matter because flow reverses every half cycle. A giant flare does not compensate for a tiny center tube; the narrowest section and total geometry still govern velocity and mass.
Slot-port strengths
A slot can become part of the cabinet structure, use a wide baffle edge and fold around limited space. It can provide large area without buying multiple tubes. Its weaknesses are displacement, long walls that can resonate, high aspect ratio, tight turns and termination against nearby cabinet surfaces.
Which is more accurate to tune?
Neither wins automatically. A straight commercial round port with published flare corrections can be easier to predict and trim. A carefully modeled slot can also be exact. Accuracy comes from net volume, effective centerline length, termination, area and measurement—not from roundness.
How waves differ
At the fundamental, both primarily move a plug of air. At higher frequencies their cross-sectional modes and pipe resonances differ. Since a subwoofer port should operate below those modes, the audible differences commonly blamed on “round sound” versus “slot sound” are more often velocity, losses, resonance leakage or changed alignment.
Wall proximity and clearance
An inside opening placed too near a wall or brace changes end behavior and restricts flow. Maintain generous clearance—at least comparable to the smallest duct dimension is a useful minimum starting point, with more around large flares. Outside obstructions such as a hatch panel can also alter loading and noise.
Waveguides and turning vanes
A broad radius at a slot bend can keep area more consistent. A poorly placed 45-degree block may shrink the duct or change effective length. Multiple turning vanes can add surface loss and split flow unevenly. Any guide must be drawn into the area model, not added after tuning is calculated.
Choose from the complete system
Compare required area, velocity at target power, necessary length, enclosure displacement, pipe resonance, adjustability and exit location. Then build slightly long, sweep the finished cabinet and trim. The best port is the one that meets the acoustic target and can be built accurately in the available vehicle space.
Frequently Asked Questions
Do aeroports always play louder?
No. Their flares can reduce loss, but total area, tuning and system limits govern output.
Do slot ports sound deeper?
Shape alone does not determine extension; alignment does.
Can a port exit near a hatch?
Yes, but close boundaries change loading and may cause noise.
Are 45-degree blocks always helpful?
Only when they preserve a smooth intended area and transition.
How do I verify tuning?
Use an impedance sweep or suitable acoustic method on the completed box.
Final Word
Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
