Aperiodic Bi-Chamber (ABC) Enclosures: The Rare Coupled-Cavity Subwoofer Box

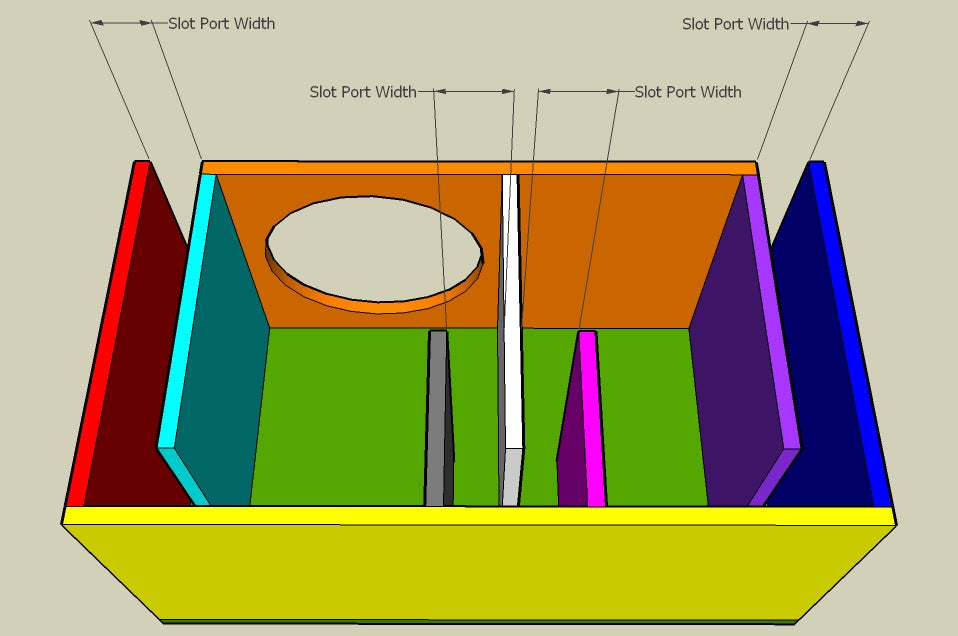

ABC is one of those labels whose shop usage is not perfectly standardized. The commonly intended design uses two coupled air volumes and more than one opening so the driver works into interacting resonances. The only safe specification is a physical diagram showing every chamber and where each duct terminates.
What “aperiodic” can mean
In loudspeaker literature, aperiodic can describe resistively damped vents that lower system Q. In car-audio ABC discussion, it often refers to a coupled bi-chamber alignment with an inter-chamber opening and an external vent. Those are not identical concepts. Name the topology and state whether any opening contains resistive material.
Coupled chambers
One chamber’s compliance and duct mass interact with the second chamber’s compliance and outside vent. The system can produce two useful resonant regions with a controlled response between them. Because energy moves through coupled elements, changing the middle opening can shift more than one feature.
Why it is rare
The box needs extra partitions, exact net volumes, multiple ducts and access to otherwise hidden spaces. It is harder to simulate, harder to explain and easier to build incorrectly than a conventional reflex enclosure. Modern DSP cannot correct severe acoustic misalignment or port compression, so electronics have not removed the design burden.
Potential advantages
A successful alignment can broaden useful response, distribute vent loading and create an output character that differs from a single reflex chamber. Packaging may suit a particular vehicle shape. These are design-specific advantages—not a guarantee that ABC beats a simpler box of equal external volume.
Ports and losses
Each opening needs adequate area, controlled termination and clearance. Resistive damping, if used, must have stable airflow resistance and remain secured. Wall friction, bends and end correction affect both resonances. A middle duct buried behind the woofer is especially difficult to trim after assembly.
Driver suitability
The driver’s electrical damping, compliance, moving mass, resonance, excursion and thermal limits all enter the alignment. EBP may suggest a direction but cannot approve an ABC design by itself. Use measured parameters for the actual driver population when possible.
How to build and commission it
Construct one chamber or access panel so port length can be adjusted. Measure an impedance sweep at low level, compare peaks and valleys with the model, check for leakage, then make small changes. Follow with cone/port near-field measurements and increasing-level compression tests.
When to choose ABC
Choose it because a modeled coupled-cavity response solves a stated bandwidth, packaging or output problem—not because rarity sounds advanced. If a sealed or reflex box meets the goal with less volume and risk, simplicity is an engineering advantage.
Frequently Asked Questions
Is ABC the same as a resistive aperiodic membrane?
Not necessarily; the term is used for different topologies.
Is it a bandpass box?
It is a coupled multi-chamber resonant system, but exact classification depends on driver and vent connections.
Why are diagrams essential?
Names vary, while the physical connections determine the behavior.
Can I tune each port independently?
Not completely. Coupled resonators interact.
Is ABC louder than ported?
It can be advantageous in a chosen band, but there is no universal output win.
Final Word
Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
