Horn-Loaded Subwoofer Enclosures: Front, Rear, Folded and Tapped Horns
A horn is an acoustic transformer. It couples a relatively small, high-pressure driver motion to a progressively larger air load. The reward can be exceptional sensitivity and reduced cone travel over the passband. The price is size, bandwidth constraints and geometry that must be engineered as a system.
Throat, path and mouth
The throat is the small high-pressure entrance near the driver. The horn expands along its path toward the mouth. Expansion rate and path length establish acoustic loading and low-frequency behavior. A mouth too small for the target wavelength loses ideal loading and creates ripple; boundaries such as a floor, wall or corner can make the effective radiating environment larger.
Front-loaded horns
The front of the cone drives the horn throat, while the rear is placed in a sealed or otherwise controlled chamber. Front-loaded bass horns can be extremely efficient but become enormous as cutoff falls. Folding packages the path but introduces bends and possible higher-mode behavior. They are common where output per watt matters and space can be dedicated.
Rear-loaded and scoop families
A rear-loaded horn uses the cone’s front radiation directly while routing the rear wave through a horn path. Scoops and classic folded bass systems are variations with complex combining behavior. Direct and horn outputs must arrive in a useful phase relationship; outside that range they can cancel or produce ripple.

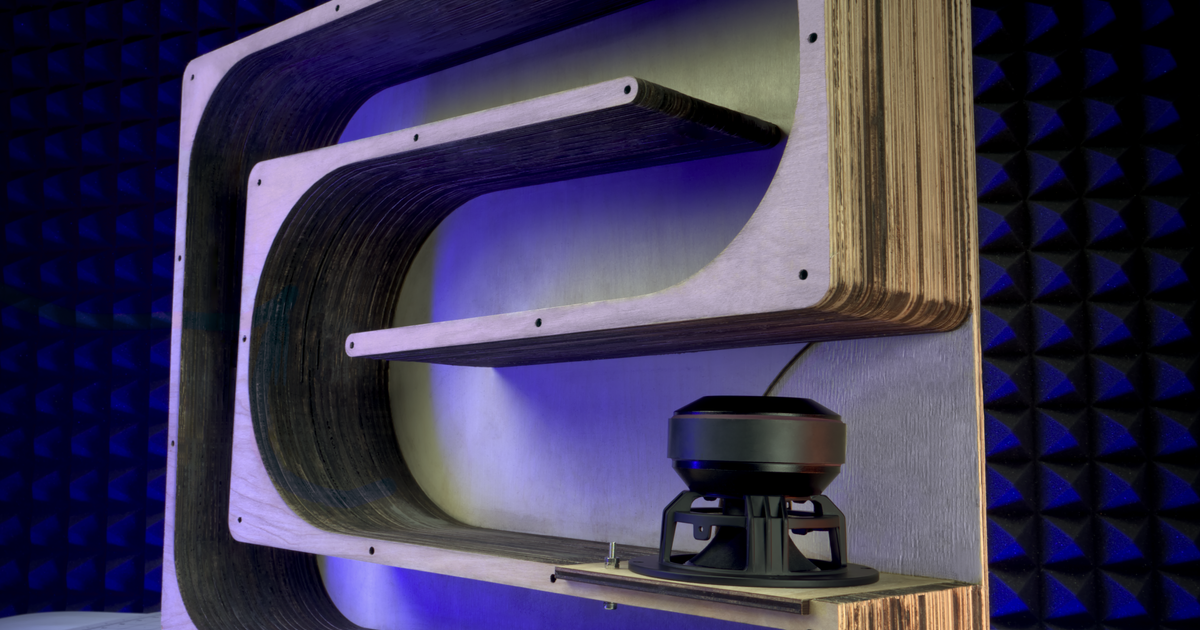

Tapped horns
A tapped horn places two sides or two acoustic contributions of the same driver at different points along one folded line. Proper spacing allows those contributions to add over a chosen band. It behaves as a coupled distributed system, not simply a port with a flare. Placement, chamber segments and driver parameters must be modeled together.
Flare profiles
Exponential, conical, hyperbolic and other profiles change how area expands and how loading develops. No profile is automatically superior at every frequency or size. A practical design balances cutoff, mouth, path, ripple and buildability. Changing one panel can alter throat area, flare rate and chamber volume simultaneously.
Folds and construction
At low frequencies a fold may be compact relative to wavelength, but tight turns and abrupt discontinuities still influence loss and upper modes. Keep cross-sectional progression faithful, brace broad panels and round or facet transitions when the model assumes a smooth expansion. Adhesive fillets also prevent tiny leaks along complex internal seams.
Why horns get loud
Within their loaded band, horns improve radiation efficiency, so less cone motion and amplifier power can create a given acoustic level. They do not create energy. Below cutoff loading collapses, excursion can rise and protective filtering becomes important. Thermal compression, mouth compression and boundary conditions still limit output.
Car-audio reality
True low-bass horns are usually large, so many car builds use tapped, hybrid or short-path designs. Vehicle boundaries can help mouth loading, but cabin modes can also exaggerate ripple. A simulation validated with impedance and acoustic measurements is essential; copying a pro-audio cabinet and scaling dimensions does not preserve the same physics.
Frequently Asked Questions
Is a tapped horn just a ported box?
No. It uses distributed line segments and multiple driver coupling points.
Why are bass horns so large?
Low frequencies require long paths and large mouths for strong loading.
Do folds ruin a horn?
Not inherently, but area discontinuities and tight turns can add loss and modes.
Are horns free power?
No. They improve acoustic efficiency within a limited band.
Can I scale every dimension for a new frequency?
Geometric scaling changes required driver behavior and vehicle interaction; remodel it.
Final Word
Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
