Transmission-Line Subwoofer Enclosures: Quarter-Wave Design, Folding, Stuffing and Real Applications
A transmission line routes the cone’s rear radiation through a long duct so its delayed output can reinforce useful bass while damping unwanted energy. Real designs sit on a spectrum from heavily damped line to mass-loaded quarter-wave resonator; “T-line” is not one fixed recipe.
Quarter-wave foundation
A starting relationship is L = c/(4f), where c is sound speed and f is the target frequency. At 20°C, c is about 343 m/s. An uncorrected 30 Hz quarter wave is about 2.86 m or 9.38 ft—far longer than most trunks. Folding, taper, driver position, end correction, stuffing and mass loading change the realized resonance, so raw arithmetic is only a first sketch.
How reinforcement occurs
The rear wave travels down the line and emerges delayed. Around the intended quarter-wave region, the mouth output can combine constructively with the front radiation. The line also supports odd harmonics. Driver placement away from the closed end, tapering and damping can suppress troublesome upper modes rather than allowing the cabinet to behave like an organ pipe.
Cross-sectional area and taper
Line area controls acoustic impedance, velocity and physical volume. A line may taper smaller, expand, remain constant or terminate in a restricted vent. Taper is not cosmetic: it shifts modes and loading. Rules based only on cone area are starting heuristics. Serious design uses a transmission-line model with the driver’s parameters and includes losses.
Stuffing changes more than absorption
Fibrous material dissipates energy through friction and heat exchange, attenuates upper modes and can make wave propagation appear slower. Heavy stuffing near the closed end is common, with less toward the mouth. Overstuffing can erase useful output and alter tuning. Material density must be repeatable; “one pillow” is not a scientific unit.

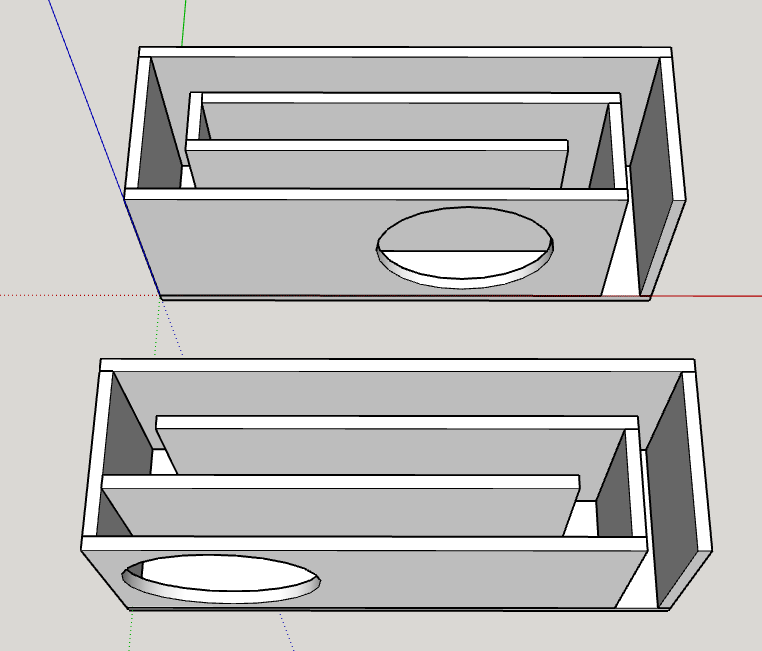

Folding the line
A folded path is measured down its acoustic centerline. Abrupt constrictions, pinched corners and braces across the path add loss. Folds can alter higher modes even when centerline length is correct. Maintain intended area through turns and use smooth transitions without accidentally creating a second resonator.
SQ, SPL or something else?
A well-damped line can provide broad low-frequency extension and controlled upper modes; a lightly damped or mass-loaded line can emphasize efficiency around its resonance. That means the topology can serve sound-quality, daily-output or specialized goals. It is not automatically “musical,” and it is rarely the smallest path to maximum burp output.
Vehicle packaging and cabin gain
The long path is the obstacle. Folding adds fabrication complexity, and the large cabinet changes vehicle boundary loading. Cabin gain may support the lowest octave, allowing a higher line target than free-space response suggests. Model the enclosure first, then measure in the actual placement because mouth orientation can materially change results.
Quarter-wave reference table
The table below uses 343 m/s with no end, taper, stuffing or driver-position correction. It is a wavelength reference—not a cut sheet. A modeled line can be appreciably shorter than these bare values.
| Frequency | Full wavelength | Quarter wave | Quarter wave |
|---|---|---|---|
| 15 Hz | 22.87 m | 5.72 m | 18.76 ft |
| 20 Hz | 17.15 m | 4.29 m | 14.07 ft |
| 25 Hz | 13.72 m | 3.43 m | 11.25 ft |
| 30 Hz | 11.43 m | 2.86 m | 9.38 ft |
| 35 Hz | 9.80 m | 2.45 m | 8.04 ft |
| 40 Hz | 8.57 m | 2.14 m | 7.03 ft |
| 50 Hz | 6.86 m | 1.72 m | 5.63 ft |
| 60 Hz | 5.72 m | 1.43 m | 4.69 ft |
| 80 Hz | 4.29 m | 1.07 m | 3.52 ft |
| 100 Hz | 3.43 m | 0.86 m | 2.81 ft |
Frequently Asked Questions
Is every long slot box a T-line?
No. Some are simply large ported boxes; acoustic behavior determines the category.
Can I use wavelength alone to design it?
No. Area, taper, driver position, damping, termination and parameters all matter.
Does stuffing lower tuning?
It can slow apparent propagation and alter modes, but the amount depends on material and density.
Are T-lines only for sound quality?
No. Their alignment can be broad and damped or output-oriented.
Where is line length measured?
Along the acoustic centerline through every fold.
Final Word
Enclosure design is controlled energy management. Choose a topology because its size, passband, efficiency, excursion and construction demands fit the vehicle and listener—not because a nickname wins an internet argument. When the drawing, math, build and measurement agree, the “sorcery” becomes repeatable engineering.
