12 Volt Encyclopedia · Volume V · Article 3

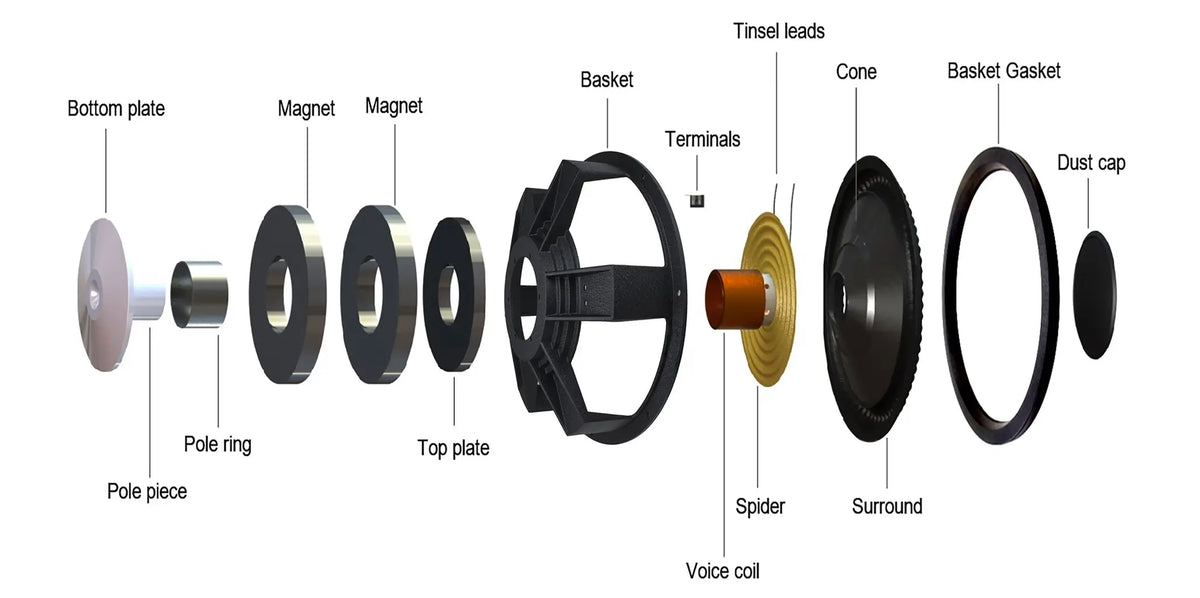

Subwoofer Anatomy, Part One: Cone, Surround, Dust Cap, Basket and Terminals
The visible half of a subwoofer must remain rigid where rigidity is needed, flexible where movement is required and secure through millions of cycles. A failure in a small bond or lead can silence a motor capable of tremendous force.
Cone
The cone couples voice-coil motion to air. Its mass, stiffness, shape and damping affect breakup and bandwidth. Added thickness can improve rigidity but increases moving mass. Geometry and reinforcement often matter as much as the headline material.
Dust cap and center treatment
A dust cap protects the gap and can stiffen the cone’s center. Some drivers use an inverted cap or one-piece cone; others expose a vented pole through the center. Cap mass and bonding contribute to moving behavior and mechanical reliability.
Surround
The surround joins cone to basket, allows excursion and helps center the moving assembly. Its roll geometry, compliance and material affect available travel and restoring force. Too little clearance can cause rubbing or deformation at high excursion.
Basket or frame
The basket maintains alignment between motor, suspension and cone. Stamped steel can be strong and economical; cast aluminum provides rigidity and ventilation with complex shapes. A rigid basket cannot compensate for a flexible mounting baffle.
Terminals
Spring, push, set-screw and direct-lead terminals connect the voice coil to the system. They must accept the intended conductor, remain tight under vibration and stay insulated. A high-current terminal is only as good as the internal lead and joint.
Tinsel leads
Flexible tinsel leads carry current from stationary terminals to the moving coil. They may be woven into the spider or routed across it. Poor geometry can cause slap, fatigue or open circuits; excessive adhesive can create a new stress point.
Adhesives and joints
Cone-to-coil, surround-to-cone, spider-to-former and suspension-to-frame joints endure heat and cyclic load. Discoloration, separation, loose stitching or shifted parts are warning signs. Many dramatic failures begin at a bond line.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does a larger surround always mean more Xmax?
No. Coil geometry, spider travel, gap and clearances also limit excursion.
Is a cast basket always better?
It often improves rigidity, but design and mounting remain decisive.
Why do tinsel leads slap?
Routing, excursion or insufficient restraint can let them strike the cone or spider.
Can a loose dust cap make noise?
Yes. A separated edge can buzz strongly at certain frequencies.
Do oversized terminals improve sound?
Not by themselves; secure low-resistance connection is the goal.
