What Frequencies Do Car Subwoofers Actually Reproduce?
A subwoofer may produce measurable output over a very wide span, but its useful range is defined by distortion, excursion, enclosure behavior, localization and how it integrates with the front speakers. Printed endpoints do not establish the best operating band.
Infrasonic content below 20 Hz
Below the conventional audible boundary, perception increasingly includes pressure and tactile motion. Reproducing this region requires enormous displacement and enclosure control. Ported systems can unload below tuning, making a suitable infrasonic filter important.

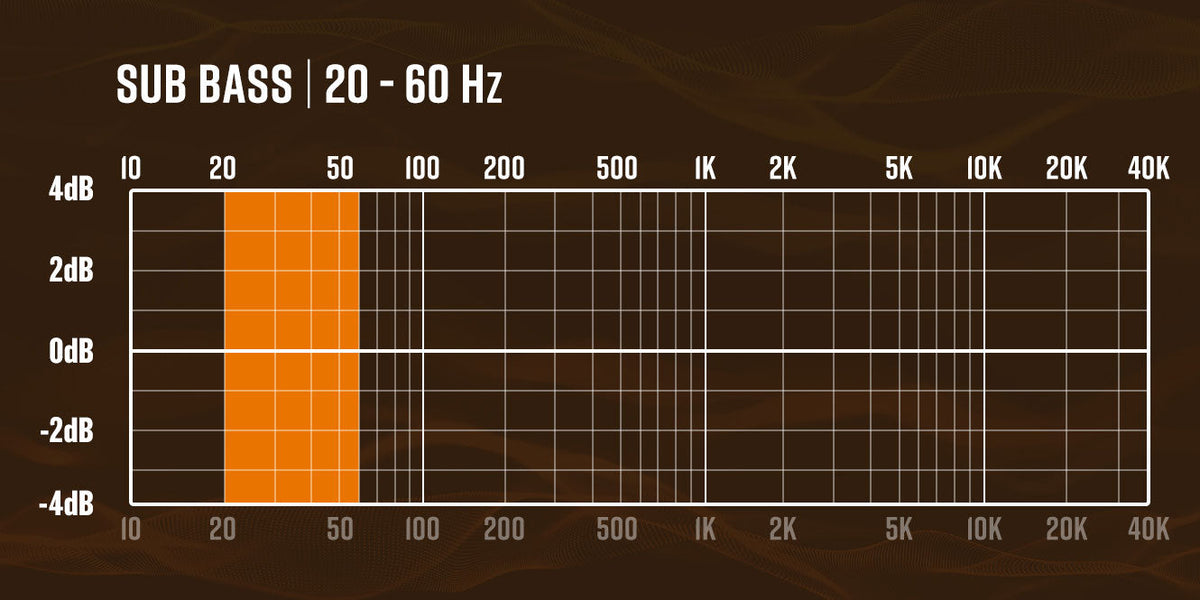

Deep sub-bass: roughly 20–40 Hz
This region supplies weight, room-shaking effects and the lowest musical fundamentals. Vehicle cabin gain may reinforce it, but output requires substantial excursion. A system that is loud at 45 Hz is not automatically strong at 25 Hz.
Primary sub-bass: roughly 40–60 Hz
Much of the powerful bass heard in modern music lives here. Many daily systems achieve their strongest combination of efficiency, impact and extension in this range. Enclosure tuning often influences the response strongly.
Upper bass: roughly 60–100 Hz
Kick weight and the transition to door midbass occur here. Strong output is easier, but rear-mounted bass can become localizable if distortion, delay or upper-frequency leakage is excessive.
Above 100 Hz
A large subwoofer can generate output here, but cone behavior, inductance and location often make it a poor substitute for front midbass. The goal is usually a clean handoff before the subwoofer announces its physical location.
Cabin gain and vehicle size
A vehicle behaves as a pressure vessel at sufficiently low frequencies. Its dimensions and leakage influence low-frequency reinforcement. Smaller cabins often begin reinforcing at higher frequencies, but real results depend on location, openings and construction.
Choose range as a system
Set the low boundary from enclosure and excursion limits. Set the upper boundary from front-speaker capability, localization and measured summation. Apply slope, delay and polarity as part of the same decision.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Is 20–80 Hz always correct?
It is a common working range, not a universal prescription.
Can a subwoofer play 150 Hz?
Many can, but localization and integration may make it undesirable.
Why does a ported sub lose control below tuning?
The port no longer provides useful acoustic loading and cone excursion can rise rapidly.
Does cabin gain create free bass?
It reinforces low frequencies, but driver displacement and system limits still apply.
What sets the lowest safe frequency?
Driver excursion, enclosure alignment, power and the chosen infrasonic filter.
