OEM Direct-Fit Replacement Speakers for Unusual Factory Locations
Factory speakers are often not standard round drivers bolted to flat metal. They may be molded into deep plastic modules with proprietary tabs, weather shields and connectors. A direct-fit replacement preserves those packaging decisions while improving the transducer.
Why factory openings are unusual
Manufacturers design doors, dashboards and trim as assemblies. Three-bolt patterns, oval frames, integrated spacers and offset cones may clear glass or ducts. Removing the factory module can leave a hole no universal basket seals correctly.

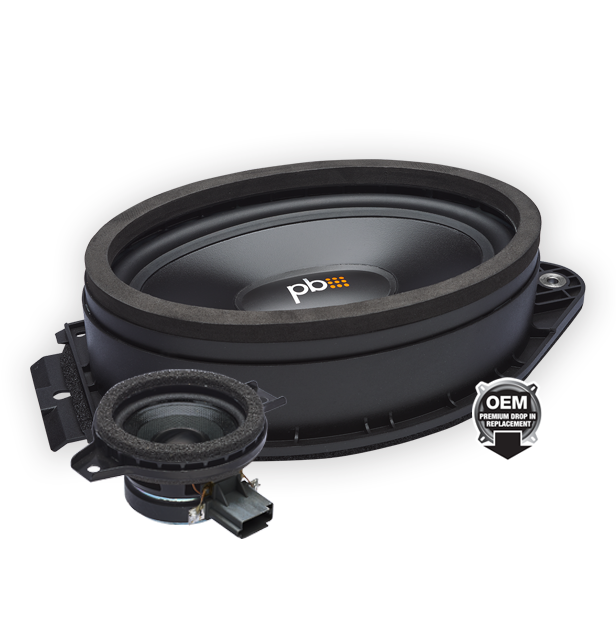

What direct-fit means
A true direct-fit model aims to match bolt pattern, depth, connector and grille clearance with minimal fabrication. Lines such as PowerBass OEM Direct Fit illustrate the category. Vehicle and audio-system compatibility must still be verified by year, trim and amplified option.
Electrical compatibility
Factory impedance may be two, three, four or another value, and an OEM amplifier may include filtering and EQ tailored to the original speaker. Installing a higher-impedance replacement can reduce output; a lower load may stress the amplifier.
Mechanical sealing
The adapter must seal the front wave from the rear wave. A speaker that bolts in but leaks around the perimeter can lose midbass dramatically. Reuse or replace foam gaskets and preserve factory water management.
Depth and excursion clearance
Check window travel, regulator cables, door braces, grille height and connector location. Include cone and surround movement—not just static basket depth. Test the window before reinstalling trim.
Integrated tweeters and multiway modules
Some factory locations contain coaxial modules, separate tweeters or shared enclosures. Replacing only one element may disrupt the intended crossover. Identify every channel and filter before selecting parts.
When an adapter is better
A rigid custom adapter can allow a higher-performance universal speaker and improved mounting. It becomes the better choice when fabrication quality, sealing and clearance can equal or exceed the factory module.
Installation example
For a three-bolt 6x9-style door module, compare direct-fit impedance and connector first. Add damping around the metal, a gasket behind the basket and a foam coupling ring to the grille. Verify polarity, window motion and frequency content before closing the door.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does direct-fit guarantee plug-and-play?
Not for every trim or amplified system; verify exact compatibility.
Can I use a universal speaker with an adapter?
Yes, if the adapter is rigid, sealed and clears moving parts.
Why did replacement speakers get quieter?
Impedance or sensitivity may differ from the factory driver.
Should factory connectors be cut?
Adapters preserve reversibility and reduce wiring mistakes where available.
Do factory filters remain active?
Usually yes unless the OEM amplifier or wiring is bypassed.
