Speaker Phase Plugs vs. Dust Caps: What They Do and Why Midranges Use Them

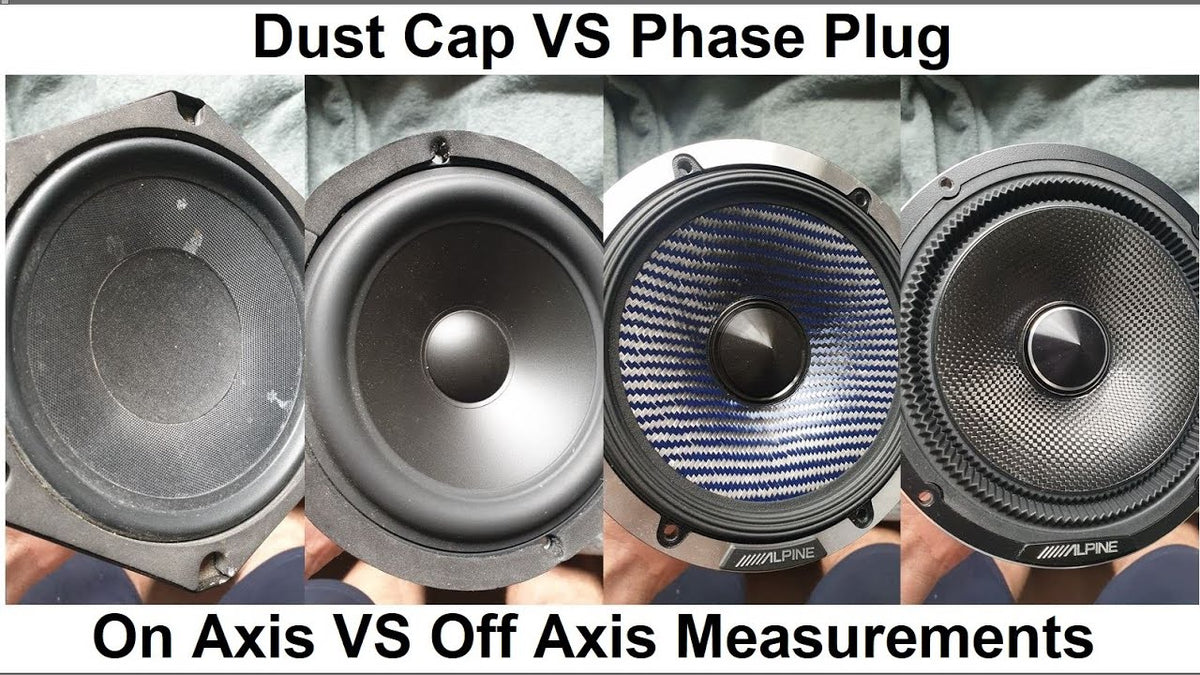

The object at the center of a cone may move with the cone, remain stationary or exist mainly as a protective cap. Those arrangements look similar in photographs but affect cooling, pressure, dispersion and contamination very differently.
The conventional dust cap
A dust cap bonds to the cone and moves with it. It protects the coil gap, can reinforce the cone center and contributes to radiating area and moving mass. Shape and material influence breakup and appearance.
A true stationary phase plug
A phase plug is fixed to the pole structure while the cone and coil move around it. The annular clearance must remain precise through excursion. It can guide wave propagation, reduce the trapped air cavity beneath a cap and expose the motor to airflow.
Cooling advantages
Air can move along the plug and coil region instead of compressing beneath a sealed cap. Conductive metal plugs may also participate in heat transfer. Cooling benefit depends on the entire vent path, not simply the presence of a metal bullet.
Acoustic behavior
At upper frequencies, sound from different cone areas travels different distances. A properly shaped phase plug can influence those paths and dispersion. It does not guarantee ruler-flat response; cone geometry and breakup remain.
Moving bullets are different
Some drivers use a bullet-shaped dust cap bonded to the cone. It moves and adds mass, so it is not a stationary phase plug even if marketing language is loose. Inspect construction rather than shape.
Contamination and weather
The open annular space around a phase plug can admit dust, metal particles or moisture if protection is poor. Conventional dust caps offer stronger sealing. Door installations need particular care with water management.
Mechanical clearance
Rocking from an uneven baffle, damaged spider or excessive excursion can bring the moving assembly near the stationary plug. Scraping is not normal. A rigid mounting surface helps maintain alignment.
Which is better
Phase plugs can support cooling and upper-frequency behavior in a dedicated midrange. Dust caps can provide protection, reinforcement and predictable construction. The driver’s measured performance and application decide—not the visual drama of a bullet center.
Installation and testing checklist
| Checkpoint | What to verify |
|---|---|
| Compatibility | Source output type, receiving input type and allowable voltage range match. |
| Routing | Signal wiring is protected, secured and separated from likely interference sources. |
| Termination | Connectors fit firmly without excessive force; no cable weight hangs from a jack. |
| Signal | Every channel is identified, clean and unclipped at the intended source level. |
| Final test | Polarity, channel assignment, noise floor and operation are verified with the vehicle running. |
Frequently asked questions
Does every bullet center stay still?
No. Many are moving dust caps.
Does a phase plug eliminate phase problems?
No. It shapes local wave behavior but does not solve system timing.
Can water damage a phase-plug driver?
Yes if the installation exposes the gap and motor to moisture.
Why do many pro mids use plugs?
Cooling and upper-band radiation are valuable in high-output use.
Is scraping around the plug normal?
No. It indicates alignment, clearance or damage concerns.
